Fiber Patch Cord & Pigtail: Types, Termination & Selection Guide

Q: What is the difference between a fiber patch cord and a pigtail?

A fiber patch cord has connectors on both ends and is used for equipment-to-equipment or patch panel connections. A pigtail has a connector on one end and bare fiber on the other, designed for fusion splicing to distribution cables inside splice closures or ODFs.

Q: How do I choose the right fiber patch cord for a data center?

Match fiber type to link distance (OM4 for 40G SR4 at 100m, OS2 for longer links), match connector types (LC duplex for 10G/25G, MPO for 40G/100G/400G), select jacket rating (LSZH for standard indoor), verify polarity method (Type B for MPO), and specify 500+ mating cycle connectors for high-move-add-change environments.

Q: What is the typical insertion loss of a quality fiber patch cord?

Quality single-mode patch cords (SC/UPC or LC/UPC) have IL ≤0.15 dB typical. SC/APC patch cords have ≤0.20 dB typical. Multimode OM3/OM4 patch cords have ≤0.30 dB typical. Always specify factory-tested cords with individual IL/RL test reports.

Q: APC vs UPC — when should I use each?

UPC (return loss ≥50 dB) is sufficient for digital Ethernet and data centers. APC (return loss ≥60 dB) is mandatory for CATV, DWDM, RFoG, and FTTH ONT applications where back-reflections degrade signal quality. APC reduces return loss by 10-20 dB compared to UPC.

Q: How do I clean fiber patch cord connectors properly?

Follow a three-step procedure per IEC 61300-3-35: Step 1 — Dry clean with a one-click cleaner or cassette cleaner. Step 2 — If contamination persists, wet-dry clean with lint-free wipes and ≥94% isopropyl alcohol. Step 3 — Inspect with a 200× or 400× fiber microscope to verify endface cleanliness before mating.

Q: What is the maximum length for fiber patch cords?

Single-mode OS2 patch cords can reach up to 10 km at 10G/100G/400G. Multimode OM4 is limited to ≤400m at 10G, ≤150m at 40G, and ≤100m at 100G per IEEE 802.3. Always add 15% margin for routing slack when ordering.

Q: Can I mix different connector types (e.g., LC to SC) in one patch cord?

Yes — these are hybrid patch cords. Common combinations include LC-to-SC (SFP+ to FTTH ODF), LC-to-FC (switch to OTDR), and MPO-to-LC fan-out (40G/100G breakout). Total insertion loss is the sum of both connector losses, so verify your optical power budget accommodates the hybrid configuration.

Q: What are VSFF connectors (SN, CS, MDC, MMC) and when should I choose them?

VSFF (Very Small Form Factor) connectors keep the 1.25 mm ferrule of LC but shrink the footprint for hyperscale data centers and 800G/1.6T Ethernet. CS offers about 40% higher density than LC (about 144 vs 96 duplex ports per 1U), while SN and MDC deliver roughly three times the density with up to four connectors per QSFP-DD module for 4x100G breakout; MMC extends VSFF to multi-fiber trunks with up to six times the density of a 12-fiber MPO. Choose CS for 400G dual-WDM links, SN or MDC for breakout applications (SN and MDC are not intermateable), and MMC for high-density parallel optics.

Author : goodvin

Update time : 2026-06-09 09:43:34

Definition: A fiber patch cord is a pre-terminated optical cable with connectors on both ends for equipment-to-equipment or patch panel connections. A fiber pigtail is a cable with a connector on one end and bare fiber on the other, designed for fusion splicing to distribution cables inside splice closures or ODFs — together forming the critical 'last meter' of any optical network. [Source: IEC 61754 series]

1. Introduction: The Critical Last Meter
2. Fiber Patch Cord vs Fiber Pigtail: What's the Difference?
3. Fiber Patch Cord Types (Application & Construction)
4. Connector Types & Polish (LC/SC/FC/MPO, PC/UPC/APC)
5. Fiber Pigtail Types & Specifications
6. VSFF Connectors
7.Critical Specifications (IL/RL, Fiber Performance)
8.Common Failures & How to Avoid Them
9. OPELINK Manufacturing Range
10. Conclusion & Key Takeaways

Introduction

This article is a selection guide for Fiber patch cords and pigtails, which systematically introduces the definitions and differences between the two, different application environments and construction types, specifications and parameters of single core and multi-core Fiber Optic connectors (LC/SC/FC/MPO/SN/CS/MMC, etc.) and polishing methods (PC/UPC/APC), key performance indicators (insertion loss and return loss), and provides common fault avoidance methods and quick reference for selection.
Fiber Patch Cord & Pigtail: Types, Termination & Selection Guide

Overview: The Critical Last Meter

Fiber patch cords and pigtails are the "last meter" components that connect active equipment (switches, routers, OLTs, ONTs) to the fiber infrastructure. Despite representing less than 1% of total fiber infrastructure cost, they account for 30-40% of all fiber network faults in enterprise and data center environments. [Source: Industry aggregate analysis]
According to Fluke Networks' 2023 Data Center Fiber Survey of 847 data centers worldwide, improper patch cord management and connector contamination caused 67% of network failures. The lesson: never compromise on patch cord quality.[Source: Fluke Networks, 2023]
"A single contaminated fiber connector endface — invisible to the naked eye — can introduce 1-5 dB of insertion loss, causing complete link failure in high-speed Ethernet. This is why IEC 61300-3-35 endface inspection standards exist and must be enforced at every termination." — Fluke Networks, Fiber Testing Best Practices 2023*

Fiber Patch Cord vs Fiber Pigtail: What's the Difference?

Feature	Fiber Patch Cord	Fiber Pigtail
Definition	Pre-terminated on both ends	Pre-terminated on one end; other end is bare fiber
Use	Equipment-to-equipment, patch panel connections	Fusion splice to distribution cables inside enclosures
Connector Types	Same connector on both ends (e.g., LC-LC, SC-SC)	Any connector on terminated end; bare fiber on splice end
Typical Length	0.5m to 30m (indoor)	0.5m to 3m (enclosure splice)
Application	Patch panels, fiber frames, equipment rack interconnects	Splice closures, ODF (Optical Distribution Frame) termination
Reusability	Fully reusable	Typically single-use (spliced)
Installation	Plug-and-play	Requires fusion splice + splice tray
Cost	Higher (two connectors)	Lower (one connector)
Loss Performance	Factory-tested IL ≤ 0.25 dB typical	Factory-tested IL ≤ 0.15 dB typical (splice loss 0.05-0.1 dB)

Fiber Patch Cord Types

By Application Environment

Type	Standard	Application	Jacket	Key Feature
OFNR	UL 1666	Indoor vertical riser (floor-to-floor)	PVC	Non-conductive, non-plenum
OFNP	UL 910	Indoor plenum spaces (air handling)	PVDF	Fire-rated, no toxic fumes
LSZH	IEC 60332	Indoor, public buildings, ships	LSZH compound	Low smoke, zero halogen
PVC	General	Indoor, controlled environments	Standard PVC	Economical, flexible
Armored	Indoor/interlocked	Industrial, high-traffic areas	Interlocked steel armor	Crush and impact resistant
Outdoor	UV-resistant	Outdoor termination points	PE, UV-stable	UV and weather resistant

By Construction Type

1. Simplex Patch Cord
.Single fiber, single connector on each end
.Used for: single-fiber connections, FTTH ONT, 1G SFP connections
.Diameter: 1.6mm, 2.0mm, or 3.0mm jacket
2. Duplex Patch Cord
.Two fibers, two connectors on each end (zipcord or round)
.Used for: Ethernet (Tx/Rx pairs), Fibre Channel, bidirectional (BiDi)
.Diameter: 1.6×3.4mm (zipcord) or 2.0-3.0mm round
3. Multi-Fiber MPO/MTP Cables
.8, 12, 16, 24, 48 fibers in one cable
.MPO (Megabit Push-On) connector on both ends
.Used for: 40G/100G/400G Ethernet parallel optics, data center structured cabling
.Per IEC 61754-7 and TIA-568.3-D
4. Mode Conditioning Patch Cord (MCP)
.Combines MM and SM fiber in one cord
.Used for: 10GBASE-LRM (1300nm) over legacy OM1/OM2 multimode
.Eliminates DMD (Differential Mode Delay) issues

Connector Types: Complete Guide

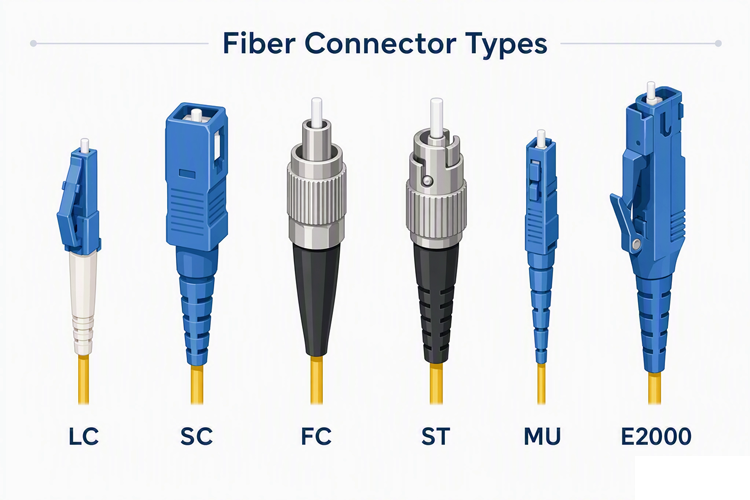

Single-Fiber Connectors

Connector	Full Name	Key Feature	Typical Use	IL (Typical)	RL	Standard
LC	Lucent Connector	Small form factor (1.25mm ferrule)	Data centers, SFP+	≤ 0.15 dB	≥ 45 dB	IEC 61754-20
SC	Subscriber Connector	Snap-in, push-pull	FTTH, telecom	≤ 0.15 dB	≥ 45 dB	IEC 61754-4
FC	Ferrule Connector	Screw-type, secure	Test equipment, CATV	≤ 0.15 dB	≥ 45 dB	IEC 61754-13
ST	Straight Tip	Bayonet twist-lock	Legacy LAN, military	≤ 0.25 dB	≥ 40 dB	IEC 61754-2
MU	Mini-UUPC	Small form factor (1.25mm ferrule)	High-density, telecom	≤ 0.15 dB	≥ 45 dB	IEC 61754-6
E2000	E-2000	Spring-loaded shutter	Medical, defense	≤ 0.10 dB	≥ 55 dB	IEC 61754-15

Ferrule Material: Zirconia ceramic (standard, ≥ 95% of market), Stainless Steel (industrial), Plastic (economy, not recommended)

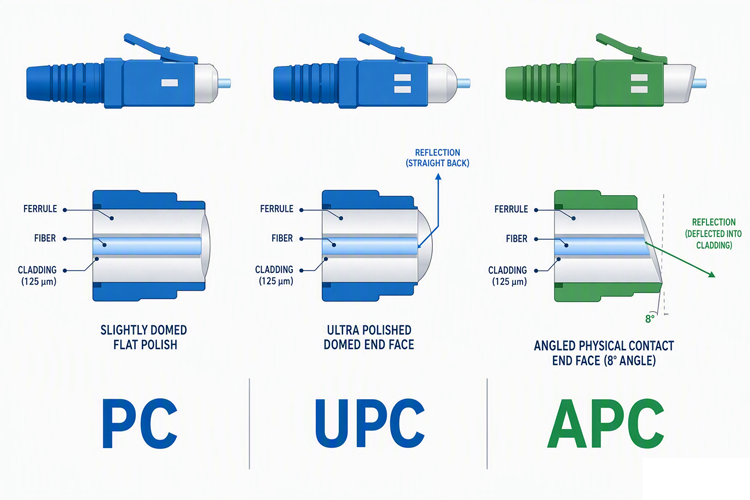

Polish Types: PC, APC, UPC

Polish	Color	Return Loss	Application
PC (Physical Contact)	Beige/Blue	≥ 40 dB	Multimode, legacy
UPC (Ultra Physical Contact)	Blue	≥ 50 dB	Data centers, GPON
APC (Angled Physical Contact)	Green	≥ 60 dB	CATV, DWDM, RFoG

"APC connectors reduce return loss by 10-20 dB compared to UPC, which is critical for analog video (CATV), radio over fiber (RoF), and DWDM systems. In GPON FTTH networks, mixing APC and UPC causes 3-8 dB of unnecessary loss — always verify your OLT and ONT connector types before ordering." — Broadband Forum TR-101, 2022*
PC, APC, UPC

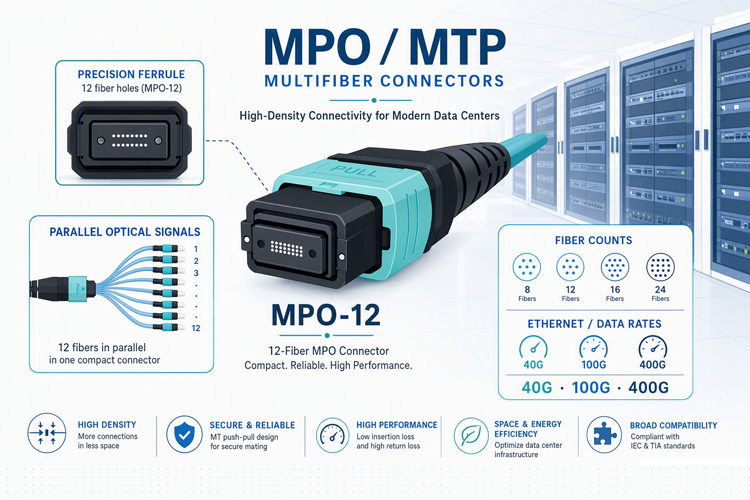

MPO/MTP Connectors (Multi-Fiber)

Type	Fiber Count	Polarity	Key Application	Standard
MPO-8	8 fibers	Type A/B/C	40G QSFP+ (SR4), 100G SR4	IEC 61754-7
MPO-12	12 fibers	Type A/B/C	40G QSFP+ (SR4), 12F parallel	IEC 61754-7
MPO-16	16 fibers	Type A/B	100G SR4 (16F used), 400G SR8	IEC 61754-7
MPO-24	24 fibers	Type A/B/C	400G SR4.2, 100G SR4 (12F used)	IEC 61754-7

Polarity Management (TIA-568.3-D):

.Type A: Key-up to key-down (straight-through)
.Type B: Key-up to key-up (reversed fiber sequence)
.Type C: Adjacent-pair flip (fibers 1↔2, 3↔4...)
MPO/MTP Connectors

VSFF Connectors: SN, CS, MDC and MMC for High-Density Data Centers

Very Small Form Factor (VSFF) connectors are the next generation of fiber-optic interfaces engineered for hyperscale data centers, AI clusters and 800G/1.6T Ethernet. They keep the proven 1.25 mm ceramic ferrule of the LC connector while shrinking the footprint, so insertion loss and return loss stay LC-class but far more ports fit on the same transceiver faceplate and 1U patch panel. Duplex VSFF connectors (CS, SN, MDC) act as a denser LC for lane breakout, while multi-fiber VSFF connectors (MMC, SN-MT) act as a denser MPO/MTP for parallel-optics trunks.

CS Connector (Senko)

The CS connector was introduced by Senko in 2018 as the first VSFF duplex connector beyond LC. It uses 1.25 mm ferrules with the two fibers spaced at 3.8 mm (versus 6.25 mm for LC) in a 7.85 x 5.3 mm housing, delivering roughly 40% higher density — about 144 duplex ports per 1U patch panel versus 96 for the highest-density LC panels. A push/pull tab enables tool-free insertion and removal, and UPC and APC versions are available for both single-mode and multimode fiber. Two CS connectors fit in one QSFP-DD module (Twin CS), supporting 400G dual-WDM links such as 400G-FR4 / 2x200G with four wavelengths per fiber, which reduces transceiver cost compared with a single LC (eight wavelengths per fiber).

SN Connector (Senko)

The SN connector is Senko's newer, denser VSFF duplex design. It stacks the two fibers vertically at 3.1 mm pitch with a connector width of only 3.85 mm, reaching about three times the port density of LC. Up to four SN connectors fit in a single QSFP-DD or OSFP module, making it the natural choice for 4x100G breakout from a 400G port without fan-out cables or transition cassettes. The push-pull boot and field-reversible polarity simplify handling in dense panels.

MDC Connector (US Conec)

The MDC (Miniature Duplex Connector) is US Conec's VSFF answer to the SN. It uses the same proven 1.25 mm ferrule with vertically positioned fibers and delivers roughly three times the density of LC; four MDC connectors fit in a QSFP-DD footprint (versus two LC). A push-pull latch and tool-less polarity reconfiguration support dense breakout deployments. Note that MDC and SN are not intermateable — an SN cable cannot plug into an MDC adapter or vice versa, so the choice is effectively an ecosystem decision.

MMC Connector (US Conec)

The MMC (Multi-fiber Miniature Connector) extends VSFF to parallel optics. It uses double-layer / multi-row ferrule arrays (for example 24 fibers in a compact endface) to deliver up to six times the density of a conventional 12-fiber MPO while reducing size by about one third, with low connection loss maintained through high-precision molding. MMC pairs Thin MT (TMT) ferrule technology with MT/MT-16 alignment and a DirectConec push-pull boot for easy insertion, extraction and polarity management. It targets structured cabling, high-fiber-count data center interconnects and high-bandwidth parallel links as an alternative to MTP/MPO trunks.

VSFF Duplex Comparison Table

Parameter	LC	CS	SN	MDC
Ferrule	1.25 mm	1.25 mm	1.25 mm	1.25 mm
Fiber pitch	6.25 mm	3.8 mm	3.1 mm (vertical)	vertical
Housing width	~13 mm	7.85 mm	3.85 mm	below SN
Density vs LC	1x	~1.4x	~3x	~3x
Duplex ports per 1U	~96	~144	up to 192	up to 216
Connectors per QSFP-DD	1	2 (Twin CS)	4	4
Vendor	Standard	Senko	Senko	US Conec
Intermateability	—	CS	SN (not MDC)	MDC (not SN)

Where VSFF Makes Sense

CS is primarily used to optimize wavelength density in single-mode CWDM links, with Twin CS supporting 400G dual-WDM in one QSFP-DD module. SN and MDC excel at 4x100G breakout from 400G ports in hyperscale back-end fabrics, with up to 128 finger-operable ports per height unit in a 19-inch panel (versus 96 for LC duplex). MMC (together with SN-MT) addresses 800G/1.6T parallel trunks that would otherwise use MPO/MTP. Because VSFF keeps the same 1.25 mm ferrule, optical performance is LC-class; however, test instruments may lack CS/SN/MDC interfaces, so Tier-1 loss testing may require CS/SN/MDC-to-LC breakout cords. Polarity management, cleaning and endface inspection per IEC 61300-3-35 follow the same discipline as LC and MPO.

Fiber Pigtail Types

Type	Fiber	Application	Key Use
G.657.A1 Pigtail	SM 9/125	FTTH, premises	Tight bends, ONT termination
G.657.A2 Pigtail	SM 9/125	FTTH, complex routing	Ultra-tight bends
OM3 Pigtail	MM 50/125	Data center, LAN	VCSEL-optimized
OM4 Pigtail	MM 50/125	High-speed data center	40G/100G Ethernet
G.652.D Pigtail	SM 9/125	Telecom, access networks	Standard single-mode
Splicing Pigtail (0.9mm)	Any	Enclosure splicing	0.9mm semi-tight buffer
Fan-Out Pigtail	12F/24F ribbon	Mass fusion splicing	Ribbon fiber termination

Standard Pigtail Length: 1.0m, 1.5m, 2.0m (custom lengths available)

Critical Specifications

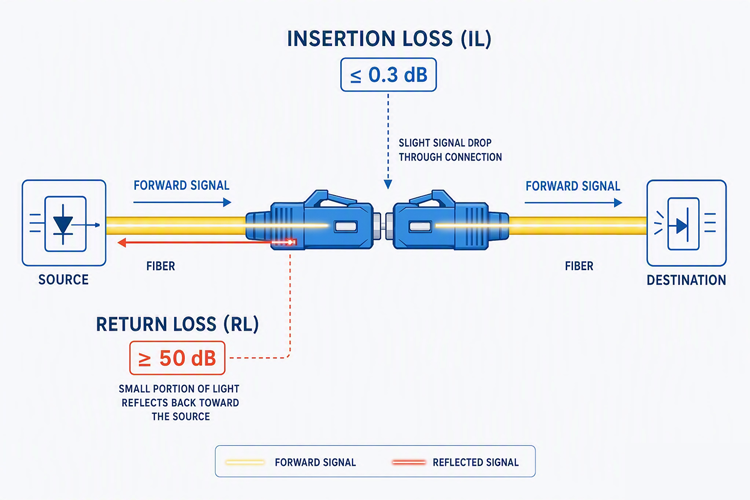

Insertion Loss (IL) & Return Loss (RL)

Per IEC 61300-3-4 (insertion loss) and IEC 61300-3-6 (return loss):

Connector Type	IL (Max)	IL (Typical)	RL (Min)
LC/UPC	0.30 dB	0.10-0.15 dB	45 dB
SC/UPC	0.30 dB	0.10-0.15 dB	45 dB
FC/UPC	0.30 dB	0.10-0.15 dB	45 dB
LC/APC	0.30 dB	0.10-0.15 dB	60 dB
SC/APC	0.30 dB	0.10-0.15 dB	60 dB
MPO (12F)	0.50 dB	0.15-0.25 dB	30 dB

"Per TIA-568.3-D, the maximum channel insertion loss for an OM4 multimode link at 40G Ethernet (100m) is 1.9 dB. With two LC connectors and fusion splices, a single connector loss of 0.30 dB can quickly consume your optical budget. Always use factory-tested patch cords with IL ≤ 0.15 dB for high-speed links." — TIA-568.3-D (2020)*

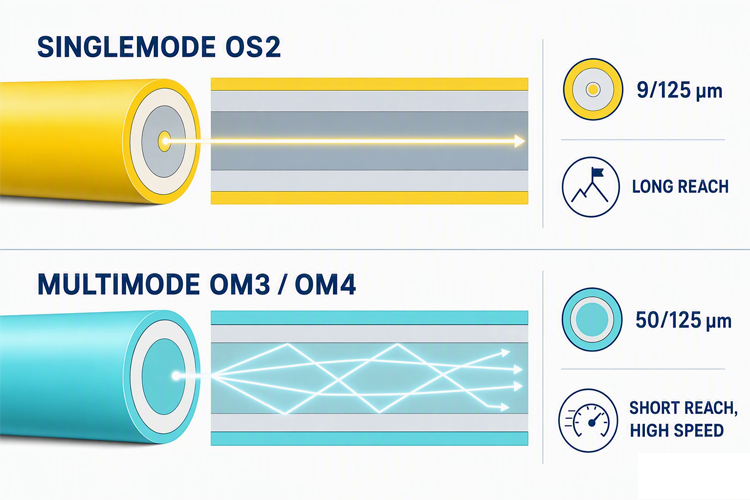

Fiber Performance

Fiber Type	Wavelength	Attenuation	Bandwidth	Standard
G.652.D (single-mode fiber)	1310/1550nm	0.35/0.22 dB/km	N/A (dispersion-limited)	ITU-T G.652
G.657.A1 (single-mode fiber)	1310/1550nm	0.35/0.22 dB/km	Same	ITU-T G.657
G.657.A2 (single-mode fiber)	1310/1550nm	0.35/0.22 dB/km	Same	ITU-T G.657
OM3 (multimode fiber)	850nm	3.5 dB/km	2000 MHz·km	IEC 60793-2-10
OM4 (multimode fiber)	850nm	3.5 dB/km	4700 MHz·km	IEC 60793-2-10
OM5 (multimode fiber)	850-950nm	3.0 dB/km	2800 MHz·km	IEC 60793-2-10

How to Avoid Common Failures

Failure 1: Connector Contamination (Most Common)

Solution: Always use protective caps when connectors are not mated. Inspect and clean every connector before mating using:

Fiber optic cleaning wipes (≥ 94% isopropyl alcohol)
One-click cleaner (for LC/SC/FC)
Stick cleaners for MT/MPO ferrules
Verify with fiber optic microscope (per IEC 61300-3-35)

Failure 2: Wrong Polish Type

Solution: Verify OLT/ONT and SFP+ module specs. Common mix-ups:

FTTH ONT: typically SC/APC (green)
GPON OLT: typically SC/UPC or SC/APC
Data center switch SFP+: typically LC/UPC (blue)
40G/100G QSFP+ parallel optics: MPO/UPC

Failure 3: Excessive Bend Radius

Solution: Minimum bend radius for tight-buffered patch cords:

SM G.657.A1: ≥ 10mm
SM G.657.A2: ≥ 7.5mm
MM OM3/OM4: ≥ 15mm (under no tension)

Conclusion: Key Data-Driven Takeaways

1. Fiber patch cords and pigtails represent less than 1% of total fiber infrastructure cost, yet they are responsible for 30–40% of all network faults in enterprise and data center environments. Prioritizing high-quality, factory-tested components is the highest-ROI investment you can make. [Source: Industry aggregate analysis]
2. Connector contamination is the #1 root cause: improper patch cord management and dirty connector endfaces cause 67% of network failures. Always enforce IEC 61300-3-35 endface inspection using a 200× or 400× fiber microscope before every mating. [Source: Fluke Networks 2023 Data Center Fiber Survey]
3. Per TIA-568.3-D, the maximum OM4 channel insertion loss budget at 40G Ethernet (100m) is 1.9 dB. With a single connector loss of 0.30 dB (max), just two connectors can consume 0.60 dB — nearly one-third of your budget. Specify factory-tested patch cords with IL ≤ 0.15 dB typical to preserve optical headroom for high-speed links. [Source: TIA-568.3-D (2020)]
4. APC connectors deliver 10–20 dB better return loss than UPC (≥60 dB vs. ≥50 dB), making them mandatory for CATV, DWDM, and RFoG systems where back-reflections degrade signal quality. For digital Ethernet and data center applications, UPC offers sufficient performance with superior mating durability. [Source: IEC 61755-3-2, Broadband Forum TR-101]
5. Match your connector, polish type, fiber grade, and jacket rating to the specific application environment — data center (LC/UPC, OM4, LSZH), FTTH (SC/APC, G.657.A2, LSZH), or CATV (SC/APC, G.652.D, outdoor PE) — and always request individual IL/RL test reports with every shipment to ensure compliance with IEC 61300-3-4 and IEC 61300-3-6. [Source: IEC 61300 series]

Sources and References

For Fiber Patch Cords

[1] Connector type matches equipment SFP (LC/SC/FC)
[2] Polish type matches network: UPC (Ethernet) or APC (CATV/DWDM)
[3] Fiber type matches infrastructure: OS2 (SM), OM3/OM4/OM5 (MM)
[4] Length: measure actual path with 10% margin; don't over-order
[5] Jacket type: LSZH (public buildings), OFNP (plenum), PVC (standard rack)
[6] IL ≤ 0.15 dB per connector (verify on test report)
[7] RL ≥ 45 dB (UPC) or ≥ 60 dB (APC) on test report
[8] 100% factory inspection per IEC 61300-3-35 (endface geometry)
[9] OTDR trace test available (premium option)
[10] Individual packaging (each cord labeled with ID, IL, RL results)
[11] Fluke/EXFO test report provided with shipment
[12] MOQ: typically 10-100 pcs per type for custom orders

For Fiber Pigtails

[13] Fiber type matches distribution cable
[14] Connector type matches splice closure or ODF adapter
[15] Polish: UPC or APC
[16] Tube diameter: 0.9mm (standard) or 2.0mm (ruggedized)
[17] Color-coded by fiber position (blue/green for fiber 1/2 in duplex)
[18] Strippable: semi-tight buffer for easy splice preparation
[19] Packaging: 12-pack or 24-pack sets
[20] Test report: OTDR trace for each pigtail

OPELINK Patch Cord & Pigtail Manufacturing Range

Patch Cords

Product	Fiber	Connector	Polish	Jacket	MOQ
LC-LC Duplex	OS2/OM3/OM4	LC/UPC or APC	UPC/APC	PVC/LSZH/OFNP	100 pcs
SC-SC Simplex	OS2/OM3/OM4	SC/UPC or APC	UPC/APC	PVC/LSZH/OFNP	100 pcs
SN/PC to SN/PC	OS2/OM3/OM4	UPC or APC	UPC or APC	PVC/LSZH	100 pcs
MPO-12 Trunk	OM3/OM4/OS2	MPO-12 UPC	UPC	LSZH/OFNP	5 pcs
Mode Conditioning	OM3 + SM	SC-LC mixed	UPC	PVC	10 pcs
Armored LC-LC	OS2/OM3/OM4	LC/UPC	UPC	Interlocked armor	100 pcs

Pigtails

Product	Fiber	Connector	Polish	Buffer	MOQ
G.657.A1 Pigtail	SM 9/125	LC/SC/FC	UPC/APC	0.9mm	120 pcs
G.657.A2 Pigtail	SM 9/125	LC/SC/FC	UPC/APC	0.9mm	120 pcs
OM3 Pigtail	MM 50/125	LC/SC	UPC	0.9mm	120 pcs
OM4 Pigtail	MM 50/125	LC/SC	UPC	0.9mm	120 pcs
12F Ribbon Pigtail	OS2	MPO-12	UPC	3.0mm ribbon	5 pcs

Summary Quick Reference

Connector Selection Guide:
  Data Center SFP+ → LC/UPC (blue, 1.25mm ferrule)
  FTTH ONT         → SC/APC (green, 1310/1490/1550nm PON)
  GPON OLT         → SC/UPC or SC/APC (verify SFP type)
  40G/100G Parallel → MPO-12/UPC (12F or 8F key-up/key-down)
  400G SR8          → MPO-16/UPC or MPO-24/UPC
  CATV/RFoG         → SC/APC (green, mandatory for RF systems)
Polish Type:
  Digital Ethernet → UPC (blue) — sufficient
  Analog Video/RF   → APC (green) — mandatory
  DWDM/Coherent     → APC (green) — mandatory
  FTTH GPON         → APC (green) — industry standard
Patch Cord Length Rule:
  Measure the physical path, add 15% margin
  Common lengths: 1m, 2m, 3m, 5m, 10m
  >10m: consider duplex SM for future 40G+ migration
Sources cited: IEC 61300-3-4/3-6/3-35/61754 series, TIA-568.3-D (2020), ITU-T G.652/G.657, IEEE 802.3, Fluke Networks 2023, Broadband Forum TR-101, IEC 60793-2-10, IEC 60332

Frequently Asked Questions

Q1: What is the difference between a fiber patch cord and a pigtail?

A fiber patch cord has connectors on both ends, used to connect active equipment (switches, routers, ONTs) or to connect between distribution panels. A pigtail has a connector on one end and bare fiber on the other, used for fusion splicing to a fiber stub or for direct connection to test equipment. In FTTH, pigtails are typically fusion-spliced to the distribution fiber inside a splice closure, then the connectorized end is plugged into the adapter panel.

Q2: How do I choose the right fiber patch cord for a data center?

For data center selection: (1) match fiber type to link distance — OM4 for 40G SR4 at 100m or 100G SR4 at 100m, single-mode OS2 for longer links; (2) match connector types — LC duplex for 10G/25G server connections, MPO for 40G/100G/400G trunk connections; (3) select jacket rating — LSZH for standard indoor, plenum-rated for raised-floor cooling systems; (4) verify polarity method — Method B (key-up/key-down) for MPO trunk cables; (5) specify 500+ mating cycle connectors for high-move-add-change environments.

Q3: What is the typical insertion loss of a quality fiber patch cord?

Quality single-mode patch cords (SC/UPC or LC/UPC) have insertion loss ≤0.15 dB (typical: 0.05-0.10 dB). SC/APC patch cords have ≤0.20 dB (typical: 0.08-0.15 dB). Multimode OM3/OM4 patch cords have ≤0.30 dB (typical: 0.10-0.20 dB). Factory-tested patch cords with individual test reports (IL and RL values) should be specified for all professional deployments. Budget patch cords with no test data can have insertion loss exceeding 0.5 dB, which is unacceptable in high-speed networks.

Q4: APC vs UPC — When Should I Use Each?

Parameter	UPC (Ultra Physical Contact)	APC (Angled Physical Contact)
Return Loss	≥ 50 dB	≥ 60 dB
Connector Color	Blue	Green
Ferrule Angle	0° (flat, domed)	8° angled
Back Reflection	Higher (≈ -55 dB)	Lower (≈ -65 dB or better)
Best For	Digital Ethernet, GPON OLT, data centers	CATV, DWDM, RFoG, FTTH ONT
Not Recommended For	Analog RF video, DWDM systems	High-mating-cycle data centers (angled ferrule wears faster)
Key Standard	IEC 61755-3-2	IEC 61755-3-2

Rule of thumb: For digital Ethernet (1G/10G/25G/40G/100G), UPC is sufficient and offers better mating durability. For any analog RF application (CATV headend, HFC, RFoG) or DWDM systems operating at channel spacing ≤100 GHz, APC is mandatory — the 10-20 dB improvement in return loss prevents signal degradation caused by back-reflections interfering with the laser source. In FTTH GPON deployments, the industry standard pairs SC/APC at the ONT side with SC/UPC or SC/APC at the OLT side depending on the SFP type. [Source: Broadband Forum TR-101, IEC 61755-3-2]

Q5: How Do I Clean Fiber Patch Cord Connectors Properly?

Proper connector cleaning is the single most effective way to prevent network failures — 67% of all fiber network failures trace back to contaminated connectors. [Source: Fluke Networks, 2023] Follow this three-step cleaning procedure per IEC 61300-3-35:
Step 1 — Dry Cleaning (always first):
Use a one-click cleaner (LC/SC/FC) or cassette cleaner (MPO/MT). Press the connector endface against the cleaning fabric and actuate once. This removes loose dust and debris without leaving residue. For bulkhead (adapter) cleaning, use a stick-type cleaner designed for the connector format.
Step 2 — Wet-Dry Cleaning (if needed):
If dry cleaning is insufficient (visible contamination remains): wipe the endface with a lint-free wipe dampened with ≥94% isopropyl alcohol, then immediately follow with a dry lint-free wipe. Never let alcohol air-dry on the ferrule — it may leave residue. For MPO connectors, use specialized MPO cleaning tools that access all 12/16/24 fibers simultaneously.
Step 3 — Inspection (mandatory):
Verify cleanliness with a fiber inspection microscope (200× or 400× magnification). Per IEC 61300-3-35, the endface must pass zone-based cleanliness criteria for both the core (<25μm diameter) and cladding zones. Recommended tools: Fluke Networks FI-3000 FiberInspector Pro, EXFO FIP-400B, or Viavi P5000i. Always inspect before mating — a single contaminated connector can permanently damage both endfaces.

Q6: What Is the Maximum Length for Fiber Patch Cords?

Fiber Type	Data Rate	Max Distance (per IEEE 802.3)	Practical Patch Cord Limit
OM4 MM 50/125	10G (10GBASE-SR)	400m	≤ 400m
OM4 MM 50/125	40G (40GBASE-SR4)	150m	≤ 150m
OM4 MM 50/125	100G (100GBASE-SR4)	100m	≤ 100m
OM5 MM 50/125	100G (100GBASE-SR4)	150m	≤ 150m
OS2 SM 9/125 (G.652.D)	10G (10GBASE-LR)	10 km	≤ 10 km
OS2 SM 9/125 (G.652.D)	100G (100GBASE-LR4)	10 km	≤ 10 km
OS2 SM 9/125 (G.652.D)	400G (400GBASE-LR8)	10 km	≤ 10 km

Single-mode patch cords can reliably span up to 10 km at 10G/100G/400G due to near-zero modal dispersion and low attenuation (0.22 dB/km at 1550nm). [Source: ITU-T G.652.D, IEEE 802.3] Multimode OM4 patch cords are practical for ≤400m at 10G and ≤100m at 100G. For any run beyond these limits, transition to OS2 single-mode or use structured cabling with fusion-spliced trunk cables instead of long patch cords. Remember to add 15% margin for routing slack when measuring your physical path.

Q7: Can I Mix Different Connector Types (e.g., LC to SC) in One Patch Cord?

Yes — these are called hybrid patch cords (or mode-mixing patch cords). A hybrid patch cord has different connector types on each end, enabling direct connection between equipment or panels with mismatched connector interfaces without requiring an intermediate adapter or coupler. [Source: TIA-568.3-D]
Common hybrid combinations:

Combination	Typical Use Case	Notes
LC to SC	Connecting SFP+ transceiver (LC) to FTTH ODF panel (SC)	Most common hybrid; both ends can be UPC or APC
LC to FC	Connecting data switch to test equipment (OTDR, power meter)	FC threaded coupling provides secure connection for test environments
SC to FC	Patch panel (SC) to legacy CATV equipment (FC)	Common in CATV headend migrations
LC to ST	Modern SFP-based equipment to legacy ST infrastructure	ST bayonet coupling being phased out; use for transition only
MPO to LC fan-out	40G/100G trunk (MPO) breakout to individual 10G/25G LC ports	Fan-out cables; verify polarity (Type A/B/C)
SC/APC to LC/UPC	FTTH ONT (SC/APC) to router SFP (LC/UPC)	Polish mismatch is acceptable in hybrid cords; verify RL budget

Important: When using hybrid patch cords, the total insertion loss is the sum of both connector losses. Always verify that both connectors meet the IL ≤ 0.15 dB typical specification and that the hybrid assembly is factory-tested with individual IL/RL test reports. For MPO-to-LC fan-out cables, ensure polarity matches your transceiver type (Type B is most common for 40GBASE-SR4). [Source: TIA-568.3-D, IEC 61754 series]

Q8: What are VSFF connectors (SN, CS, MDC, MMC) and when should I choose them?

VSFF (Very Small Form Factor) connectors keep the 1.25 mm ferrule of LC but shrink the footprint for hyperscale data centers and 800G/1.6T Ethernet. CS offers about 40% higher density than LC (about 144 vs 96 duplex ports per 1U), while SN and MDC deliver roughly three times the density with up to four connectors per QSFP-DD module for 4x100G breakout; MMC extends VSFF to multi-fiber trunks with up to six times the density of a 12-fiber MPO. Choose CS for 400G dual-WDM links, SN or MDC for breakout applications (SN and MDC are not intermateable), and MMC for high-density parallel optics.

Related Guides

Explore additional OPELINK resources to deepen your understanding of fiber optic connectivity:Fiber Patch Cord Product Catalog — Browse OPELINK's full range of LC, SC, FC, MPO patch cords
Single-Mode Fiber Optic Cable: Complete Technical Guide — Deep dive into G.652.D, G.657.A1/A2 bend-insensitive fibers for FTTH and long-haul networks
Multimode Fiber Cable Types: OM1-OM5 Compared — Side-by-side comparison of OM3, OM4, OM5 for data center 40G/100G/400G applications
Fiber Optic Connector Parts & Accessories — LC, SC, FC, ST connectors, boots, adapters, and termination tooling

Previous : Telecom Fiber Infrastructure Solutions | FTTH, 5G & Rural

Next : Submarine Fiber Cable: Deep Sea Communication Infrastructure Guide
