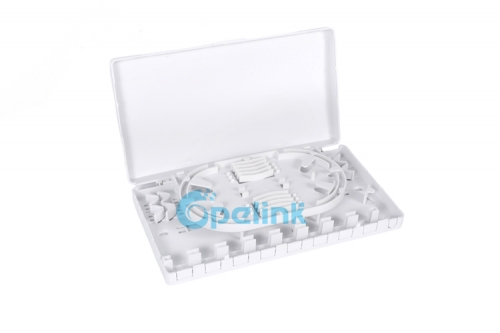

8 Ports fiber faceplate desktop Fiber Optic termination box FTTH Indoor fiber Wall-Mounted Outlet

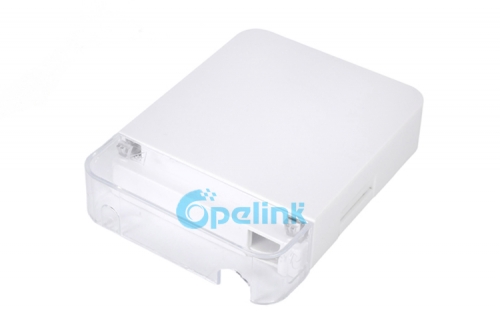

Fiber Optic Wall Outlet Termination Box, Economical Fiber Optic Wall Socket, FTTH WOT Fiber Faceplate

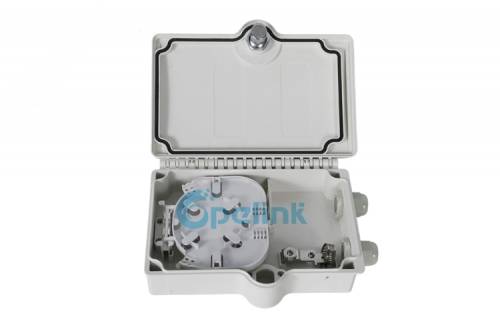

FTTH CTO Distribution Box, Outdoor IP65 Waterproof FTB Fiber Optic Cable Terminal Box

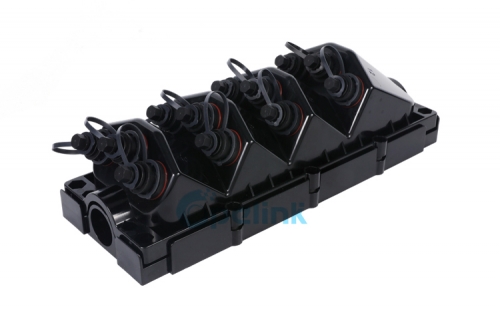

12 Port MST Fiber Distribution Terminal with Pre-Terminated Fiber PLC Splitter

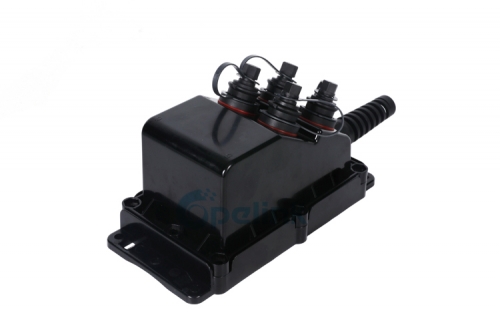

4 Port MST Fiber Distribution Terminal, Multiport Service Terminal Enclosure

8 Port MST Fiber Terminal Box - FTTH Solution with IP-68 Protection

ATB Subscriber Terminal Box, 86-Type FTTH Wall Mounted Fiber Faceplate

Outdoor fiber access termination box, Fiber optic distribution Box

4 Port Fiber Optic Wall Outlet Distribution Box, Match SC/APC-SC/APC Fiber Distribution Patchcord

Fiber Optic Wall Outlet Termination Box, Economical Fiber Optic Wall Socket, FTTH Wall Mounted Fiber Faceplate

Dome Type Fiber Optic Splice Closure, Outdoor Waterproof Vertical Fiber Optic enclosure, Fiber Optic Joint Box For FTTH

Outdoor CTO Box terminal Box network cable distribution Box , China Fiber Optic distribution Box

China manufacturer CTO Box, OTB Optical Termina Box For Ftth Network

Outdoor Waterproof FTTH Fiber Optic Termination Box with Fiber PLC Splitter Blockless Type

FTTH Fiber Optic Lgx Splitter Distribution Box, Termination Distribution Box, Waterproof Fiber Optic Cable Terminal Box, Outdoor Fiber Splitter Box

Outdoor Waterproof Optical Fiber Cable Vertical Dome FOSC Fiber Optic Splice Closure For FTTX

Outdoor Waterproof Optical Fiber Cable Vertical Dome Fiber Optic Splice Closure

FTTH Fiber Optic PLC Splitter Distribution Box, Outdoor IP65 Waterproof Fiber Optic Cable Terminal Box, Termination Distribution Box

Fiber Optic Enclosures & Distribution

Fiber Optic Enclosures & Distribution Equipment for Network Infrastructure

Introduction

Opelink is a leading manufacturer of fiber optic enclosures and distribution equipment, providing comprehensive solutions for fiber network termination, splicing, and management. With 13+ years of experience and ISO 9001:2015 certification, we deliver high-quality fiber management products to customers in over 50 countries.

Fiber optic enclosures and distribution equipment are essential components in any fiber network infrastructure. These devices protect fiber splices, organize cable connections, and provide accessible termination points for network maintenance and expansion. From outdoor splice closures that withstand harsh environmental conditions to indoor ODF frames that manage hundreds of fiber connections, Opelink offers solutions for every application.

Our product range includes fiber optic splice closures for cable splicing and protection, distribution boxes for FTTH and access networks, and optical distribution frames (ODF) for central office and data center applications. All products are designed to international standards and undergo rigorous testing to ensure reliability in the field.

Product Categories

Opelink offers three main categories of fiber optic enclosures and distribution equipment:

1. Fiber Optic Splice Closure

• Protects and seals fiber optic cable splices
• Inline (horizontal) and dome (vertical) designs
• Capacity: 12 to 576 fibers
• IP65 to IP68 protection ratings
• Applications: aerial, duct, direct burial

2. Fiber Optic Distribution Box

• Terminates and distributes fiber to end users
• Wall-mount and pole-mount designs
• Capacity: 8 to 48 fibers (FTTH applications)
• IP54 to IP65 protection ratings
• Applications: FTTH, FTTB, access networks

3. Fiber Optic Distribution Frame (ODF)

• Centralized fiber management and patching
• Rack-mount and wall-mount designs
• Capacity: 12 to 864+ fibers
• Indoor use with organized cable management
• Applications: central offices, data centers, equipment rooms

Comparison: Splice Closure vs Distribution Box vs ODF

Feature	Splice Closure	Distribution Box	ODF Frame
Primary Function	Protect cable splices	Distribute fibers to users	Manage & patch fiber connections
Typical Capacity	12-576 fibers	8-48 fibers	12-864+ fibers
Installation	Outdoor (aerial, duct, burial)	Outdoor/Indoor (wall, pole)	Indoor (rack, wall)
Protection Level	IP65-IP68	IP54-IP65	IP20-IP54
Access Frequency	Rare (emergency only)	Occasional (installations)	Frequent (daily patching)
Splice Type	Fusion & mechanical	Fusion & pre-terminated	Fusion & connectorized
Typical Use Case	Long-haul cable repair	FTTH customer drop	Central office distribution

Key Selection Factors

When choosing fiber optic enclosures and distribution equipment, consider these factors:
.Capacity Requirements: Select equipment with sufficient fiber capacity for current needs plus future expansion. Consider fiber count per cable, number of cables, and splice tray capacity.
.Environmental Conditions: Outdoor installations require IP65+ protection with UV resistance and temperature tolerance (-40°C to +70°C). Indoor installations can use lower IP ratings but may require fire-rated materials.
.Installation Method: Aerial installations need clamp mounts and wind resistance. Duct installations require compact designs. Direct burial needs crush-resistant armored construction. Rack-mount ODFs need standard 19-inch compatibility.
.Access Requirements: Splice closures are accessed rarely for repairs. Distribution boxes are accessed occasionally for new connections. ODFs require frequent access for patching and testing.
.Cable Types: Ensure compatibility with cable types being used - loose tube, tight buffer, ribbon, or drop cables. Verify cable entry port sizes and sealing methods.
.Standards Compliance: Look for products meeting Telcordia GR-771, IEC 61300, and RoHS requirements. ISO 9001 certification from the manufacturer ensures quality processes.

Applications

.Telecommunications Networks: Long-distance fiber routes, metro networks, local loops
.FTTH/FTTB Deployments: Fiber to the home and building distribution points
.Data Centers: Fiber backbone distribution, cross-connects, equipment interconnection
.Enterprise Networks: Campus fiber distribution, building interconnections
.Utility Networks: Power company communication networks, smart grid infrastructure
.Transportation: Railway communication, highway traffic systems, airport networks
.Government & Defense: Secure fiber networks, military communications
.Cable TV Networks: HFC network fiber distribution, headend equipment

FAQ

Q1: What is the difference between a splice closure and a distribution box?

A: A splice closure is designed to protect and seal fiber optic cable splices, typically used for joining long-distance cables or cable repairs. It's accessed rarely and provides IP65-IP68 protection. A distribution box terminates fibers and distributes them to end users, with ports for drop cables. It's accessed more frequently for new connections and has IP54-IP65 protection. Distribution boxes are common in FTTH networks; splice closures are used throughout all fiber networks.

Q2: When should I use an ODF versus a distribution box?

A: Use an ODF (Optical Distribution Frame) in indoor environments where frequent fiber patching, testing, and reconfiguration are needed - such as central offices, data centers, and equipment rooms. ODFs provide organized cable management and easy access to individual fibers. Use distribution boxes at the network edge where fibers are distributed to end users, typically outdoors or in building entry points. Distribution boxes are designed for occasional access during installations.

Q3: What IP rating do I need for outdoor fiber enclosures?

A: For outdoor installations, minimum IP65 is recommended - this provides complete dust protection and protection against water jets. For harsh environments with potential submersion (handholes, flooded areas), use IP68 rated enclosures. For protected outdoor locations (covered pole mounts), IP54 may be sufficient. Always consider your specific environment - temperature extremes, UV exposure, and potential physical damage when selecting protection levels.

Q4: How do I calculate the capacity needed for a splice closure?

A: Calculate capacity based on: (1) Number of cables entering the closure - count all cables including express cables and branch cables; (2) Fiber count per cable - determine the maximum fiber count for each cable type; (3) Splice count - count both cable-to-cable splices and cable-to-drop splices; (4) Future expansion - add 20-30% spare capacity. Example: 2x 144-fiber cables spliced together = 144 splices, plus 4x 12-fiber drops = 48 splices, total 192 splices. Select a 288-fiber closure for adequate space and future capacity.

Q5: What materials are best for fiber optic enclosures?

A: Common materials include: ABS plastic - lightweight, cost-effective, suitable for indoor and protected outdoor use; PC (polycarbonate) - higher impact resistance, UV stable, good for outdoor applications; PP (polypropylene) - chemical resistant, good for industrial environments; Stainless steel - maximum durability, rodent resistant, suitable for harsh environments; Aluminum - lightweight, corrosion resistant, good strength-to-weight ratio. Material choice depends on environmental conditions, budget, and specific application requirements. Opelink offers enclosures in all these materials to match your needs.
