Outdoor fiber access termination box, Fiber optic distribution Box

Outdoor fiber access termination box, Fiber optic distribution Box

Name: Outdoor fiber access termination box, Fiber optic distribution Box
Brand: OPELINK
SKU: Y-FO-FD-014
Availability: InStock
Rating: 5 (1 reviews)

Item No.: Y-FO-FD-014

Brand Name: OPELINK

Place of Origin: Guangdong, China

Product name: Fiber Optic Distribution Box

INQUIRY

Description

Description：

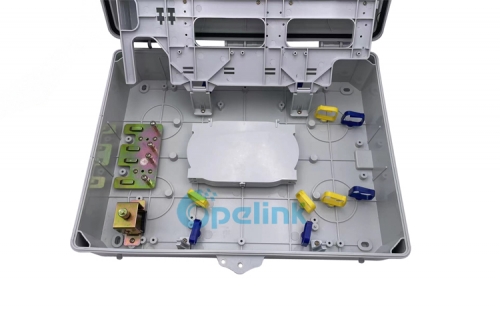

The fiber access termination box has a capacity of accommodating up to 48 subscribers. Its purpose is to serve as the endpoint for connecting the feeder
cable with the drop cable in FTTx network systems. This box combines fiber splicing, splitting, distribution, storage, and cable connection into a single,
secure enclosure.

Features:

1.Efficient cable management.

2.Easy to maintain and extend the capacity.

3.Fiber bend radius control more than 40mm.

4.Water-proof design with IP-66 Protection level.

5.Suitable for the fusion splice or mechanical splice.
6.Manage fibers in a reasonable fiber radius condition.
7. 2 pcs of 1*16 Splitter can be installed as an option.

8. 1 port entrance for feeder cable and 2 ports for drop cable.
9.Integrated with splice cassette and cable management rods.

Application:

Data communications Networks

Widely used in FTTH access network.

Telecommunication Networks

CATV Networks

Local Area Networks, Wide Area Networks

Specification:

Material	Size	Max Capacity	Installation size	Weight
PC+ABS	ABC(mm) 400310120	SC 48 Ports	DE(mm) 255380	2.17kg

Outdoor fiber access termination box, Fiber optic distribution Box
