1. What tools are commonly used for cleaning and maintenance of optical fiber products?
Several tools are commonly used for cleaning fiber optic products, including:

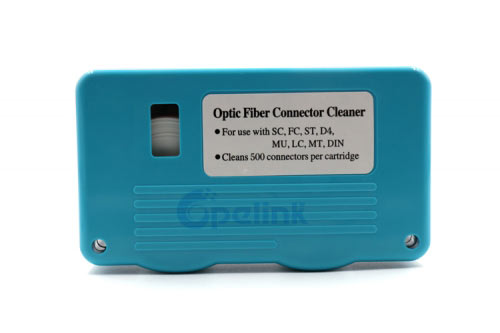

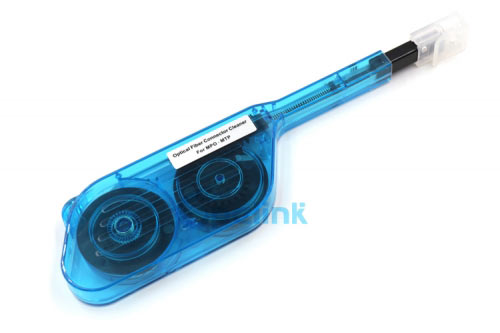

.Cleaning swabs: These small, lint-free swabs are used to clean the end faces of connectors and adapters.
.Fiber optic cleaning wipes: These are disposable wipes that are pre-saturated with a cleaning solution designed specifically for fiber optic components.
.Compressed air: This is used to blow away any dust or debris that may be on the surface of a connector or adapter.
.Alcohol-based solvents: These solvents are often used in conjunction with cleaning swabs to help remove grease or oil from connector surfaces.
.Connector inspection microscopes: These specialized microscopes are used to inspect connector end faces and determine whether they need to be cleaned or replaced.
It's important to use the right combination of tools and cleaning solutions to properly clean fiber optic components without causing damage to them. Regular cleaning and maintenance using these tools can help to ensure optimal performance and longevity of fiber optic products.
2. What are the types of fiber optic testers? There are several types of fiber optic testers, including:
.Optical time-domain reflectometer (OTDR): This tester is used to measure the length and quality of optical fibers by sending a pulse of light down the fiber and measuring the reflected signal.

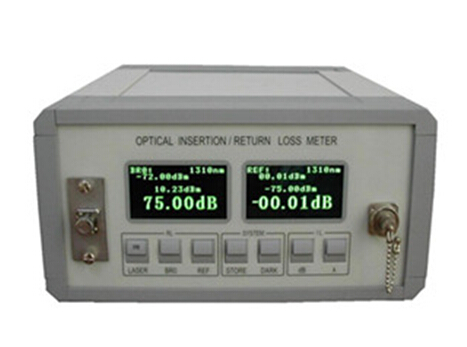

.Light source and power meter: This combination tester is used to measure the power loss of an optical connection by comparing the output of a light source at one end of the connection with the received power at the other end using a power meter.

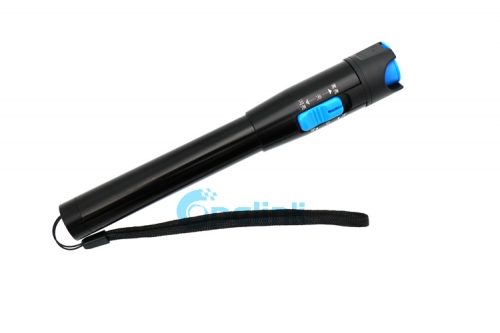

.Visual fault locator (VFL): This tester uses a red laser to locate faults or breaks in an optical fiber by shining the light down the fiber and looking for leaks or reflections along its length.
.Fiber identifier: This tester is used to identify which fiber in a bundle is carrying a signal without disrupting the signal flow itself.
.Polarization mode dispersion analyzer: This tester is used to measure the amount of polarization mode dispersion (PMD) in an optical fiber, which can cause distortion or attenuation of signals over long distances.
These testers are used throughout the process of installing, maintaining, and repairing fiber optic systems. For example, during installation, an OTDR can be used to verify that the cables have been installed correctly and are functioning properly. After installation, a light source and power meter can be used to ensure that the system is performing optimally and not suffering from excessive power loss. If a problem is detected, a VFL can help to locate the specific location of the issue so that repairs can be made. A fiber identifier can be used to determine which specific fiber in a bundle is causing issues so that repairs can be targeted more precisely. Finally, a polarization mode dispersion analyzer can be used to detect any potential issues with signal distortion over long distances. Overall, each type of fiber optic tester has its own specific use case and provides critical data for maintaining and optimizing the performance of fiber optic systems.
3. What is the impact of the performance of the Fiber optic polishing machine on the quality and productivity of the fiber patch cord? The performance of the Fiber Optic Polishing Machine can have a significant impact on the quality and productivity of fiber patch cords.
A poorly performing Fiber Optic Polishing Machine can result in inconsistent or uneven end faces on fiber optic connectors, which can cause signal loss, reflection, or scattering. This can lead to poor-quality connections, reduced transmission distances, and increased error rates, all of which can negatively impact the overall performance of the system.
Moreover, poor performance can slow down the production process, causing delays and reducing productivity. If the polishing machine is not able to achieve the necessary precision and consistency, technicians may need to spend more time manually polishing connectors or even replace damaged or unusable components, further increasing costs and decreasing efficiency.
On the other hand, a high-performing Fiber Optic Polishing Machine can help to ensure consistent and precise end faces on fiber optic connectors, resulting in reliable and high-quality connections. This can improve the performance of the system by reducing signal loss, reflection, or scattering, and increasing transmission distances and data transfer rates. A high-performing Fiber Optic Polishing Machine can also speed up the production process by allowing technicians to quickly and efficiently prepare connectors for installation.
Therefore, the performance of the Fiber Optic Polishing Machine is essential to ensuring optimal quality and productivity of fiber patch cords, making it an important component of any fiber optic system.
4. What are the Fiber Optic Polishing Machines currently in use? There are several types of Fiber Optic Polishing Machines currently in use, including:

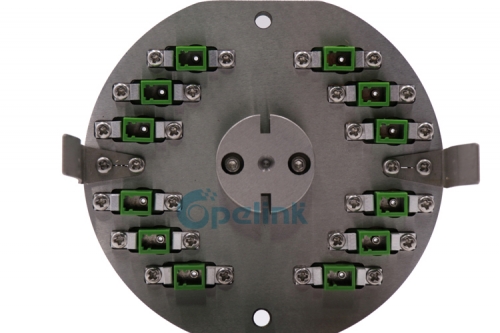

.Rotary polishing machines: These machines use a rotating polishing plate to polish the end faces of fiber optic connectors. They are capable of achieving high levels of precision and consistency and are often used in high-volume production environments.
.Continuous polishing machines: These machines use a continuous belt or tape to polish the end faces of fiber optic connectors. They are typically faster than rotary polishing machines but can be more expensive and require more maintenance.
.Handheld polishing machines: These machines are small and portable and are designed for field use or for small-scale production environments. They are easy to use and require minimal maintenance but may not achieve the same level of precision and consistency as larger, more specialized machines.
.Automated polishing machines: These machines use robotics and computer control to polish the end faces of fiber optic connectors with high precision and consistency. They are often used in large-scale production environments where speed, accuracy, and consistency are critical.
Each type of Fiber Optic Polishing Machine has its own unique advantages and disadvantages, and the choice of machine will depend on factors such as the specific application, production volume, and desired level of precision and consistency.
5. I want to assemble a Fiber Optic PLC Splitter production line. What production equipment and test instruments do I need? To assemble a Fiber Optic PLC Splitter production line, you will need several production equipment and test instruments, including:
.PLC splitter assembly machine: This machine is used to assemble the individual components of the PLC splitter module, including the fiber optic chips, couplers, and housing.
.Oven: A curing oven is required to cure the adhesive used in the assembly process.
.Fiber cleaver: A fiber cleaver is used to cut the fiber at specific lengths and angles for assembly into the splitter module.
.Polishing machine: A polishing machine is used to polish the end faces of the fiber optic connectors on the splitter module to achieve low insertion loss and high return loss.
.Test instruments: Several test instruments are required to ensure that the finished PLC splitters meet the required specifications. These include an optical power meter, an optical spectrum analyzer, and an OTDR (Optical Time Domain Reflectometer). These instruments are used to measure insertion loss, return loss, wavelength range, and uniformity of the output channels.
.Cleaning equipment: Cleaning equipment such as cleaning swabs, wipes, and compressed air can be used to keep the fiber optic components clean and free of contaminants during the production process.
.Label printer: A label printer can be used to print labels with identifying information for each PLC splitter module.
The specific production equipment and test instruments required may vary depending on the production volume and level of automation desired. Additionally, it is essential to have trained technicians who are familiar with fiber optic assembly and testing procedures to operate the equipment and perform quality control checks throughout the production process.
Opelink provides Fiber Optic Equipment products including Optical Tester, endface inspector microscope,Fiber polisher,fiber curing oven,etc. Our products are cost-effective, welcome to consult and purchase.
