2X2 Optical Switch, Fast Switching Speed Mechanical Fiber Optic Switch OSW, Singlemode SC/UPC

Item No.: Y-FO-OS-010
2x2 optical switch is designed for optical networking system protection, route diversity, measurement system, reconfigurable add/drop module.
Description Parameters Company Profile Related Product
Description:

2x2 optical switch is designed for optical networking system protection, route diversity, measurement system, reconfigurable add/drop module.
It is an optical device having one or more optional transmission ports for physically switching or logically operating an optical signal in an optical transmission line or an integrated optical path.

The switch consists of two ports that selectively transmits, redirects, or blocks optical power in a fiber optic transmission line. The optical switch must be actuated to select or change between two states.Furthermore,for the Latching type,it only takes an electrical pulse width with duration >=20msec to change the state.As a result, it consumes low electric energy to operate the optical switch.

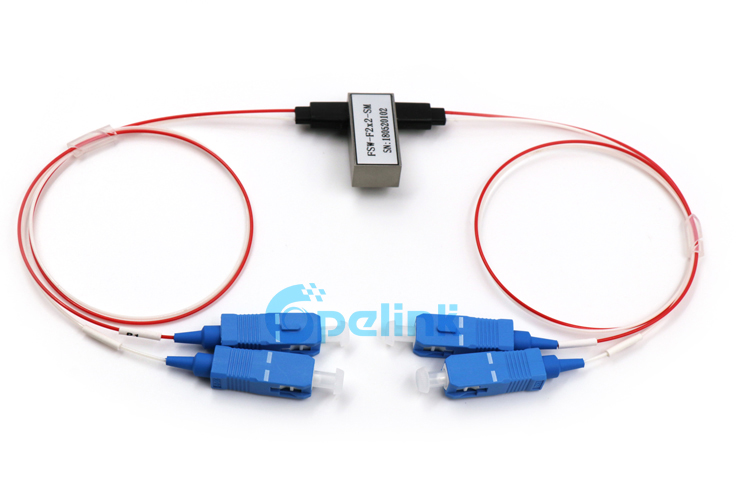

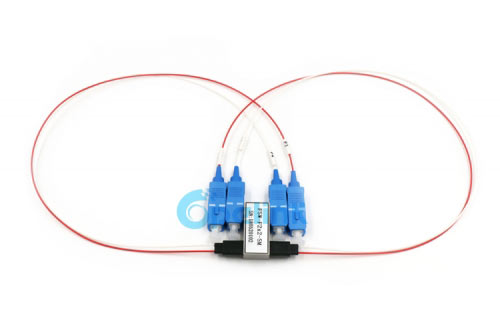

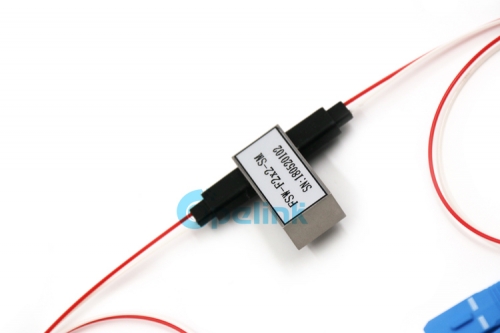

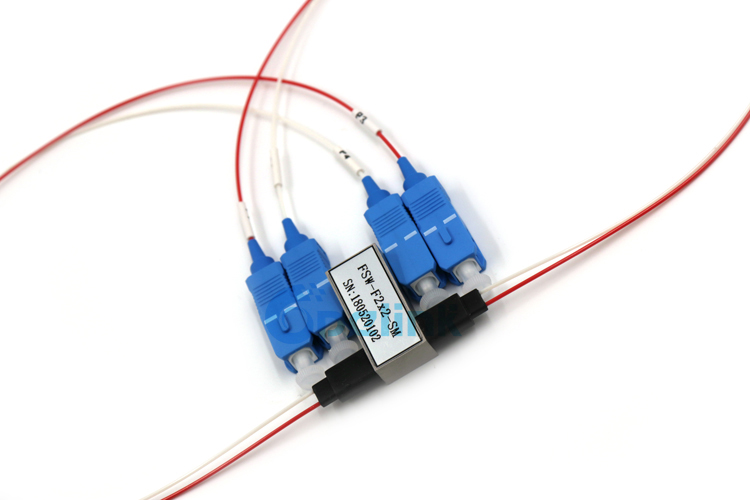

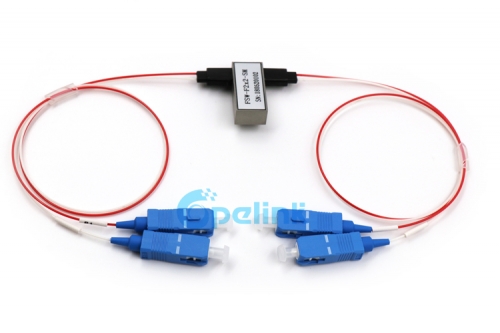

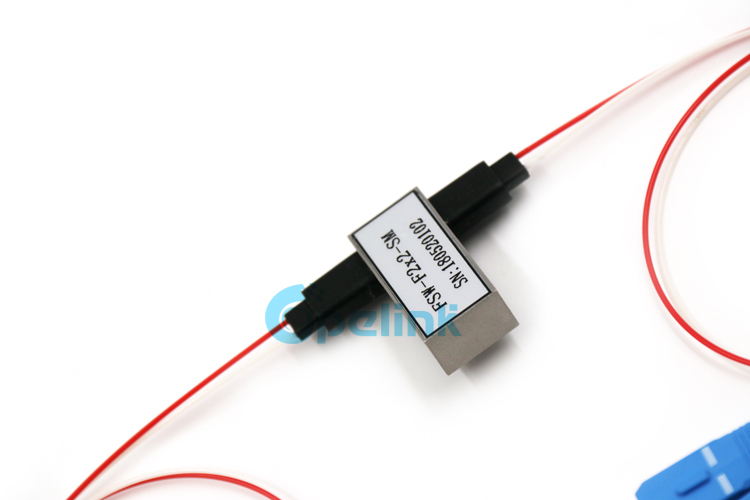

2x2 optical switch designed and manufactured by opelink
Features:
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Latching and Non-latching

Applications:
Sub-system Integration
Optical Network Monitoring/Protection
Route Fiber Test System
Re-configurable OADM
Test & Measurement Equipment Manufacturing   Application
Network Test System



Specifications:
Parameter Unit Multimode Singlemode
Operating Wavelength nm 850/1300 1280 ~ 1340 / 1520 ~ 1625
Insertion Loss dB Typ:0.8 Max:1.2 Typ:0.5 Max:0.8
Return Loss dB MM≥30 SM≥50
Crosstalk dB MM≥35 SM≥55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power Supply V 3.0 or 5.0
Lifetime Times ≥107
Switch Time ms ≤8
Transmission Power mW ≤500
Operating Temperature -20~+70
Storage Temperature -40~+85

Note:
1.Specification may change without notice.
2.Above specification are for device without connector.
3.For more details, please contact our sales

Pins

Type Pin Electric Drive Status sensor
2×2 channel 1 5 6 10 2-3 3-4 7-8 8-9
Latching P1-P4
P2-P3
V+ GND -- -- Open Close Close Open
P1-P3
P2-P4
-- -- GND V+ Close Open Open Close
Non-latching P1-P4
P2-P3
V+ -- -- GND Open Close Close Open
P1-P3
P2-P4
-- -- -- -- Close Open Open Close
