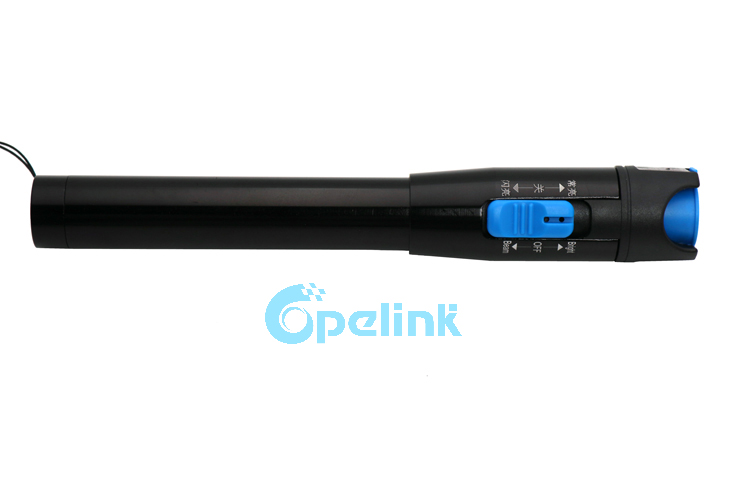

The fiber optic visual fault locator is specially designed for field personnel who need an efficient and economical tool for
fiber tracing,fiber routing and continuity checking in optical networks. It is a straightforward solution for identifying breaks,
bends, faulty connectors or splices in fiber optic cables, as well as other causes of signal loss; and it can find faults in an
OTDR dead zone and is used for end-to-end visual fiber identification.
Features:
.Finds Breaks, Faulty Splices and Crimps, Poor Components or Connection
.FC(male)-LC(Female) adaptor also can be provided on request

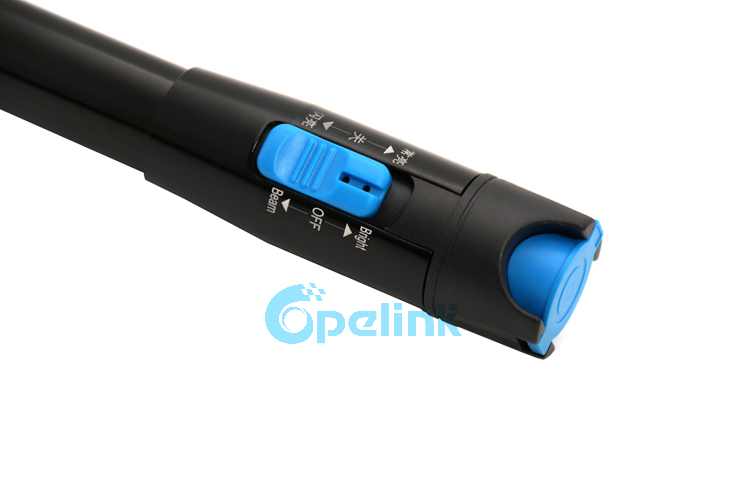

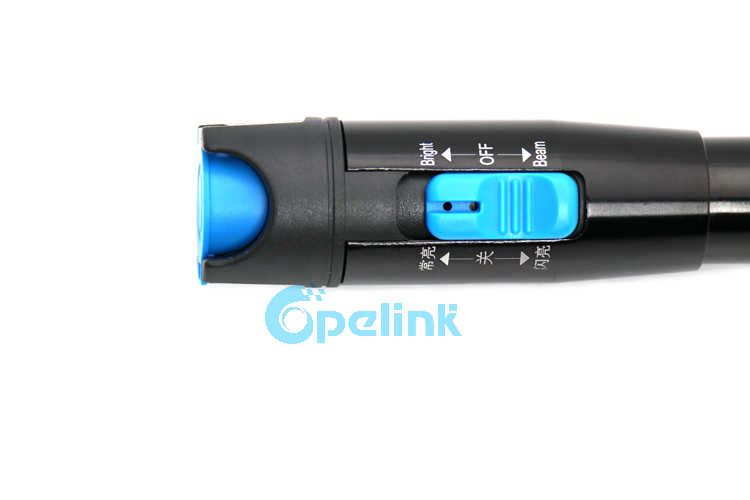

·Operates either in CW or Pulsed mode with constant output power

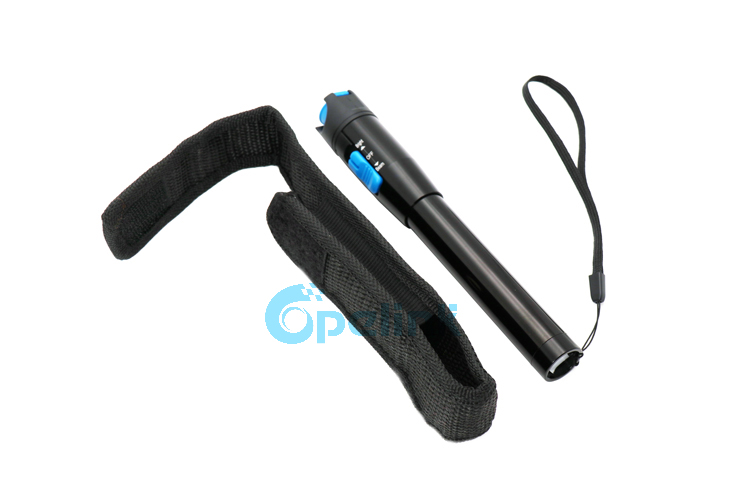

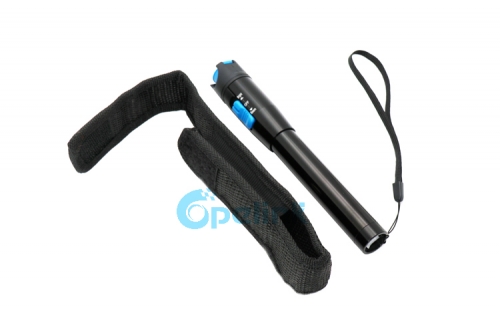

.High Effective Power Circuits Allows For Stable Power, Pen-type Design With Pouch Make It Portable

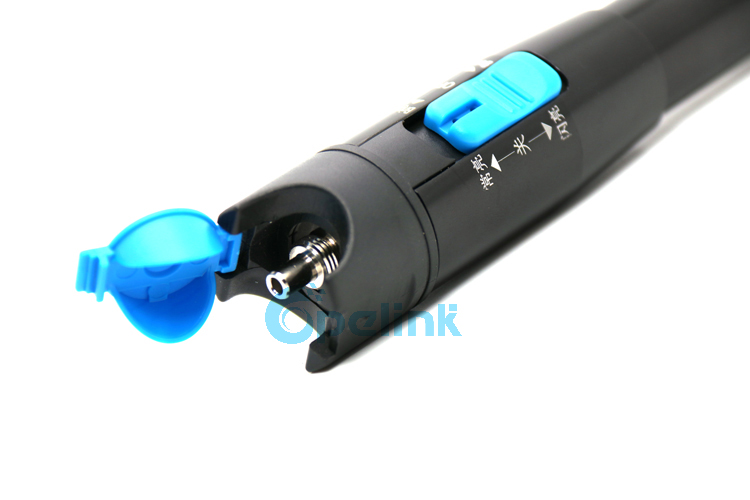

.2.5mm universal connector,for 1.25mm connectors
·Low battery warning
·Long battery life
·Drop-resistant and dust-proof design of laser head
·Laser case ground design prevents ESD damage
·Portable and rugged
·Easy to use
Applications:
.Maintenance in telecom, CATV
.Test Lab of optical fibers
.Fiber routing and continuity checking in optical networks
.Access Construction (Underground, Aerial)
.Enterprise Networking, Industrial Environments, Installers and Telco Contractors, Research and Development
.Network Testing, Test and Inspection
| Model | VFL | |||||
| Output power | 5mw | 10mw | 20mw | 30mw | 40mw | 50mw |
| Laser Range | ≥5km | ≥10km | ≥20km | ≥30km | >35km | >40km |
| Central wavelength | 650nm±10nm (635nm is available on request) | |||||
| Emitter type | FP-LD | |||||
| Optical connector | 2.5mm universal connector, for 1.25mm connectors, FC (Male)-LC. (Female) convertor can be provided on request | |||||
| Operating model | Both CW and Pulse available | |||||
| Pulse frequency | 2Hz to 3Hz / 9Hz | |||||
| Power supply | 2AA alkaline batteries | |||||
| Operating temperature | -10~+50°C (<90%RH) | |||||
| Storage temperature | -20~+60°C (<90%RH) | |||||
| Standard Package | Main unit, User Manual,Individual packing | |||||
