1X4 Fiber PLC Splitter, SC/APC 0.9mm Mini Blockless Optical Splitter

Item No.: Y-FO-FS-052
We provide Fiber PLC Splitter, standardized and large-scale production, high reliability and stability.
  • Brand Name: OPELINK
  • Place of Origin: Guangdong, China
  • Product name: Fiber Optic PLC Splitter
  • Description parameters Company Profile Related Product
    Description:
    1×4 Fiber PLC Splitter, Mini Blockless Type, Singlemode, SC/APC
    Fiber PLC Splitter also referred to as optical splitter, or Fiber splitter, is an even split ratio from one input fiber to multiple output fibers. It is characterized as uniform broadband power splitters featuring exceptional uniformity of insertion loss throughout all channels resulting in fact in practical wavelength independency over all transmission range from 1260 to 1650 nm. Optical splitter has played an important role in passive optical networks (like EPON, GPON, BPON, FTTX, FTTH, etc.) by allowing a single PON interface to be shared among many subscribers.

    1x4 mini Blockless Fiber PLC Splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets.

    Our PLC Splitter provides highly stable splitting performance superbly across temperature and wavelength in low insertion loss, low input polarization sensitivity, excellent uniformity, and low return loss. Different splitting ratio is available, 1X2, 1X4, 2X4, 1X8, 2X8, 1X16, 2X16, 1X32, 2X32 and 1x64.

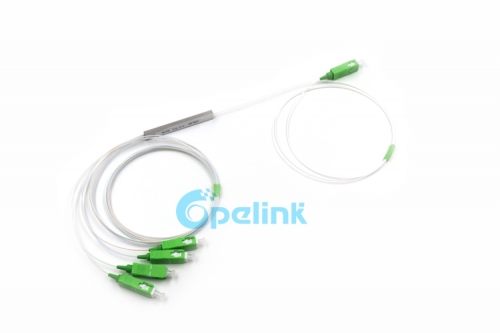

    This is a 1x4 fiber PLC splitter product sold by opelink. It is packaged with min blockless steel tube and equipped with SC / APC SM pigtail

    Product Details:
    Package Style Mini Blockless Module Configuration Type 1x4
    Fiber Grade G.652D/ other Fiber Mode Singlemode
    Connector Type SC/APC Split Ratio 50/50
    Input/Output Fiber Diameter 0.9mm Input/Output Fiber Length 1.5m/ other
    Insertion Loss ≤7.4dB Return Loss ≥55dB
    Loss Uniformity ≤0.8dB Directivity ≥55dB
    Polarization Dependent Loss ≤0.3dB Temperature Dependent Loss ≤0.5dB
    Wavelength Dependent Loss ≤0.5dB Operating Bandwidth 1260~1650nm
    Operating -40 to 85°C Storage Temperature -40 to 85°C

    Fiber PLC splitter product advantages introduction:
    .The optical fiber can distribute the optical fiber signal to all ports evenly.
    .Easy installation and convenient operation.
    .Split Input Signal Evenly into 4 Output Ports
    .≤7.4dB Low Insertion Loss and ≤0.3dB Low Polarization Dependent Loss
    .Fully Passive Optical Branching Device
    .Applicable to racks, wall mounted box, optical fiber distribution box, etc
    .1260~1650nm Broad Operating Wavelengths
    .High quality imported chips with low polarization dependent loss can meet different wavelength requirements.
    .The loss is insensitive to wavelength and can meet the transmission needs of different wavelengths.


    Features:
    Low Insertion loss & PDL
    Good channel-to-channel uniformity
    Compact Design
    Wide Operating Temperature
    Wide Operating Wavelength:1260~1650nm
    High Reliability and Stability
    Excellent Environmental & Mechanical Stability
    Qualified Under Telcordia GR-1221 and GR-1209


    Applications:
    FTTx (FTTB, FTTH, FTTC)
    Passive Optical Networks (PON, GEPON)
    Local Area Networks (LAN)
    CATV Systems
    Test Equipments
    Telecommunication Networks


    Ordering Information:
    .Opelink provides a whole series of 1xN and 2xN Fiber PLC splitters that are tailored for specific applications:
    .1x2, 1x4, 1x8, 1x16,1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32,2x64 Versions of splitters are available.
    .SC/UPC, FC/UPC, LC/UPC, ST/UPC, SC/APC, FC/APC, LC/APC connectors or no connectors can be select as you like
    .0.9, 2.0, 3.0mm for input & output fiber type.
    .The length of pigtail can be also customized; usually we will provide you 1.5m, welcome to contact us for more details.
    Structure Package
    Type
    Pigtail In Pigtail Out Connector Fiber Core Pigtail Length Package
    1002=1X2  1004=1X4 1032=1X32
    1064=1x64
    2002=2X2  2004=2X4
    2008=2X8  2032=2X32
    2064=2X64
    xxxx=other
    M= Miniature Package
    B= Box package
    R= Rack Mount
    P= Blade Package
    B=250um bare  fiber
    L=900um loose  tube
    2=2.0mm
    3=3.0mm
    A=Adaptor
    XX= other
    B=250um bare  fiber
    L=900um loose  tube
    2=2.0mm
    3=3.0mm
    A=Adaptor
    XX= other
    SU=SC/UPC   SA=SC/APC
    FU=FC/UPC    FA=FC/APC
    ST=ST/UPC    LA=LC/APC
    LU=LC/UPC    00=NONE
    XX=other
    S1=G652D
    S2= G657A1
    M5=50/125
    M6=62.5/125
    M3=OM3
    M4=OM4
    XX=other


    0.5M=0.5M
    10M=10M
    XXX=other


    S1,S2...S12
    01,02,03,04
    U,G,X

    Package Size:
    Plastic Box package/mm Miniature Package/mm Blade Package/mm Rack Mount/mm
    01=100X80X9 02=120X80X18
    03=140X114X18 04=90x20x9.5
    XX= other
    S1=40X4X4
    S2=45X4X4
    S3=45X4.5X4
    S4=50x7x4
    S5=60X7X4
    S6=60X12X4
    S7=65X7X4
    S8=80X12X4
    S9=80X20X6
    S10=90x20x6
    S11=100x40x6
    S12=55x7x4
    21=130X100X25 24=130X100X206
    22=130X100X50 25=130X100X284
    23=130X100X102 26=130X100X76
    XX= other
    XU=19” Rack Mount (X=1,2,3,4,)
    31=R Type Mount Box
    32=Wall-Mount Type
    33=ODF Type
    XX= other



    Specifications:
    Parameter Value
    Product Type 1×2/2x2 1×4/2x4 1×8/2x8 1×16/2x16 1×32/2x32 1×64/2x64 1×128/2x128
    Wavelength(nm) 1260~1650
    I.L(dB) Typ. 3.6/4.2 7.1/7.2 10.4/10.6 13.6/13.8 17.2/17.5 20.1/20.5 25.0/25.2
    Max. 4.3/4.5 7.4/7.6 10.7/11.0 14.0/14.8 18.0/18.0 21.5/21.5 25.8/25.8
    Uniformity(Max.)(dB) 0.5/0.8 0.8/1.0 1.0/1.2 1.4/1.5 1.6/1.8 2.0/2.5 2.6/3.0
    PDL(Max.)(dB) 0.2/0.2 0.3/0.3 0.3/0.3 0.3/0.3 0.3/03 0.5/0.5 0.8/1.0
    TDL(Max.)(dB) 0.5
    R.L(dB) ≥50(APC)/≥50(UPC)
    Directivity(dB) ≥55
    Operating & Storage
    Temperature
    -40~+85

    Note:

    1. All the data above does not include connectors.
    2. UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.

    3. For more details, please contact our sales
