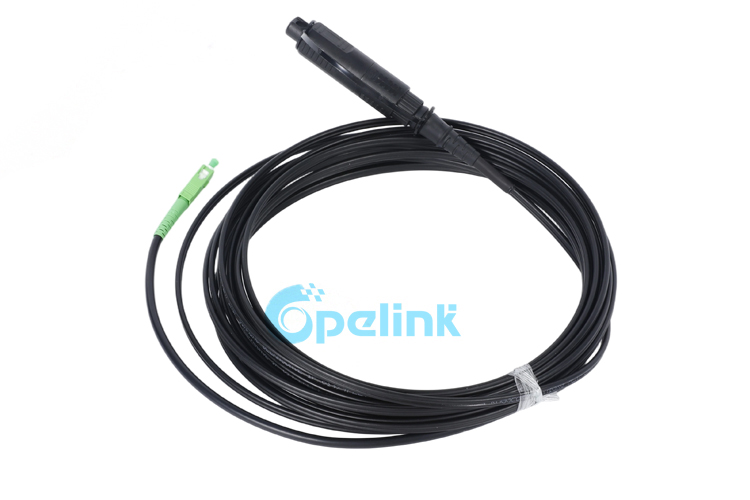

High-Performance H-Connector SC/APC Fiber Optic Patch Cord - FTTH, Waterproof, Optitap-Compatible

Item No.: Y-FO-FP-058
Buy high-quality OptiTap-compatible SC/APC fiber patch cords for reliable FTTH installations. Waterproof, Corning compatible, and available in various lengths. Fast shipping!
Description Parameters Company Profile Related Product

Description:

The H-connectors/SC-APC pre-connectorized drop cable Fiber Optic Patch cord is a hardened, outdoor-rated fiber assembly designed for fast, reliable FTTH and OSP deployments. It combines waterproof connector
technology,single-mode fiber, and corrosion-resistant materials to ensure stable performance in harsh environments. This product category includes OptiTap-compatible, Mini-SC, and hardened SC/APC connectors
mechanical designs for seamless integration into existing FTTx networks.



Product name H-connectors/SC-APC pre-connectorized drop cable Fiber Optic Patch cord
Cable Type dielectric or Toneable
Cable diameter 5.0mm round cable or 4.5*8.1mm flat cable or 4.5*9.8mm toneable cable
Application Aerial,Direct Buried,Duct
Termination Both end or one end

Specifications-Connector A
Reflectance,Typical -65 dB
Insertion Loss,Typical ≤0.15 dB
Connector Type SC/APC OptiTap-compatible connector(H Connector)

Specifications-Connector B
Reflectance,Typical -65 dB
Insertion Loss,Typical ≤0.15 dB
Connector Type SC APC Connector(simplex)with 2.0mm or 2.9mm leg

Optical Characteristics
Fiber Type Single-mode
Fiber count 1F
Fiber Category G.652D or G.657A2 or other
Wavelengths 1310nm/1550 nm
Maximum Attenuation 0.35 dB/km/0.25 dB/km





Key Features:

.Hardened SC/APC or OptiTap-compatible Connector: Ensures secure, low-loss connections with high-quality ceramic ferrules for precise alignment and stable optical performance
.Waterproof & Dustproof Design: Built to withstand moisture, UV exposure, and temperature fluctuations, making it ideal for outdoor poles, ducts, and pedestals
.Outdoor-Rated Cable Structures: Available in flat drop, dielectric, armored, toneable, and SST-drop variations for multiple deployment scenarios
.Fast, Pre-Terminated Installation: Factory-assembled connectors eliminate field splicing, reducing labor cost and deployment time in FTTH rollouts
.Corning-Compatible Fool-Proofing: Many models include blind-mating and one-hand bayonet latch features equivalent to Corning and Huawei hardened connector systems, improving installation reliability
.Various Length Options: Offered in 1m, 2m, 3m, 5m, and custom lengths for flexible installation planning



Application:

.FTTH Last-Mile Drops: Ideal for connecting multiport service terminals (MST), access closures, and ONT devices in residential fiber-to-the-home networks
.Outdoor OSP Infrastructure: Suitable for aerial, conduit, and wall-mounted installations due to its ruggedized structure
.FTTA & CPRI Wireless Base Stations: Waterproof Mini-SC and OptiTap-compatible connectors support remote radio unit (RRU) connections in telecom towers
.Municipal and Rural Broadband: Reliable for long-distance outdoor routes, making it useful for government and rural fiber projects
.Industrial and Utility Networks: Hardened connectors support harsh-
environment applications such as smart grid backbones and surveillance networks

Frequently Asked Questions

1. Does this drop patch cord meet RoHS and REACH?

OPELINK issues RoHS (EU 2011/65/EU) and REACH (EC 1907/2006) declarations for the exact cable compound and connector housings shipped with each order.

  • Declarations reference the delivered batch, not a generic catalogue entry
  • The hardened H-Connector body is supplied in RoHS-compliant polymer
  • Statement copies are released with the packing list on request

2. Are Telcordia GR-326 test reports available for this assembly?

GR-326-based reliability data is quoted per order, because the cable option chosen for aerial, duct or buried routing changes the test set.

  • Insertion loss is controlled to ≤0.15 dB typical at 1310 and 1550 nm
  • Reflectance is held at −65 dB typical for the APC end face
  • Report scope is agreed before production so the data matches the delivered build

3. Which cable option fits aerial, duct or buried routes?

Route first decides the cable: 5.0 mm round for duct, 4.5×8.1 mm flat for façade drops, and 4.5×9.8 mm toneable for buried spans.

  • Round cable carries the highest crush load for duct pulling
  • Flat cable lies tight against walls with a low profile
  • Toneable cable embeds a detectable wire for buried locating

4. Why choose toneable cable for direct-buried drops?

A toneable jacket embeds a copper tracer wire so a locator can find the buried span before excavation, which flat and standard round versions cannot provide.

  • The 4.5×9.8 mm profile keeps the tracer at a fixed depth from the surface
  • Tracer continuity is tested before dispatch
  • Non-toneable options remain cheaper for aerial and duct work

5. Why does a new drop fail the first OTDR test?

First-test failures usually trace to a kinked cable at a lashing clamp or wall penetration rather than to a connector defect.

  • Inspect the route for tight loops before exchanging the assembly
  • Confirm the hardened plug and the SC APC joint are both fully seated
  • Test from both ends so a poor reference cord is not read as a fault

6. How is the hardened connector sealed against moisture?

Sealing relies on a dual O-ring interface inside the hardened shell, which closes only when the connector is fully seated and the coupling nut is hand-tightened.

  • Partial seating leaves the O-rings unloaded and admits water
  • The port dust cap must be refitted whenever the drop is unplugged
  • No silicone grease or tape is specified for the interface

7. How should hardened end faces be cleaned in the field?

Clean both the hardened plug and the receptacle with a lint-free wipe and 99% isopropyl alcohol, then dry before mating.

  • Dry wiping alone spreads contamination across the APC contact
  • Inspect for scratches with a 200× scope before reconnection
  • Never use compressed air on the receptacle, it drives debris inward

8. Can this cord be installed in exposed aerial FTTH spans?

Yes, the assembly is built for aerial, duct and direct-buried FTTH routing from −40 °C to +80 °C with the appropriate cable option.

  • UV-stable jacket compound is used on outdoor cable options
  • Lashing hardware should not clamp closer than the minimum bend radius
  • Sustained exposure above +80 °C needs a different compound

9. What information is needed to quote a drop cord?

An RFQ needs drop length, cable option, termination at one or both ends, fibre grade and connector polish.

  • G.652.D and G.657A2 are both quoted for the same connector
  • One-end termination is available for field-spliced tails
  • Production schedule is confirmed in the quotation, not on the page
Optical Specifications:
Parameter Singlemode Patchcord/Pigtail Multimode Patchcord/Pigtail
Polishing  Type PC UPC APC PC
Insertion loss(dB) <=0.3dB,MTRJ<=0.5dB <=0.3dB <=0.3dB <=0.3dB,MTRJ<=0.5dB
Return loss(dB) >=45dB,MTRJ>=35dB >=55dB >=65dB
Operating temperature -20ºC~75ºC
Storage Temperature -40ºC~75ºC
100 mating cycles loss I.L changed≤0.1dB
Durability >1000 cycles

Geometric Specification:
Parameter PC  Polishing APC Polishing
SC Type LC Type
R.O.C 10~25mm 7~25mm 5~12mm
Apex Offset <50um <50um <50um
Fiber Height -125nm-50nm   -100nm-100nm
Polishing Angle     8°± 0.3°
