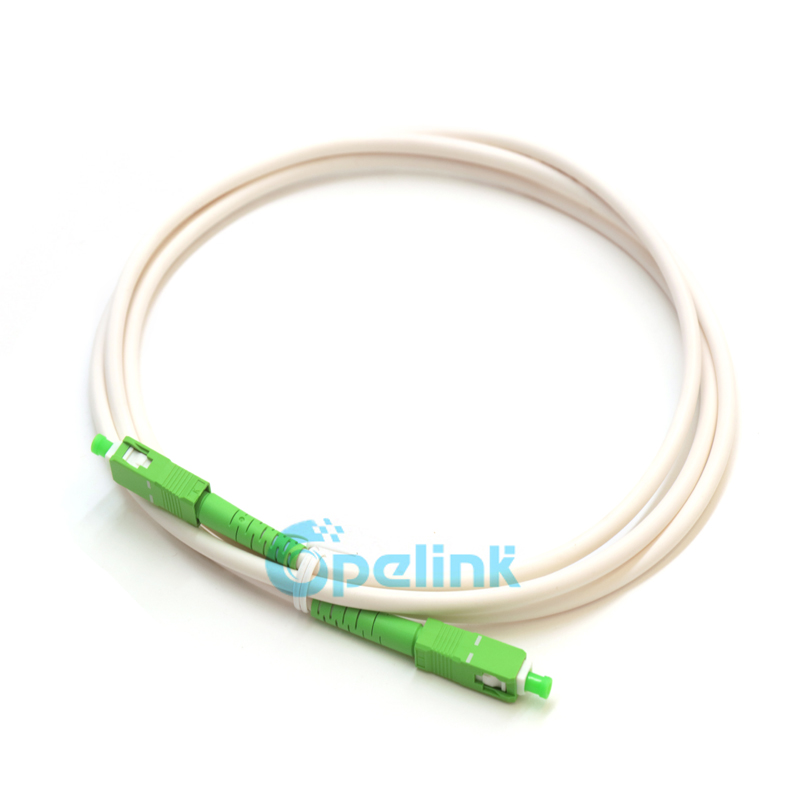

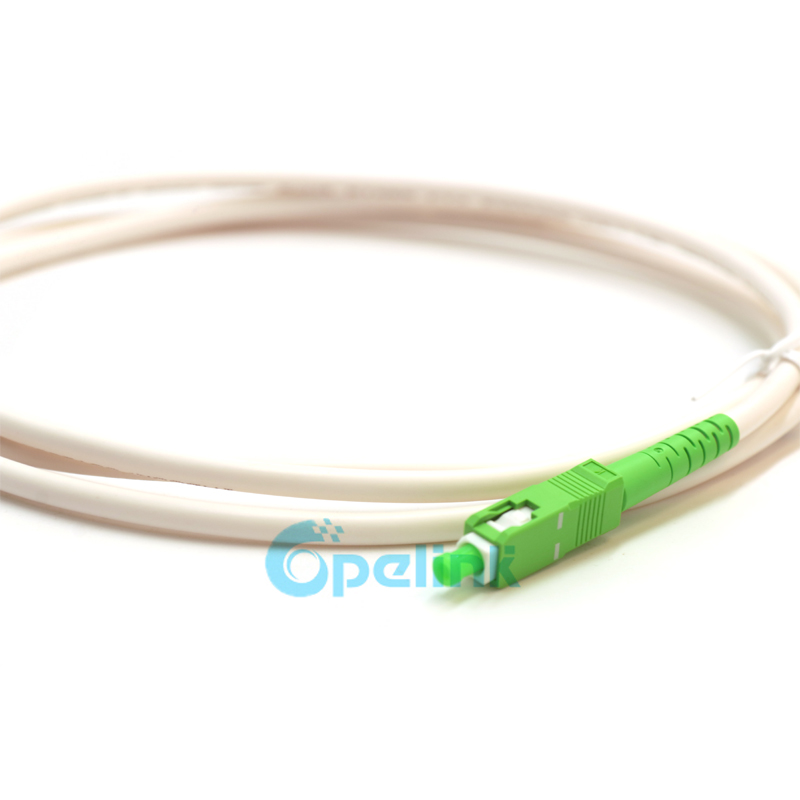

SC APC to SC APC Simplex Outdoor Fiber Optic Patch Cord, G.657A2 , 5mm PVC-OFNR White Jacket

Item No.: Y-FO-FP-062
Enhance your network connectivity in demanding conditions with the
Fiber Patch Cord. This robust SC APC to SC APC  Simplex cable, featuring Simplex fibers in Single-Mode G.657A2  with a PVC-OFNR jacket, is engineered for superior performance in outdoor
Description Parameters Company Profile Related Product

SC APC to SC APC Fiber Patch Cord: Simplex, Single-Mode OS2, G.657A2 PVC-OFNR Jacket

Enhance your network connectivity in demanding conditions with the Fiber Patch Cord. This robust SC APC to SC APC Simplex cable, Simplec Single-Mode G.657A2  with a PVC-OFNR jacket, is engineered for superior performance in industrial, outdoor, and harsh environments.this fiber optic patch cord ensures reliable high-speed data transmission with low insertion loss.

SC APC to SC APC Simplex Outdoor Fiber Optic Patch Cord, G.657A2

Product Details:

Connector A SC APC Duplex, mini boot Connector B SC APC Duplex, mini boot
Fiber Count 1 Fibers Fiber Grade G.657A2(Compatible with G.652.D)
Fiber Mode OS2 9/125μm Wavelength 1310/1550nm
Cable Diametre(OD) 5mm Cable Jacket PVC-OFNR
Min.Bend Radius(Optical Fiber) 7.5mm Min.Bend Radius(Fiber Cable) 20/10D(Dynamic/Static)
Connector Durablity 500 times Flex Resistance 2000 Cycles
Insertion Loss ≤0.3dB Return Loss ≥65dB
Operating Temperature -40 to 80°℃ Storage Temperature -40 to 80°℃

Key Features of the Fiber Patch Cord

1.Bend-Insensitive G.657.A2 Fiber: Compatible with G.652.D, this OS2 9/125μm single-mode fiber maintains signal integrity during repeated bending (min. bend radius 7.5mm for fiber, 20/10D dynamic/static for cable) and twisting, with attenuation of 0.36 dB/km at 1310nm and 0.22 dB/km at 1550nm.
2.High-Performance Connectors: SC APC Duplex to SC APC Duplex with ≤0.3dB insertion loss, ≥50dB return loss, and 500-cycle durability for reliable connections in fiber optic networks.

Applications for the Single-Mode Fiber Patch Cord

High-Reliability Networks: Supports 10G/40G/100G Ethernet with low loss for data centers, telecom, and FTTH setups.


Frequently Asked Questions

1. Does the white jacket cord meet RoHS and REACH?

RoHS (EU 2011/65/EU) and REACH (EC 1907/2006) declarations are issued for the white PVC-OFNR compound and SC APC housings actually delivered.

  • The white pigment package is included in the declaration scope
  • Documents match the supplied batch, not a generic catalogue entry
  • Declaration copies ship with the packing list on request

2. Are IEC 61300 test reports supplied with the cord?

End-face and attenuation measurements follow IEC 61300 methods, and the per-assembly records can be attached to the shipment.

  • Insertion loss is checked against ≤0.3 dB at 1310 and 1550 nm
  • Return loss is checked against ≥65 dB for the APC interface
  • Report scope is agreed before production so data matches the build

3. Which jacket color suits an outdoor wall drop, white or black?

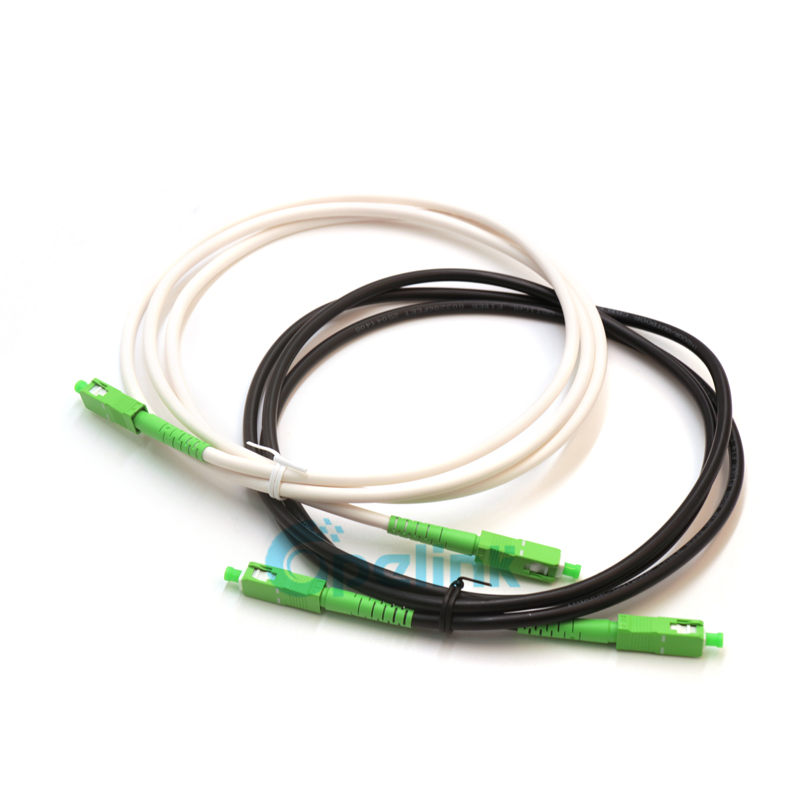

Jacket color is a routing marker only: the white version and its black counterpart share the same 5.0 mm PVC-OFNR build and identical optical limits.

  • White is used where the drop must match light building trim
  • Black is preferred on exposed aerial spans because UV load dominates
  • Both versions reach ≤0.3 dB loss and ≥65 dB return loss

4. Why pick G.657A2 over standard G.652.D here?

G.657A2 tolerates the tight loops of wall-drop routing, bending to 7.5 mm while remaining interoperable with G.652.D links.

  • Standard G.652.D needs roughly 30 mm bend radius
  • Bend-insensitive fiber protects loss in small enclosures
  • G.652.D is still quoted where the network standard requires it

5. What bend radius applies to this 5 mm cord?

Allow 100 mm during dynamic pulls and 50 mm once fixed, because the 5.0 mm cable follows the 20 D dynamic and 10 D static rule.

  • 7.5 mm remains the absolute fiber bend limit
  • Radius is measured to the inside of the curve, not the centerline
  • Tight coiling raises 1550 nm loss before damage becomes visible

6. How should the APC end faces be cleaned?

Wipe both ferrules with a lint-free tissue and 99% isopropyl alcohol, let them dry, then inspect before mating.

  • Dry wiping alone spreads dust across the angled contact
  • A 200× scope shows residue that the eye cannot detect
  • Never touch the ferrule surface with bare fingers

7. Why does a new cord show high insertion loss?

Contamination or a mismatched polish at the adapter is the usual cause, well before any fiber or ferrule defect.

  • Confirm the far end is APC, not UPC, before replacing anything
  • Re-clean and re-measure with a reference-quality test cord
  • Compare both wavelengths: contamination raises 1310 nm loss first

8. Is the white jacket suitable for outdoor wall drops?

Yes, the assembly is rated from −40 °C to +80 °C for aerial and wall-drop routing, with 500 mating cycles and 2000 flex cycles.

  • White compound matches exterior trim on subscriber walls
  • Sustained aerial UV exposure favors the black version
  • Operation above +80 °C requires a different jacket compound

9. What is needed to quote this simplex cord?

Quote inputs are length, connector polish, jacket color, fibre grade and whether both ends are terminated.

  • Mini-boot SC APC terminations are standard at both ends
  • One-end termination is available for field splicing
  • Lead time is confirmed in the quotation as lengths are cut to order
Optical Specifications:
Parameter Singlemode Patchcord/Pigtail Multimode Patchcord/Pigtail
Polishing  Type PC UPC APC PC
Insertion loss(dB) <=0.3dB,MTRJ<=0.5dB <=0.3dB <=0.3dB <=0.3dB,MTRJ<=0.5dB
Return loss(dB) >=45dB,MTRJ>=35dB >=55dB >=65dB
Operating temperature -20ºC~75ºC
Storage Temperature -40ºC~75ºC
100 mating cycles loss I.L changed≤0.1dB
Durability >1000 cycles

Geometric Specification:
Parameter PC  Polishing APC Polishing
SC Type LC Type
R.O.C 10~25mm 7~25mm 5~12mm
Apex Offset <50um <50um <50um
Fiber Height -125nm-50nm   -100nm-100nm
Polishing Angle     8°± 0.3°
