LC to LC Duplex Outdoor Armored Fiber Patch Cord, Single-Mode OS2 , 5mm TPU Jacket

Item No.: Y-FO-FP-060
Enhance your network connectivity in demanding conditions with the Armored Fiber Patch Cord. This robust LC UPC to LC UPC duplex cable, featuring 2 fibers in Single-Mode OS2 with a TPU jacket, is engineered for superior performance in industrial, outdoor.
Description Parameters Company Profile Related Product

Armored Fiber Patch Cord: LC UPC to LC UPC Duplex, Single-Mode OS2, TPU Jacket – Durable for Harsh Environments

Enhance your network connectivity in demanding conditions with the Armored Fiber Patch Cord. This robust LC UPC to LC UPC duplex cable, featuring 2 fibers in Single-Mode OS2 with a TPU jacket, is engineered for superior performance in industrial, outdoor, and harsh environments. Ideal for direct burial, underground conduits, or field deployments between buildings, it offers exceptional protection against crush forces, rodents, and extreme temperatures. this armored fiber optic patch cord ensures reliable high-speed data transmission with low insertion loss.

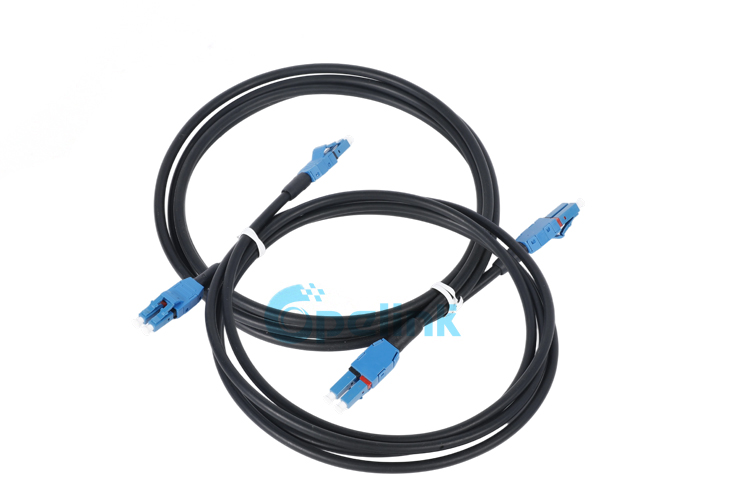

LC to LC Duplex Outdoor Armored Fiber Patch Cord

Product Details:

Connector A LC UPC Duplex, mini boot Connector B LC UPC Duplex, mini boot
Fiber Count 2 Fibers Fiber Grade G.657A2(Compatible with G.652.D)
Fiber Mode OS2 9/125μm Wavelength 1310/1550nm
Cable Diametre(OD) 5mm Cable Jacket TPU (Thermoplastic Polyurethane)
Min.Bend Radius(Optical Fiber) 7.5mm Min.Bend Radius(Fiber Cable) 20/10D(Dynamic/Static)
Connector Durablity 500 times Flex Resistance 2000 Cycles
Insertion Loss ≤0.3dB Return Loss ≥50dB
Operating Temperature -40 to 80°℃ Storage Temperature -40 to 80°℃

Key Features of the Armored Fiber Patch Cord

1.Helical Steel Armor for Ultimate Protection: Surrounded by buffered fiber, stainless steel armor, Kevlar yarn, braiding, and a TPU outer jacket, this cable withstands crushing , rodents, and high tensile loads – perfect for industrial settings and outdoor wiring.
2.Bend-Insensitive G.657.A2 Fiber: Compatible with G.652.D, this OS2 9/125μm single-mode fiber maintains signal integrity during repeated bending (min. bend radius 7.5mm for fiber, 20/10D dynamic/static for cable) and twisting, with attenuation of 0.36 dB/km at 1310nm and 0.22 dB/km at 1550nm.
3.TPU Jacket for Extreme Durability: Water-resistant, abrasion-proof, and oil-resistant TPU construction operates from -40°C to +80°C, making it suitable for road wiring, snowfields, construction sites, and direct burial without rigid conduits. Service life of 3-5 years in long-term outdoor exposure or rain.
4.High-Performance Connectors: LC UPC Duplex to LC UPC Duplex with ≤0.3dB insertion loss, ≥50dB return loss, and 500-cycle durability for reliable connections in fiber optic networks.
5.Rodent and Pest Proof: Anti-rodent design protects against mice, birds, and other pests, ensuring long-term reliability in vulnerable installations.

Applications for the Armored Single-Mode Fiber Patch Cord

1.Outdoor and Industrial Wiring: Connect networks between buildings via underground conduits or direct burial in road, snowfield, or construction site environments.
2.Harsh Indoor/Outdoor Deployments: Ideal for factories, hazardous areas, and extreme weather where regular cables fail.
3.High-Reliability Networks: Supports 10G/40G/100G Ethernet with low loss for data centers, telecom, and FTTH setups.



Frequently Asked Questions

1. Does this armored patch cord meet RoHS and REACH?

RoHS (EU 2011/65/EU) and REACH (EC 1907/2006) declarations cover the TPU jacket, the steel armor tape and the LC housings of each delivered batch.

  • Armor tape alloy is included in the declaration scope
  • Documents are released with the shipment on request
  • Substance queries are answered against the actual material lot

2. Can a CE declaration be supplied for European projects?

CE documentation is prepared against the buyer's project scope, since a passive patch cord is not a self-declared apparatus under the EMC directive.

  • Declaration route is agreed before production starts
  • UKCA follows the same technical file where the project requires it
  • RoHS test reports can be attached to the RFQ response

3. Why choose armored construction over standard duplex cord?

The steel armor tape inside the TPU jacket resists rodent bite and crush between buildings, where an unarmored 5.0 mm cord fails first.

  • Armored cord is rated for direct burial and duct runs
  • Bend radius stays 20 D dynamic and 10 D static on the 5.0 mm cable
  • Standard cord remains adequate inside trays and cabinets

4. Which polish suits an outdoor duplex run, UPC or APC?

LC UPC is the practical choice for this armored duplex cord, delivering ≥50 dB return loss which suits 10G and PON links without polishing mismatch risk.

  • APC variants reach 65 dB but must not meet UPC ports
  • UPC end faces are flat-polished and easier to clean in the field
  • Return loss ≥50 dB is measured at 1310 and 1550 nm

5. What bend radius applies during armored cable pulling?

Respect 100 mm dynamic and 50 mm static bend radius on the 5.0 mm cable, with 7.5 mm as the absolute fiber limit.

  • The figure is 20 times cable diameter when pulling and 10 times once fixed
  • Armor resists crush but does not protect against tight coiling
  • Loss at 1550 nm rises before any jacket damage is visible

6. How do I confirm duplex LC polarity is correct?

Check that position A at one end reaches position B at the other, then confirm with a light source before energizing the link.

  • Duplex clips keep the pair keyed in one orientation
  • Swapped polarity shows as a link that will not train at either end
  • Label both legs after verification to survive later maintenance

7. Why is return loss specified at 50 dB, not 65 dB?

The LC UPC flat-polished end face reflects more light than an angled APC ferrule, so 50 dB is the correct UPC threshold rather than a lower grade of build.

  • Reflection returns to the transmitter and destabilizes low-cost optics
  • APC ferrules reach 65 dB by deflecting light into the cladding
  • Do not mix UPC and APC in the same link

8. Is the TPU armored cord suitable for direct burial?

Yes, the TPU jacket with steel armor is intended for direct burial, duct and inter-building runs from −40 °C to +80 °C.

  • 2000 flex cycles and 500 mating cycles are specified for re-entry work
  • Buried spans should still be laid in sand or a duct where code requires
  • TPU resists abrasion better than PVC on rough trench walls

9. What details are required to quote an armored duplex cord?

Quote inputs are length, polish at each end, armor requirement, jacket color and packing method for the site.

  • OS2 9/125 µm fibre is the standard single-mode option
  • Pulling eyes and drum lengths are quoted separately
  • Schedule is confirmed with the quotation once length mix is fixed
Optical Specifications:
Parameter Singlemode Patchcord/Pigtail Multimode Patchcord/Pigtail
Polishing  Type PC UPC APC PC
Insertion loss(dB) <=0.3dB,MTRJ<=0.5dB <=0.3dB <=0.3dB <=0.3dB,MTRJ<=0.5dB
Return loss(dB) >=45dB,MTRJ>=35dB >=55dB >=65dB
Operating temperature -20ºC~75ºC
Storage Temperature -40ºC~75ºC
100 mating cycles loss I.L changed≤0.1dB
Durability >1000 cycles

Geometric Specification:
Parameter PC  Polishing APC Polishing
SC Type LC Type
R.O.C 10~25mm 7~25mm 5~12mm
Apex Offset <50um <50um <50um
Fiber Height -125nm-50nm   -100nm-100nm
Polishing Angle     8°± 0.3°
