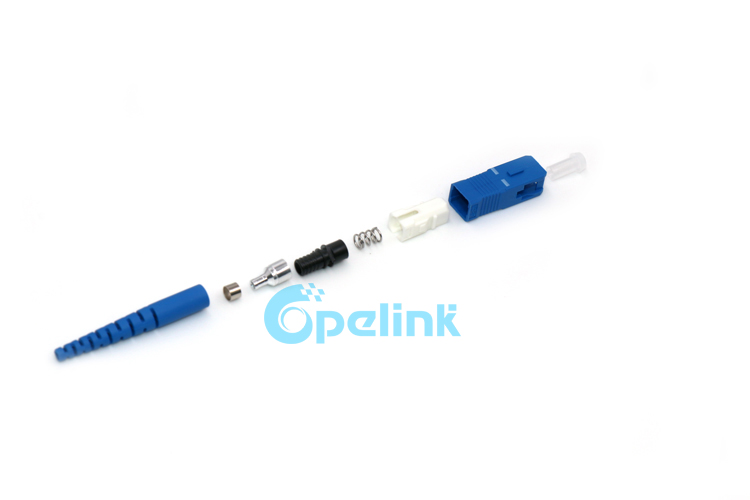

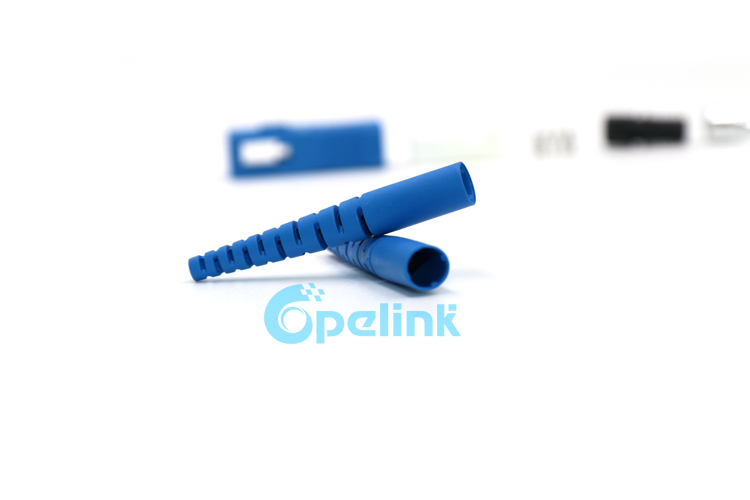

SC/PC Simplex Singlemode Optical fiber connector SC Boot fiber Optic Connector

Item No.: Y-FO-CP-001
The fiber optic connector is a passive device that enables active connection between optical fibers. It has the function of actively connecting optical fibers with active devices, optical fibers and other passive components, optical fibers and systems
Description Parameters Company Profile Related product
Description:
SC/PC SM fiber optic connector is one of the most basic passive components in the optical fiber communication. There are difference ferrule materials
(ceramic, plastic, metal), a variety of body and boot color to choose. Through the process of curing and polishing, etc., the connector is combined
with various of fiber optic cable and made into different kinds of patchcord (jumper), which have been widely applied to the CATV system,
Communications system, FTTx system, Local Area Networks, Wide Area Networks, Metro,Test equipment, Active device termination and so on.

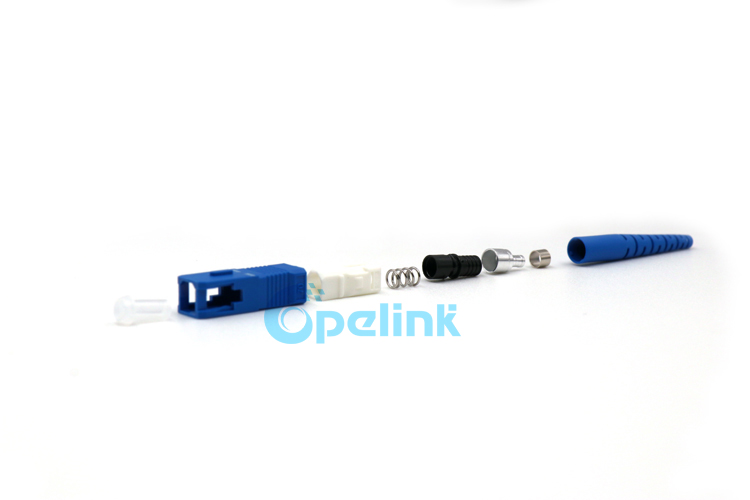

SC/PC Simplex Singlemode fiber Optic Connector, blue color


Features:
High quality ceramic components and Material
Simplex, duplex and higher core densities
0.9mm, 2mm, 3mm cable applications


Applications:
.Active device termination
.Telecommunication networks
.Metro
.Local Area Networks (LANs)
.Data processing networks
·Test equipment
·Precise installations
·Wide Area Networks (WANs)
·Industrial, medical & military





Specifications:
Connector Type SC,LC,FC,ST,MU,D4,DIN,etc
Fiber mode Singlemode Multimode
Test wavelength 1310nm, 1550nm 850nm, 1300nm
Insertion Loss typical≤0.20dB,Max≤0.30dB typical≤0.2dB,Max≤0.3dB
Return Loss UPC≥50.0dB,APC≥60.0dB
Ferrule Specification 125.3+1/-0μm, Concentricity: ≤1.0μm 127+3/-0μm, Concentricity: ≤3.0μm
Durability ≤0.20dB typical change,1000 mating
Applicative cable OD. 0.9mm/1.8mm&2.0mm /3.0mm
Connector Ferrule OD. 2.5mm:SC, FC,ST,DIN;   2.0mm:D4;   1.25mm:LC,MU
Angle BOOT SC,LC(45 or 90 degree)
Operating Temperature -20ºC to +70ºC
Storage Temperature -40ºC to +85ºC
Connector Ferrule Ceramic

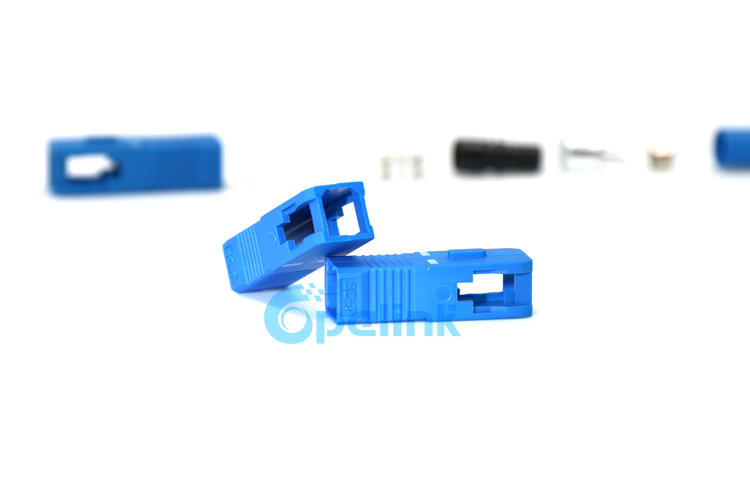

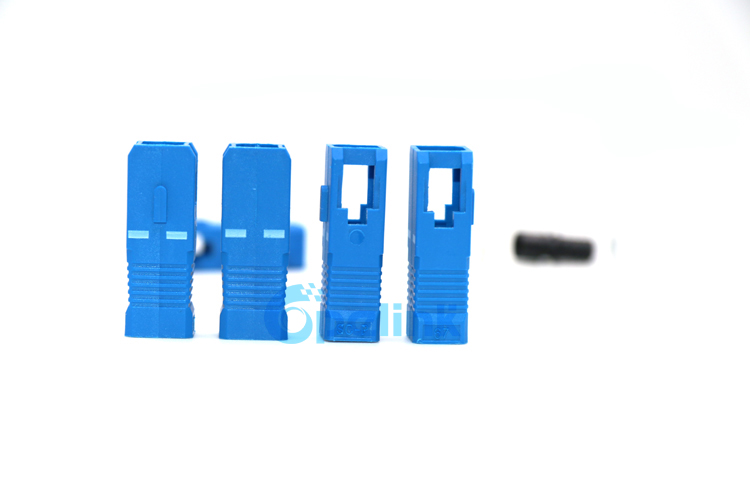

Connector Body UL 94V-0 rated Thermoplastic
to meet standard ammability ratings

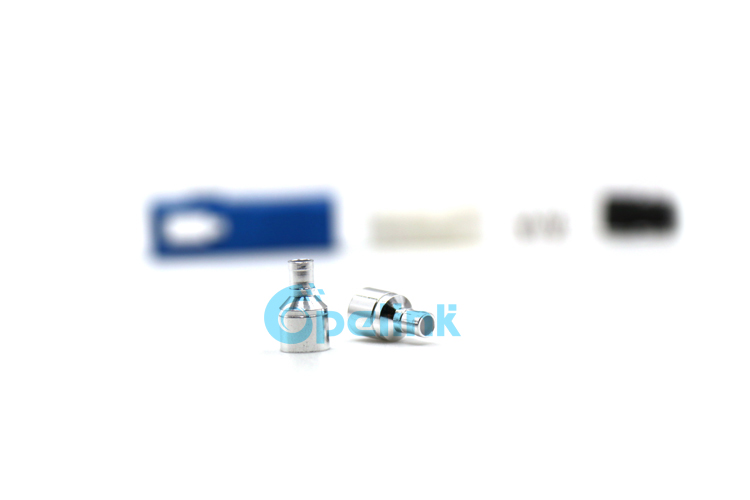

Crimp Insert/Crimp Tube  Nickel-Plated Brass/Thermoplastic
Elastomer Polymer
Dust Cap Nylon or PVC or PE
