LC/APC Simplex Singlemode Optical fiber connector LC Boot fiber Optic Connector

Item No.: Y-FO-CP-007
LC/APC Simplex Singlemode Optical fiber connector, Green Housing, with standardized and large-scale production, high reliability and stability.
Description Parameters Company Profile Related product
Description:
The fiber optic connector is one of the most basic passive components in the optical fiber communication. There are difference ferrule materials
(ceramic, plastic, metal), a variety of body and boot color to choose. Through the process of curing and polishing, etc., the connector is combined
with various of fiber optic cable and made into different kinds of patchcord (jumper), which have been widely applied to the CATV system,
Communications system, FTTx system, Local Area Networks, Wide Area Networks, Metro,Test equipment, Active device termination and so on.

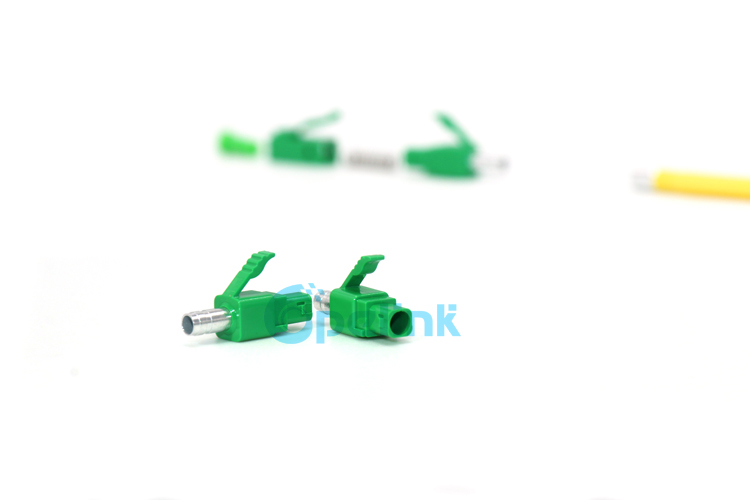

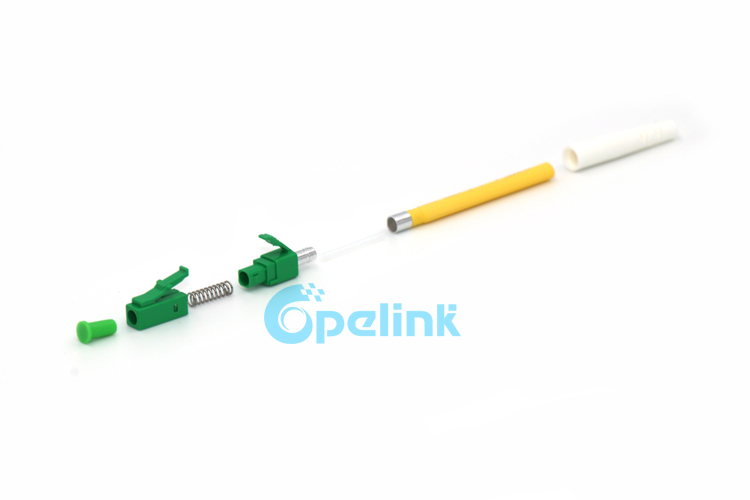

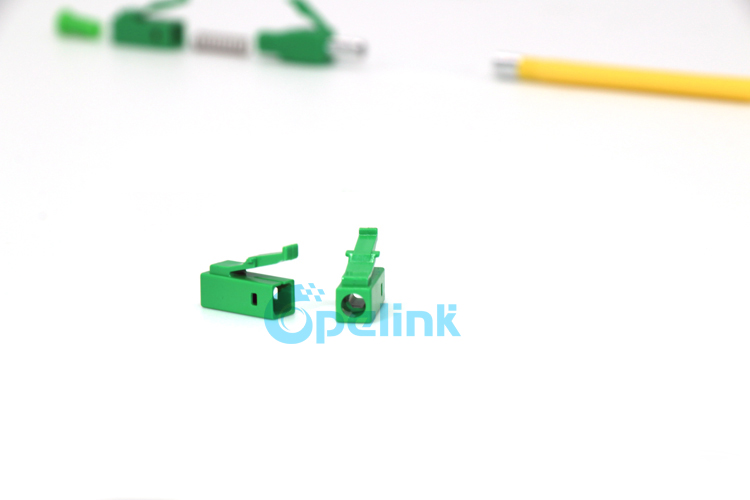

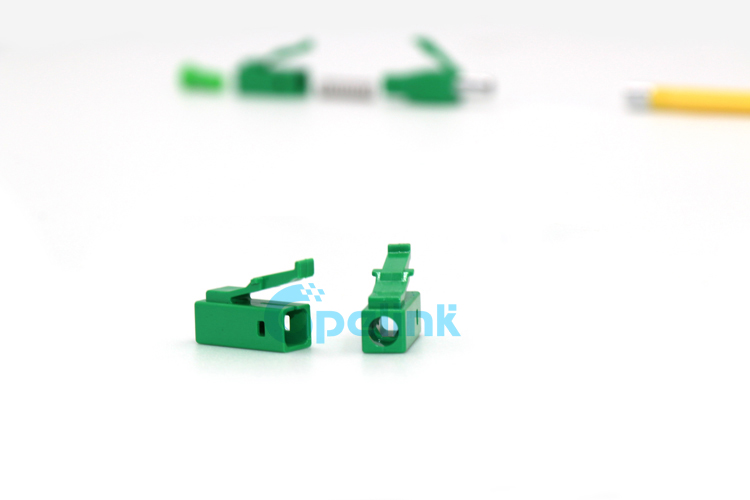

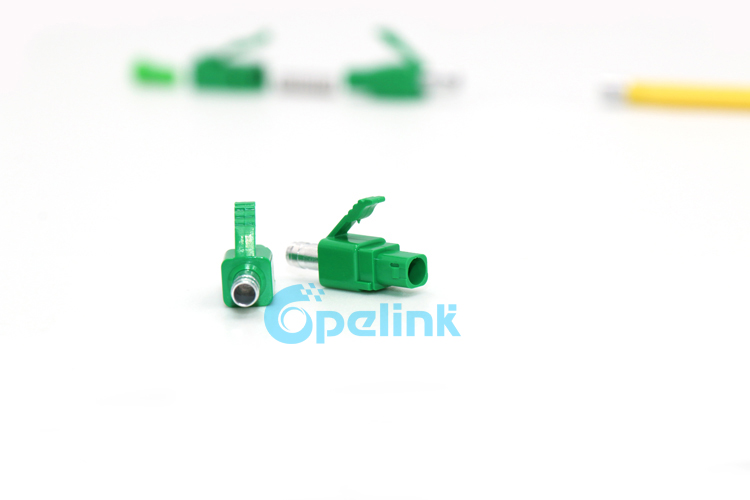

LC/APC Simplex Singlemode fiber Optic Connector, green color
Features:
Compliance with Telcordia, IEC, TIA/EIA,and JIS specifications
Corrosion resistant body
Precision mechanical dimension
UL-rated plastic housing and boots in a variety of colors
For 3.0mm, 2.0mm jacket or 900um buffer
ROHS compliant

Applications:
.Active device termination
.Telecommunication networks
.Metro
.Local Area Networks (LANs)
.Data processing networks
·Test equipment
·Precise installations
·Wide Area Networks (WANs)
·Industrial, medical & military





Specifications:
Connector Type SC,LC,FC,ST,MU,D4,DIN,etc
Fiber mode Singlemode Multimode
Test wavelength 1310nm, 1550nm 850nm, 1300nm
Insertion Loss typical≤0.20dB,Max≤0.30dB typical≤0.2dB,Max≤0.3dB
Return Loss UPC≥50.0dB,APC≥60.0dB
Ferrule Specification 125.3+1/-0μm, Concentricity: ≤1.0μm 127+3/-0μm, Concentricity: ≤3.0μm
Durability ≤0.20dB typical change,1000 mating
Applicative cable OD. 0.9mm/1.8mm&2.0mm /3.0mm
Connector Ferrule OD. 2.5mm:SC, FC,ST,DIN;   2.0mm:D4;   1.25mm:LC,MU
Angle BOOT SC,LC(45 or 90 degree)
Operating Temperature -20ºC to +70ºC
Storage Temperature -40ºC to +85ºC
Connector Ferrule Ceramic
Connector Body UL 94V-0 rated Thermoplastic
to meet standard ammability ratings
Crimp Insert/Crimp Tube  Nickel-Plated Brass/Thermoplastic
Elastomer Polymer
Dust Cap Nylon or PVC OR PE
