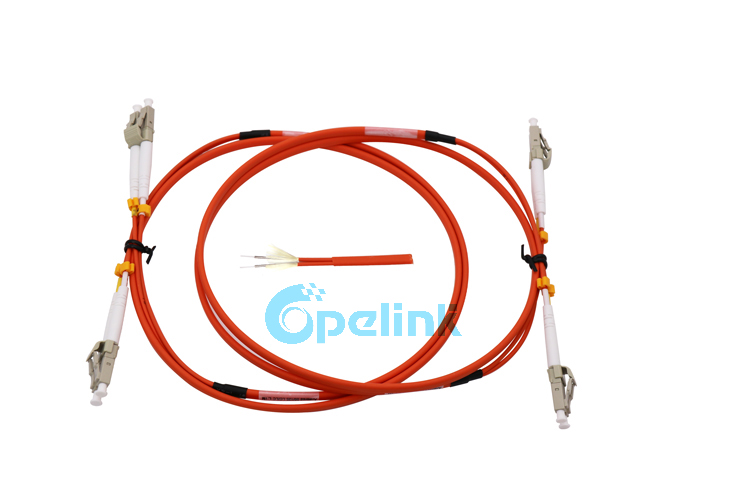

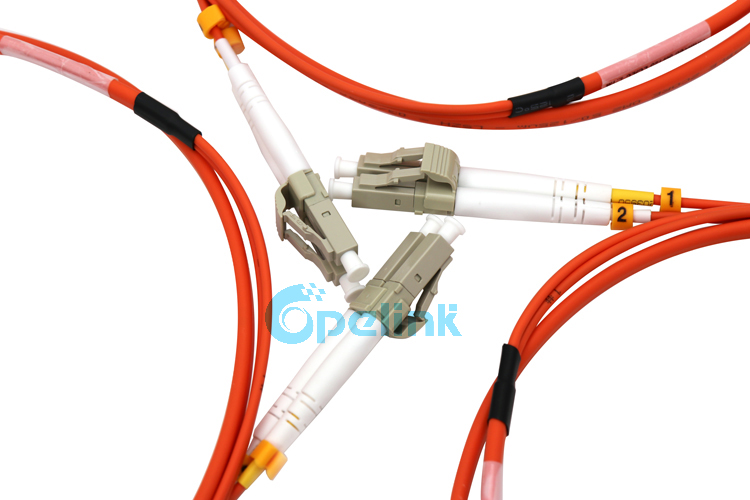

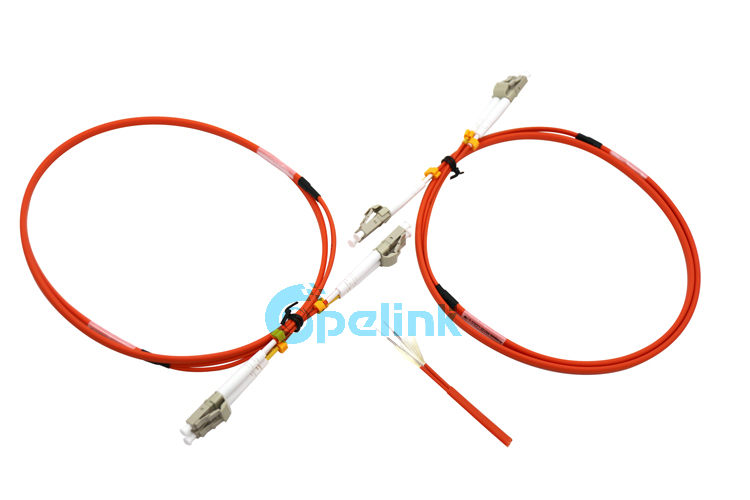

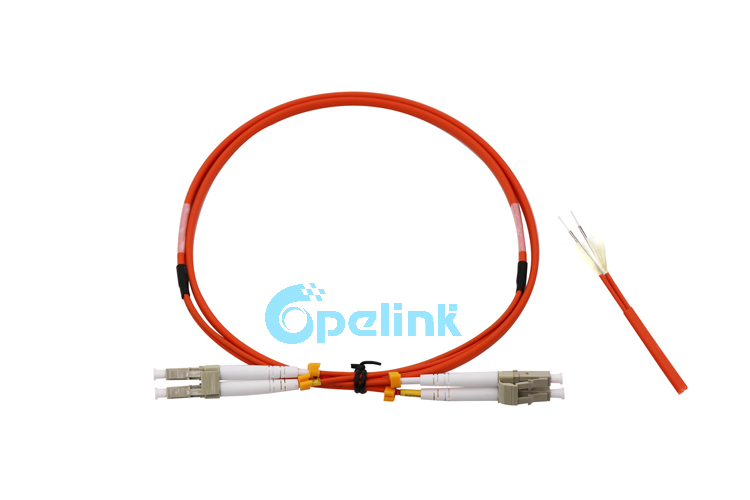

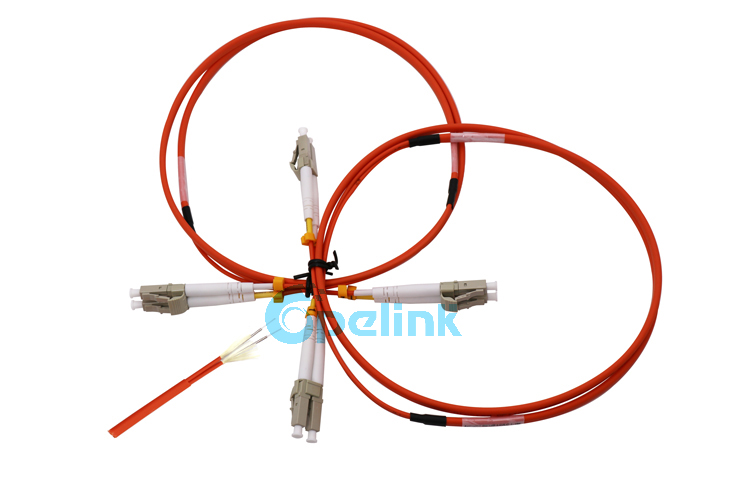

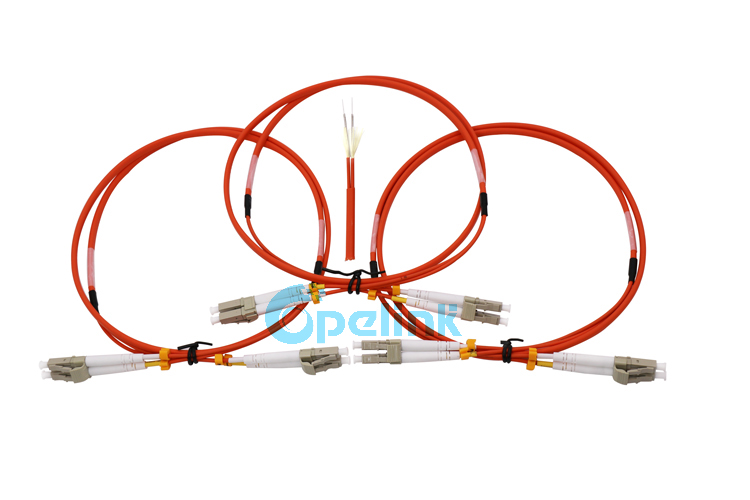

LC-LC Armored Fiber Optic Patch Cord , 2.0mm Duplex Fiber Cable

Item No.: Y-FO-FP-006
Armored Fiber optic patch cord can be installed in the most dangerous areas, including environments with too much dust, oil, gas, moisture, or even damage to rodents.
INQUIRY
Description Parameters Company Profile Related Product
Description:
The Armored Fiber optic patch cord can be installed in the most dangerous areas, including environments with too much dust,
oil, gas, moisture, or even damage to rodents.Our supply armored fiber optic patch cord, including OM4/ OM3, 9/125, 50/125,
62.5/125 fiber types. The armored fiber optic patch cords can be with SC, ST, FC, LC, MU, SC/APC, ST/APC, FC/APC, LC/APC
types of terminations.


Features:
Low insertion loss and High Return Loss
Good durability
Good exchangeability
High temperature stability
compliant with standards of Telcordia GR-326-CORE


Application:
Optical Fiber Communication Systems
Optical Access Network
Fiber optic data transmission
Optical Fiber CATV
Local Area Network (LAN)
Test Equipment


Product Introduction:
Connector:SC,FC,ST,LC,MU,MTRJ,E2000,  etc
Polishing type:PC,UPC,APC
Fiber Type:Singlemode(G652D,G657A),Multimode(OM1,OM2,OM3,OM4)
Cable Material:PVC-OFNR,PVC-OFNP,LSZH, etc
Patchcord Length:1m,2m,etc


Ordering information:
Type Fiber Core Cable Type Cable OD Cable Material Cable
Color
Connector
(A End –B End)
Patchcord
Length
PT=Patchcord
PY=Pigtail
S1=G652D
S2= G657A1
M1=50/125
M2=62.5/125
M3=OM3
M4=OM4
S7=G657A1
S8=G657B3
XX=other
01=simplex
02=Duplex
03=Armoured
04=Distribution
05=Ribbon
06=breakout
07=drop cable
XX=other
L=0.9mm
2=2.0mm
3=3.0mm
XX=other


1=PVC
2=LSZH


01=Blue  02=Orange
03=Green  04=Brown
05=Slate  06=White
07=Red  08=Black
09=Yellow  10=Violet
11=Rose  12=Aqua
13=12Color  XX=other
SU=SC/UPC   SA=SC/APC
FU=FC/UPC    FA=FC/APC
LU=LC/UPC    LA=LC/APC
ST=ST/UPC
MPO=MPO/PC  MPA=MPO/APC
00=NONE
XX=Other


0.5M=0.5M
10M=10M
XXX=other



Tags:
Fiber Optic PLC Splitter  | Optical CWDM/DWDM/AWG  | FTTH Drop Fiber Optic Cable  | Fiber Optic PatchCord/jumper/Patch cable  |
Fiber Optic Fast Connector  | Optical Switch  | Fiber Optic Adapter  | Fiber Optic Attenuator  | Fiber Optic Cable TerminalBox |



Optical Specifications:
Parameter Singlemode Patchcord/Pigtail Multimode Patchcord/Pigtail
Polishing  Type PC UPC APC PC
Insertion loss(dB) <=0.3dB,MTRJ<=0.5dB <=0.3dB <=0.3dB <=0.3dB,MTRJ<=0.5dB
Return loss(dB) >=45dB,MTRJ>=35dB >=55dB >=65dB
Operating temperature -20ºC~75ºC
Storage Temperature -40ºC~75ºC
100 mating cycles loss I.L changed≤0.1dB
Durability >1000 cycles

Geometric Specification:
Parameter PC Polishing APC Polishing
SC Type LC Type
R.O.C 10~25mm 7~25mm 5~12mm
Apex Offset <50um <50um <50um
Fiber Height -125nm-50nm   -100nm-100nm
Polishing Angle     8°± 0.3°
Note:For more details, please contact our sales
