FWDM vs. CWDM vs. DWDM: A Comprehensive Comparison for Optical Network Design

Update time : 2025-03-25 09:46:02

The explosion of data-intensive applications continues to push the boundaries of optical networking. Network architects face a constant challenge: how to cost-effectively scale capacity to meet ever-increasing bandwidth demands. Filter Wavelength Division Multiplexing (FWDM), Coarse Wavelength Division Multiplexing (CWDM), and Dense Wavelength Division Multiplexing (DWDM) offer distinct approaches to tackling this challenge, each with its own set of trade-offs. This article provides a detailed comparison of these three technologies, highlighting their key differences, advantages, and ideal use cases, empowering network professionals to make informed decisions for their specific needs.

Laying the Groundwork: Understanding the Core Principles

Before diving into the specifics, let's establish a clear understanding of each technology's underlying principles:
.Filter Wavelength Division Multiplexing (FWDM): FWDM leverages optical filters to selectively combine (multiplex) and separate (demultiplex) different wavelengths of light over a single optical fiber. These filters are designed to pass a specific range of wavelengths while reflecting others, enabling the simultaneous transmission of multiple signals. FWDM generally supports fewer wavelengths than DWDM but more than CWDM, positioning it as a mid-range solution in terms of capacity and cost.

.Coarse Wavelength Division Multiplexing (CWDM): CWDM is characterized by its relatively wide channel spacing, typically 20 nm. This wider spacing allows for the use of simpler, uncooled lasers, which significantly reduces system cost. However, the wide spacing limits the number of channels that can be supported on a single fiber, typically up to 18 channels across the entire optical spectrum. CWDM is primarily deployed in short-haul applications where cost is a paramount consideration.

.Dense Wavelength Division Multiplexing (DWDM): DWDM is the high-capacity workhorse of modern optical networks. It employs tightly spaced wavelengths, often with channel spacing as narrow as 0.4 nm (50 GHz grid) or even 0.2 nm (25 GHz grid), enabling the transmission of a significantly larger number of channels (80, 96, or even more) on a single fiber. DWDM systems rely on sophisticated technologies like cooled lasers, advanced modulation formats, and optical amplifiers to maintain signal integrity over long distances.

FWDM: Key Differences and Advantages

FWDM stands as a crucial middle ground between the cost-effectiveness of CWDM and the high capacity of DWDM. To fully appreciate its strengths, it's helpful to compare it directly against both of these technologies.

FWDM vs. CWDM:
.Channel Count and Capacity: FWDM supports a higher number of channels than CWDM. While CWDM is typically limited to 18 channels, FWDM systems can accommodate significantly more, offering greater overall capacity.
.Distance: FWDM generally supports longer distances than CWDM. While CWDM is typically limited to a few tens of kilometers, FWDM can extend to medium-haul distances, making it suitable for metro area networks.
.Component Complexity: FWDM components, particularly the optical filters, are generally more sophisticated than those used in CWDM. This increased complexity contributes to a higher overall system cost.
.Cost: FWDM systems are more expensive than CWDM systems due to the more complex components and higher channel count.
.Temperature Control: FWDM systems may, in some instances, require temperature control for the lasers and optical filters, whereas CWDM primarily uses uncooled lasers, simplifying the overall design.

Advantages of FWDM over CWDM:
1.Increased Capacity: FWDM offers a substantial increase in capacity compared to CWDM, enabling support for more bandwidth-intensive applications.
2.Extended Reach: FWDM can support longer distances than CWDM, making it suitable for metro area networks and other medium-haul applications.
3.Greater Scalability: FWDM offers better scalability than CWDM, allowing network operators to add or remove channels as needed to adapt to changing bandwidth demands.

FWDM vs. DWDM:
.Channel Count and Capacity: DWDM offers a significantly higher channel count and overall capacity than FWDM. DWDM systems can support 80, 96, or even more channels on a single fiber, while FWDM is limited to a smaller number of channels.
.Distance: DWDM is designed for long-haul applications, supporting transmission distances of thousands of kilometers with the aid of optical amplifiers. FWDM is limited to shorter distances.
.Component Complexity: DWDM systems are significantly more complex than FWDM systems, utilizing cooled lasers, EDFAs (Erbium-Doped Fiber Amplifiers), dispersion compensation modules, and sophisticated modulation formats.
.Cost: DWDM systems are significantly more expensive than FWDM systems due to the increased component complexity and advanced technologies employed.
.Temperature Control: DWDM systems require precise temperature control of the lasers and other optical components to maintain wavelength stability. FWDM systems may or may not require temperature control, depending on the specific implementation.

Advantages of FWDM over DWDM:
1.Lower Cost: FWDM systems are significantly less expensive than DWDM systems, making them a more affordable option for applications that don't require the extreme capacity and distance capabilities of DWDM.
2.Simplified Management: FWDM systems are generally simpler to manage and operate than DWDM systems, reducing operational complexity and costs.
3.Lower Power Consumption: FWDM systems typically consume less power than DWDM systems, contributing to lower operating expenses and reduced environmental impact.
4.Smaller Footprint: FWDM equipment often has a smaller physical footprint than DWDM equipment, which can be advantageous in space-constrained environments.

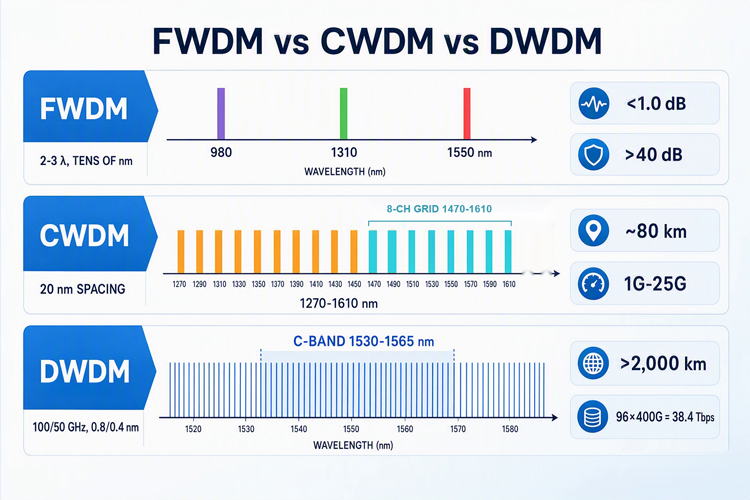

Comparative Table: FWDM vs. CWDM vs. DWDM

Application Scenarios and Use Cases

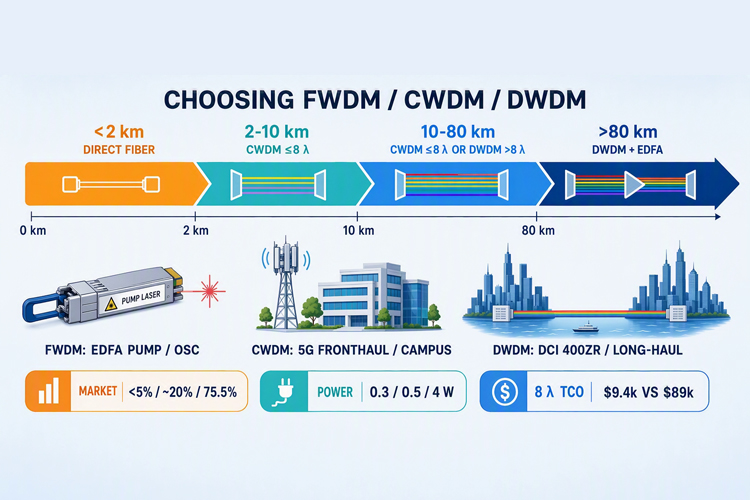

The selection of FWDM, CWDM, or DWDM depends heavily on the specific requirements of the network and the application. Here's a breakdown of typical use cases:
.CWDM: Ideal for short-haul links within data centers, access networks connecting residential subscribers, and applications where cost is the primary driver. Its simplicity and low cost make it attractive for connecting devices over short distances.
.FWDM: Well-suited for metro area networks (MANs), enterprise networks, and applications requiring moderate capacity growth over medium distances. Examples include connecting business campuses, providing backhaul for mobile networks, and supporting regional data transport.
.DWDM: The go-to technology for long-haul backbone networks, core networks for internet service providers (ISPs), and high-capacity data center interconnects (DCIs) spanning long distances. DWDM's high capacity and long reach capabilities make it essential for supporting bandwidth-intensive applications across wide geographical areas.

Factors Influencing the Choice

When deciding which WDM technology to deploy, consider the following factors:
.Bandwidth Requirements: What is the current bandwidth demand, and what is the expected growth rate?
.Distance: What is the maximum transmission distance required?
.Budget: What is the available budget for equipment and installation?
.Scalability: How easily can the network be scaled to meet future bandwidth demands?
.Operational Complexity: How complex is the network to manage and maintain?
.Power Consumption: What are the power consumption requirements and associated costs?
.Physical Space: Is there limited space for equipment?

Emerging Trends and Future Directions

The field of optical networking is continuously evolving. Here are some key trends to watch:
.Disaggregation and Open Optical Networking: The move toward disaggregated optical networking, where network operators can mix and match equipment from different vendors, is gaining momentum. This provides greater flexibility and cost savings.
.Silicon Photonics: Silicon photonics is emerging as a disruptive technology that promises to lower the cost and power consumption of optical transceivers. This could make DWDM more accessible for a wider range of applications.
.Coherent Optics: Coherent detection and modulation techniques are enabling higher data rates and longer reach in DWDM systems. These technologies are essential for meeting the ever-increasing bandwidth demands.
.Software-Defined Networking (SDN): SDN is revolutionizing network management by providing centralized control and automation. SDN can be used to optimize the performance of WDM networks and simplify wavelength provisioning.
.Artificial Intelligence (AI) and Machine Learning (ML): AI and ML are being applied to improve network monitoring, fault diagnosis, and capacity planning in WDM networks. These technologies can help network operators optimize performance and reduce operational costs.

Conclusion
FWDM, CWDM, and DWDM each offer distinct advantages and disadvantages. CWDM provides the lowest cost and simplest implementation for short-haul applications. DWDM delivers the highest capacity and longest reach for core networks. FWDM occupies a strategic middle ground, balancing cost and capacity for metro area networks and enterprise applications. By carefully considering the specific requirements of their networks, network architects can select the WDM technology that best fits their needs, ensuring efficient and cost-effective bandwidth delivery. The decision process should also factor in future scalability requirements and emerging technological trends to ensure long-term network viability.

FAQs
1. What are the primary cost drivers for FWDM, CWDM, and DWDM systems?
The primary cost drivers for each WDM technology vary based on their component complexity and performance requirements. For CWDM, the laser source represents a significant portion of the cost, even though they are uncooled. The cost of optical filters and the multiplexers/demultiplexers are secondary cost components. For FWDM, the precision of the optical filters used for wavelength separation and combination is a major cost contributor. Higher channel counts also contribute to the overall system cost. For DWDM, the cooled lasers required for precise wavelength control represent a significant cost. Additionally, optical amplifiers, dispersion compensation modules, and the complex network management systems contribute substantially to the overall system cost. The advanced modulation techniques employed also increase the transponder cost.

2. How does chromatic dispersion impact the performance of FWDM, CWDM, and DWDM systems, and what mitigation techniques are used?
Chromatic dispersion, the spreading of optical pulses as they travel through the fiber, significantly impacts the performance of all WDM systems. In CWDM, the wider channel spacing makes it more susceptible to chromatic dispersion effects, limiting its transmission distance. Dispersion compensation techniques are generally not used due to the shorter distances and cost constraints. In FWDM, chromatic dispersion is a concern, especially at higher data rates and longer distances. Dispersion compensating fibers (DCF) can be used to mitigate the effects. In DWDM, chromatic dispersion is a major challenge due to the high data rates and long distances. Sophisticated dispersion management techniques, including the use of DCF, fiber Bragg gratings, and electronic dispersion compensation (EDC), are essential for maintaining signal integrity. Coherent detection also helps in mitigating dispersion effects.

3. What role does optical add-drop multiplexing (OADM) play in FWDM, CWDM, and DWDM networks?
Optical Add-Drop Multiplexing (OADM) plays a crucial role in efficiently managing wavelengths in WDM networks. Fixed OADMs are commonly used in CWDM and FWDM networks to selectively add or drop specific wavelengths at intermediate nodes. However, these systems lack flexibility. Reconfigurable OADMs (ROADMs) are primarily used in DWDM networks to provide dynamic wavelength routing and network reconfiguration. ROADMs allow network operators to remotely add, drop, or redirect wavelengths without manual intervention, enhancing network flexibility and resilience. While ROADMs are typically associated with DWDM, they can also be used in FWDM networks to provide greater flexibility.

4. How do different modulation formats, such as NRZ, DPSK, and QAM, affect the performance and reach of DWDM systems?
Different modulation formats significantly impact the performance and reach of DWDM systems. Non-Return-to-Zero (NRZ) is a simple modulation format but offers limited spectral efficiency and distance capabilities. Differential Phase-Shift Keying (DPSK) offers improved spectral efficiency and robustness to fiber impairments compared to NRZ. Quadrature Amplitude Modulation (QAM), such as 16QAM and 64QAM, provides higher spectral efficiency, enabling higher data rates per channel. However, QAM formats are more susceptible to noise and fiber impairments, requiring more sophisticated signal processing techniques. Coherent detection combined with advanced modulation formats like Polarization-Multiplexed QAM (PM-QAM) is essential for achieving high data rates and long distances in modern DWDM systems. The choice of modulation format depends on the specific application requirements and the trade-off between data rate, distance, and cost.

5. What are some best practices for designing and deploying a reliable and scalable FWDM network?
Designing and deploying a reliable and scalable FWDM network requires careful planning and adherence to best practices. Conduct a thorough network assessment to determine bandwidth requirements, distance limitations, and future growth projections. Select high-quality optical filters with narrow bandwidth and low insertion loss to minimize crosstalk and signal degradation. Optimize channel allocation to maximize capacity and minimize interference. Implement robust monitoring and management systems to track network performance and identify potential issues. Provide adequate temperature control for lasers and optical filters to maintain wavelength stability. Use dispersion compensating fibers (DCF) to mitigate the effects of chromatic dispersion. Design the network with scalability in mind, allowing for easy addition or removal of channels as needed. Adhere to industry standards for cabling and connectorization to ensure reliable performance. Thoroughly test and validate the network before deployment to identify and address any potential issues.
