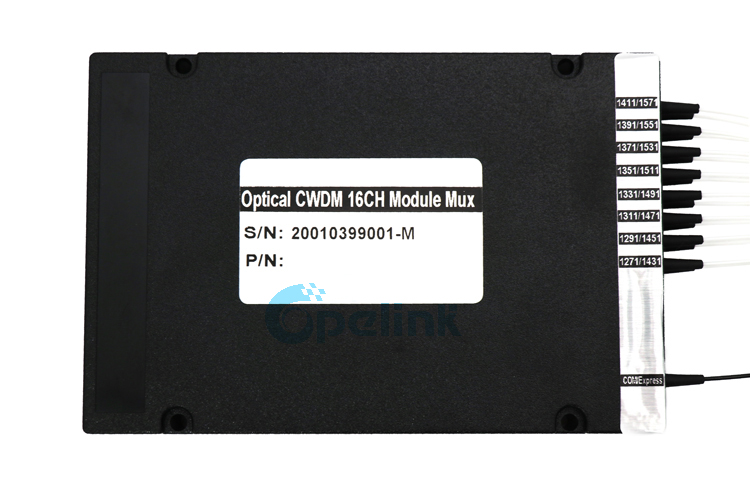

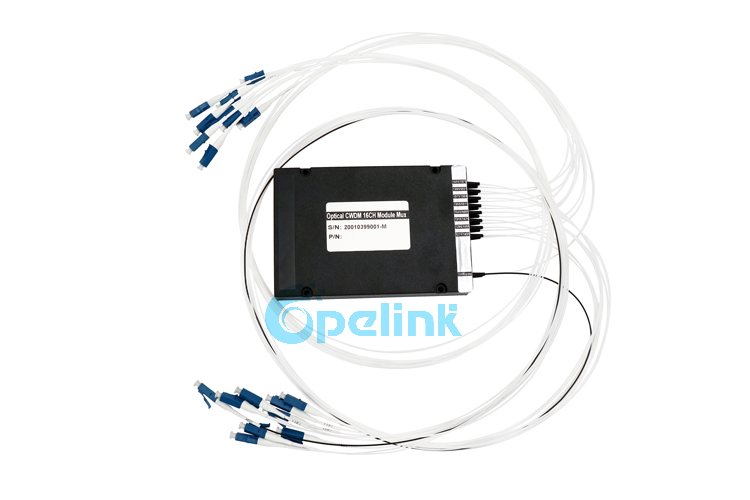

16CH CWDM Module, 0.9mm LC/PC ABS BOX Mux Demux Optical CWDM with Express port

Item No.: Y-FO-WD-058
CWDM (Coarse Wavelength Division Multiplexer) Utilizes Thin Film Coating Technology and Proprietary Design of Non-flux Metal Bonding Micro Optics Packaging.
Description Parameters Company Profile Related Product
Description:

        Coarse Wavelength Division Multiplexer (CWDM) Utilizes Thin Coating Technology and Proprietary Design of Non-flux Metal Bonding
Micro Optics Packaging. It provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free
optical path.Our CWDM Mux Demux products provide up to 18-channel Multiplexing on a single fiber.

        Due the the low insertion loss is needed in WDM networks, we can also add “Skip Component” in a CWDM Mux/Demux module to
reduce the IL as an option. Standard CWDM Mux/Demux package type include: ABS box package, LGX pakcage and 19” 1U rackmount.

16CH CWDM Module, This is a cost-effective product from Opelink

Features:

High  Isolation

Compact  Design

Low insertion loss, low PDL

High Reliability and Stability

Good channel-to-channel uniformity


Application:

CATV LINKS

CWDM System

PON NET Works

CWDM OADM  Network



Order Information:
Type Upgrade Port Port Wavelength Pigtail Fiber Length Connector
(Input-Output)
Package
M=Mux
D=Demux
M+D=Mux+ Demux


U= Yes
0= No
1002=1X2   1004=1X4
1008=1X8
1016=1X16
XX=other
27=1270
47=1470
49=1490
61=1610
Or
271=1271
471=1471
491=1491
611=1611



L=900um loose  tube
2=2.0mm
3=3.0mm
B= baare fiber
A= Adaptor
S1=G652D
S2=G657A1
X= other
0.5M=0.5M
1M=1.M
X=other
SU=SC/UPC
SA=SC/APC
FU=FC/UPC
FA=FC/APC
ST=ST/UPC
 LA=LC/APC
LU=LC/UPC
 00=NONE
XX= other
01,02,03,04,05
H,L,U,G,X


Optical Specifications:
Parameter Value
Channels Number 2 4 8 16 18
Central Wavelength(nm) ITU-T Grid
Bandwidth(@0.5dB Pass band)(nm) ITU-T ±6.5
Channel Pass band(nm) 20
I.L(dB) Typ. 1.2 1.6 2.2 3.2 3.8
MAX. 1.4 1.8 2.8 5.0 5.6
Ripple(dB) ≤0.3
PDL(dB) ≤0.10 ≤0.15 ≤0.20 ≤0.25 ≤0.30
Isolation(dB) Adjacent Channel ≥30
Non-adjacent Channel ≥45
Directivity(dB) ≥50
R.L(dB) ≥45
Operating Temperature(℃) -5~+75
Storage Temperature(℃) -40~85
Note:
1.All the data above does not include connectors
2.For more details, please contact our sales
