Application of Various Types of Fiber Optic Patch Cord in Optical Fiber Communication System

Views : 1032
Update time : 2024-03-13 09:29:50
In the world of optical fiber communication systems, fiber optic patch cords play a crucial role in establishing reliable connections between devices. These cords are used to connect different components of the network, such as fiber optic cables, transceivers, switches, and routers. Understanding the various types of fiber optic patch cords and their applications is essential for building a robust and efficient communication infrastructure.

1. Single-mode Fiber optic Patch Cord
The single-mode fiber optic patch cord is designed for long-distance communication with minimal signal loss. It utilizes a smaller core diameter, allowing only a single mode of light to propagate through the fiber. These patch cords are commonly used in applications like long-haul telecommunications, cable television networks, and campus backbones.

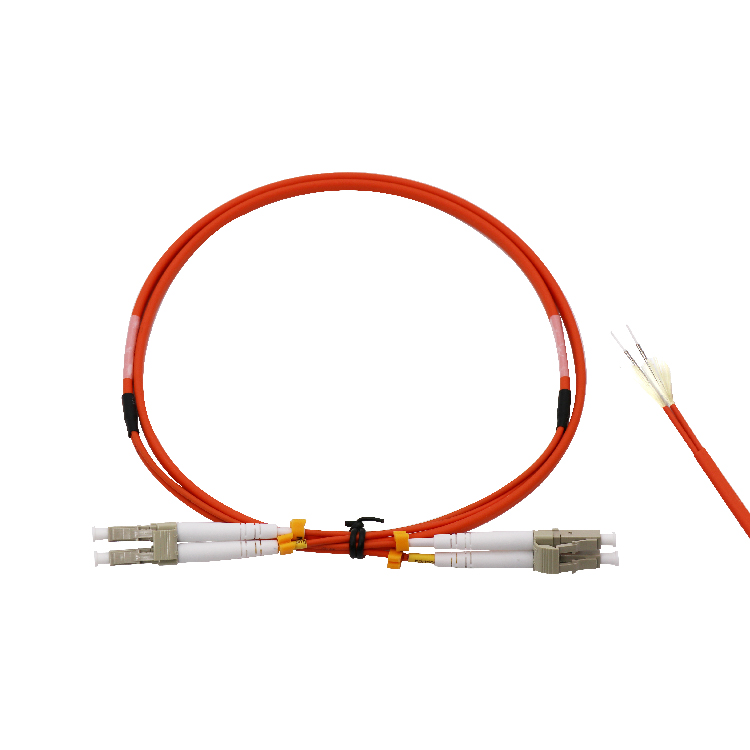

2. Multimode Fiber optic Patch Cord
Unlike single-mode Fiber optic patch cords, multimode Fiber optic patch cords have a larger core diameter. They allow multiple modes of light to travel simultaneously, making them suitable for shorter distances. Multimode patch cords are often used in local area networks (LANs), data centers, and fiber-to-the-desk applications.

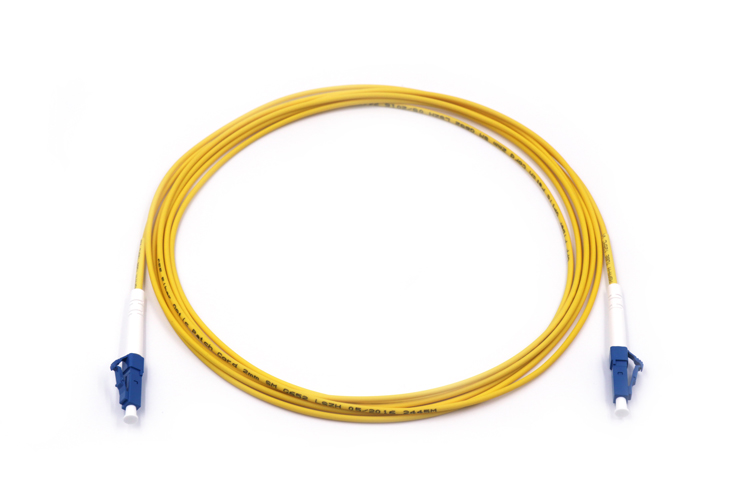

3. Simplex Fiber optic Patch Cord
A simplex Fiber optic patch cord consists of a single fiber and is used for transmitting signals in one direction. These patch cords are commonly employed in applications where unidirectional communication is required, such as video transmission systems and some industrial applications.

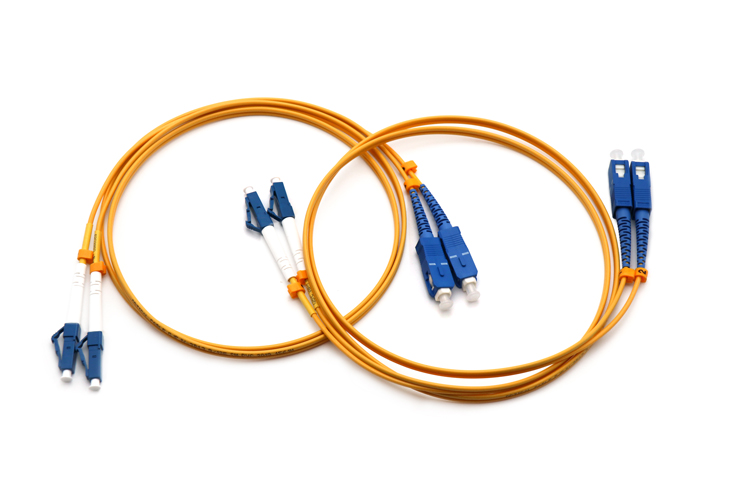

4. Duplex Fiber optic Patch Cord
Duplex Fiber optic patch cords are composed of two fibers, usually color-coded to identify the transmit and receive channels. They facilitate bidirectional communication by allowing signals to be transmitted and received simultaneously. Duplex patch cords are extensively used in applications like Ethernet connections, telephony systems, and fiber optic data links.


5. Armored Fiber optic Patch Cord
Armored Fiber optic patch cords are designed to provide extra protection to the fiber cable, making them resistant to physical damage. They feature a metal armor surrounding the fiber, shielding it from excessive bending, crushing, or rodent bites. Armored patch cords are commonly used in harsh environments, outdoor installations, and industrial settings.

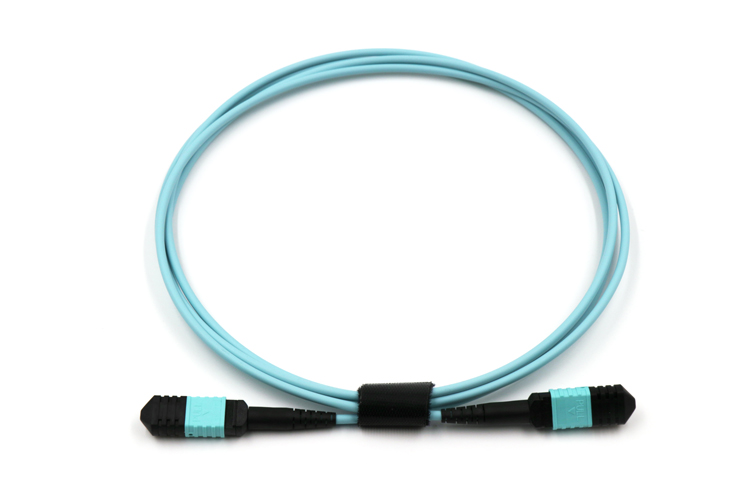

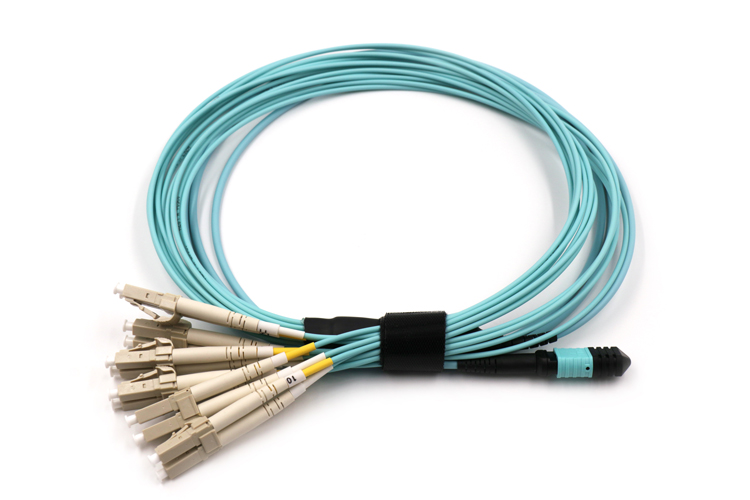

6. MPO/MTP Fiber optic Patch Cord
MPO/MTP Fiber optic patch cords incorporate multiple fibers within a single connector, enabling high-density connections. They are used in applications where multiple fibers need to be connected simultaneously, such as high-speed data transmission, data centers, and backbone networks.


7. Mode Conditioning Fiber optic Patch Cord
Mode conditioning patch cords are primarily used in Gigabit Ethernet applications. They are designed to enable the use of single-mode transceivers with multimode fiber infrastructure. These patch cords eliminate the issue of differential mode delay, ensuring optimal signal quality and minimizing data transmission errors.

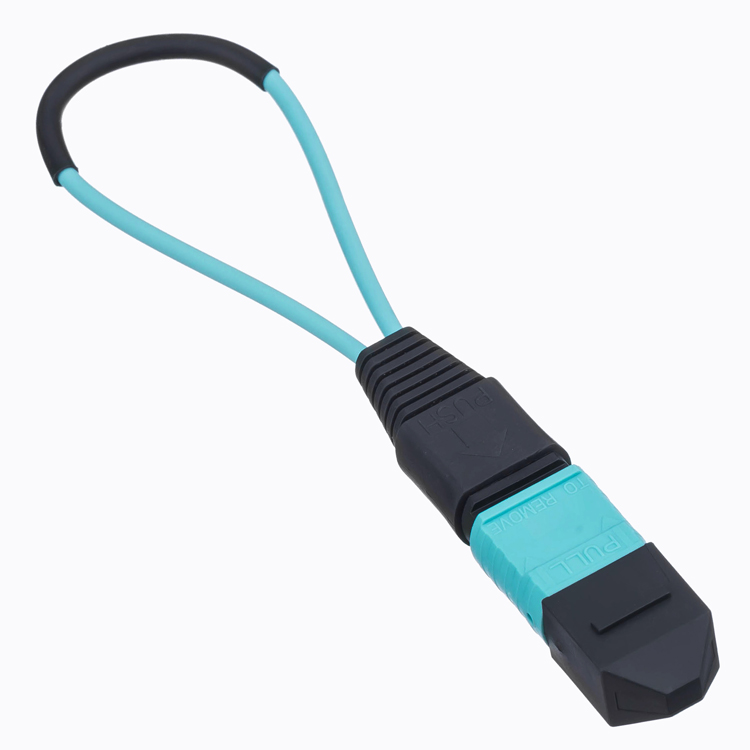

8. Loopback Fiber optic Patch Cord
Loopback patch cords are used for diagnostic and testing purposes. They create a loopback connection by connecting the transmit and receive channels, allowing for the verification of equipment functionality and troubleshooting.


9. Bidi Fiber optic Patch Cord
Bidi (bidirectional) Fiber optic patch cords enable bidirectional transmission using only a single fiber. They utilize special transceivers that combine both transmit and receive functions on separate wavelengths. Bidi patch cords are typically utilized when a limited number of fibers are available or when cost-effective solutions are required.

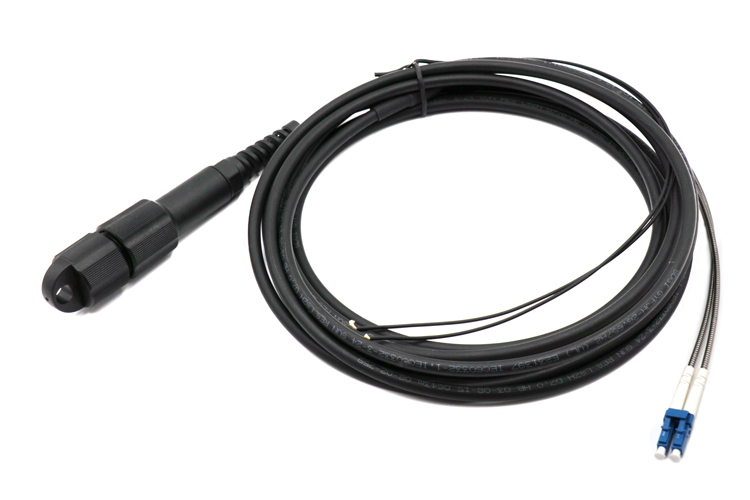

10. Waterproof Fiber optic Patch Cord
Waterproof Fiber optic patch cords are specifically designed to withstand moisture and harsh environmental conditions. They feature additional sealing protection, preventing water ingress and maintaining reliable performance in outdoor or wet environments.



Conclusion
The effective utilization of different types of fiber optic patch cords is crucial in building robust and efficient optical fiber communication systems. Whether it's for long-distance communication, short-range connectivity, unidirectional or bidirectional transmission, or specialized applications, selecting the appropriate patch cord is essential for ensuring optimal performance and reliability.

FAQs
Q1. Can a single-mode Fiber optic patch cord be used in a multimode fiber optic network?
A1. It is not recommended to use a single-mode patch cord in a multimode fiber optic network. The compatibility between the patch cord and the fiber mode should be ensured for seamless communication and minimal signal loss.

Q2. How can I identify the transmit and receive channels in a duplex Fiber optic patch cord?
A2. Duplex patch cords are typically color-coded, with one fiber designated for the transmit channel and the other for the receive channel. Common color schemes include orange for transmit and green for receive, or blue for transmit and beige for receive.

Q3. What is the advantage of using armored Fiber optic​​​​​​​ patch cords in industrial environments?
A3. Armored patch cords provide enhanced protection against physical damage, making them ideal for industrial environments where cables may be exposed to harsh conditions, excessive bending, or potential rodent interference.

Q4. Are MPO/MTP Fiber optic patch cords backward compatible with standard connectors?
A4. Yes, MPO/MTP patch cords are backward compatible with standard connectors. They can be used with adapters to connect to devices with traditional connectors, ensuring flexibility and easy integration into existing systems.

Q5. Are loopback Fiber optic​​​​​​​ patch cords used only for testing purposes?
A5. Yes, loopback patch cords are primarily used for diagnostic and testing purposes. They allow equipment functionality verification and troubleshooting, ensuring reliable performance and identifying potential issues in the network.
