Exploring Optical Attenuator Types and Applications: A Comprehensive Guide for Professionals

Update time : 2024-03-18 09:31:20

Introduction

Optical attenuators are essential components in fiber optic communication systems, used to adjust the intensity of optical signals. By reducing the power level of light signals, optical attenuators help maintain signal quality, prevent overloading of receivers, and optimize network performance. In this article, we will delve into the various types of optical attenuators, their applications, best practices for deployment, and key considerations for professionals working in the field of fiber optic communications.

Types of Optical Attenuators

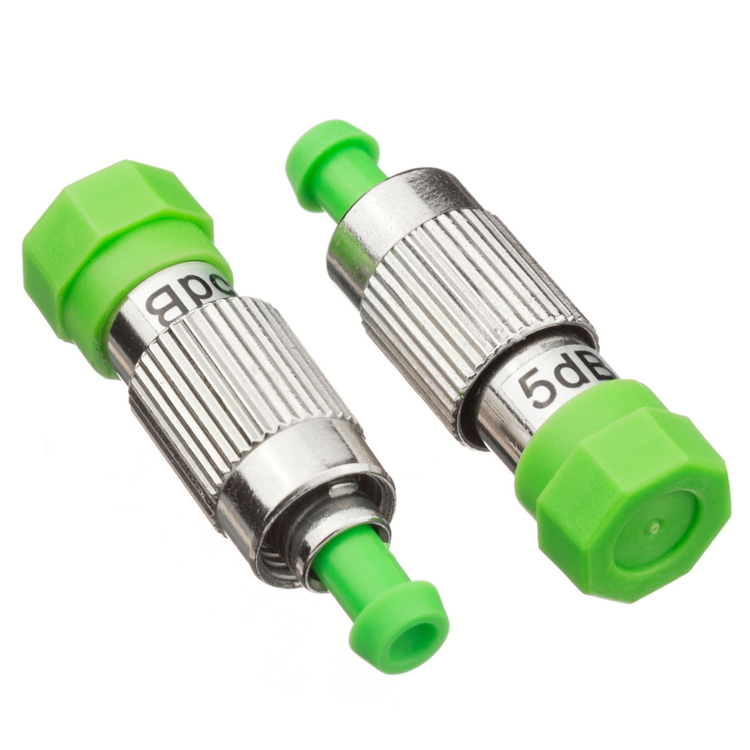

Fixed Optical Attenuators: Fixed optical attenuators provide a constant level of attenuation, typically in the range of 1dB to 30dB. These attenuators are available in different connector types (such as SC, LC, or FC) and offer a simple and cost-effective solution for achieving consistent signal reduction in fiber-optic networks.

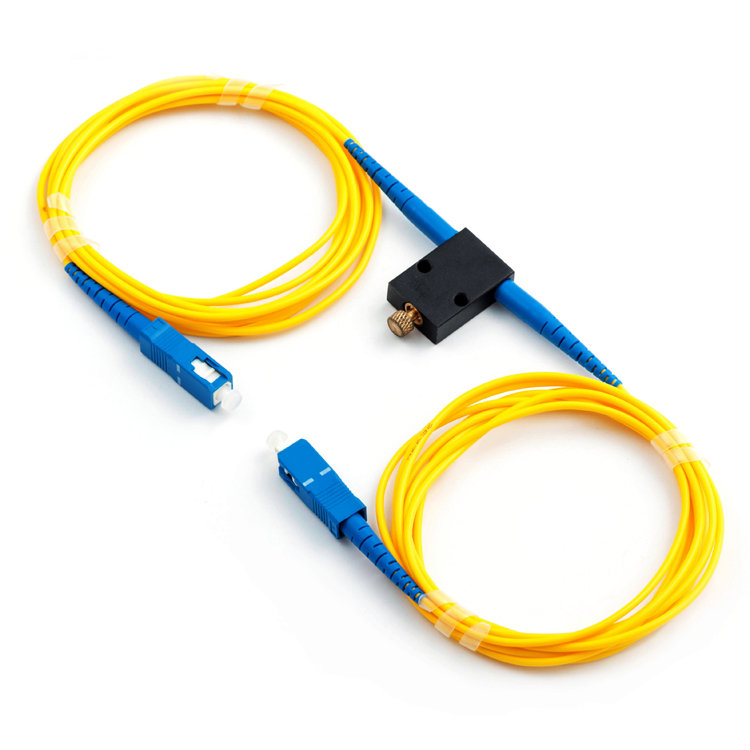

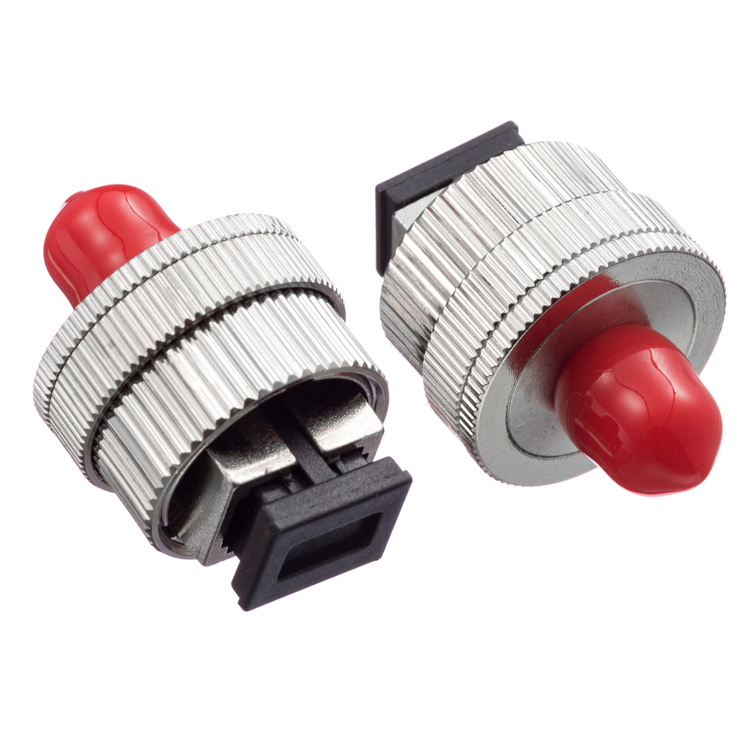

Variable Optical Attenuators: Variable optical attenuators allow for adjustable attenuation levels, offering flexibility in fine-tuning signal intensity. These attenuators often utilize mechanical, electrical, or optical methods to adjust attenuation levels and are commonly used in testing, measurement, and calibration applications.

Inline Optical Attenuators: Inline optical attenuators are integrated directly into the fiber-optic link, allowing for precise control of signal power without the need for additional patch cords or connectors. These attenuators are ideal for situations where space is limited, and precise signal adjustment is required.

Applications of Optical Attenuators

Network Testing and Calibration: Optical attenuators are used in network testing applications to simulate varying signal conditions and ensure accurate performance measurements. By adjusting signal power levels, attenuators help validate network integrity, assess transmission quality, and troubleshoot connectivity issues.

Receiver Protection: Optical attenuators are deployed in fiber optic networks to protect sensitive receivers from damage due to excessively high optical power levels. By attenuating incoming signals to safe operating levels, these attenuators prevent signal distortion, improve signal-to-noise ratios, and extend the lifespan of optical components.

Equalization and Optimization: Optical attenuators are utilized to equalize signal power levels and optimize transmission performance in multi-channel or long-haul fiber-optic links. By fine-tuning signal intensities, attenuators help minimize signal degradation, enhance system robustness, and ensure consistent data transfer rates.

Best Practices for Optical Attenuator Deployment

Proper Connector Compatibility: Ensure that optical attenuators are compatible with the connector types used in the fiber-optic network to prevent signal loss and maintain reliable connections.

Precise Attenuation Level Selection: Select the appropriate attenuation level based on the specific requirements of the network application to achieve optimal signal performance and minimize signal distortion.

Regular Calibration and Maintenance: Periodically calibrate and inspect optical attenuators to verify attenuation accuracy, detect any performance deviations, and ensure consistent signal attenuation throughout the network.

Conclusion

In conclusion, optical attenuators are indispensable components in fiber optic communication systems, offering precise control over signal power levels and enhancing network performance. By understanding the different types of optical attenuators, their applications, and deployment best practices, professionals can effectively integrate attenuators into their fiber optic networks to optimize signal quality, protect optical components, and improve overall system reliability.

FAQs
Q1.What are the key factors to consider when selecting an optical attenuator?
When selecting an optical attenuator, key factors to consider include attenuation range, connector type compatibility, wavelength range, insertion loss, return loss, and environmental conditions. It is essential to choose an attenuator that meets the specific requirements of the network application to ensure optimal performance and reliability.

Q2.How do fixed and variable optical attenuators differ in terms of functionality?
Fixed optical attenuators provide a constant level of attenuation, whereas variable optical attenuators allow for adjustable attenuation levels. Fixed attenuators are suited for applications requiring consistent signal reduction, while variable attenuators offer flexibility in adjusting signal intensity to meet varying network demands.

Q3.What are the common deployment scenarios for optical attenuators in fiber-optic networks?
Optical attenuators are commonly deployed in network testing and calibration, receiver protection, equalization, and signal optimization applications. They are used to simulate varying signal conditions, protect receivers from damage, equalize signal power levels, and enhance transmission performance in fiber-optic networks.

Q4.How can professionals ensure proper installation and alignment of optical attenuators in a network?
To ensure proper installation and alignment of optical attenuators, professionals should carefully inspect connector compatibility, verify proper insertion and return loss values, calibrate attenuation levels accurately, and document attenuation settings for reference during network maintenance and troubleshooting.

Q5.What are the typical attenuation levels available in optical attenuators, and how do they impact signal transmission?
Typical attenuation levels in optical attenuators range from 1dB to 30dB, with finer increments available in variable attenuators. Attenuation levels impact signal transmission by controlling the intensity of light signals, reducing power levels to optimize performance, prevent signal distortion, and protect receivers from excessive optical power.

Keywords: Optical Attenuators, Fiber Optic Communication, Signal Calibration, Network Testing, Receiver Protection, Signal Optimization
