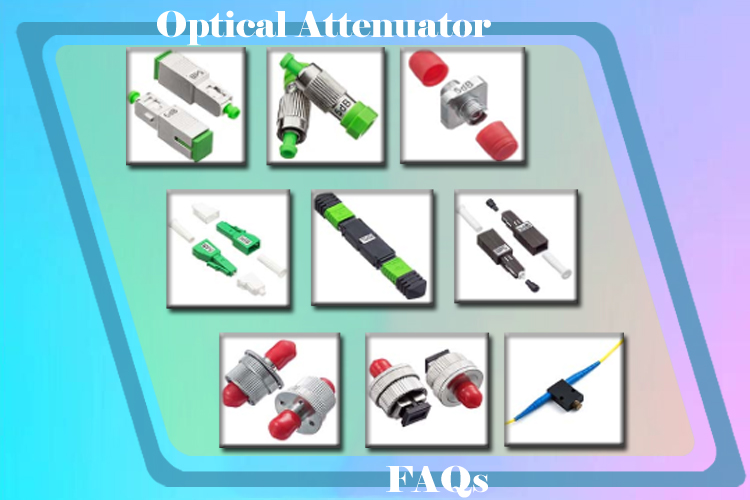

Optical Attenuator FAQs

Optical Attenuator FAQs

In today's digital age, the demand for high-speed and reliable communication networks has skyrocketed. As a result, the field of optical communication has gained tremendous importance. Optical fibers, with their ability to transmit vast amounts of data over long distances, have become the backbone of modern communication systems. However, the efficient functioning of these networks is heavily reliant on the control of light signals. This is where optical attenuators come into play.

1. Why do we need optical attenuators?
Optical attenuators play a critical role within the communications industry, specifically in the realm of fiber-optic networks. These essential devices are designed to reduce the power level of optical signals when transmitted through long distances or when the signal strength is too strong for the receiving equipment.
There are several reasons why optical attenuators are necessary:

1). Signal strength control: Optical attenuators are used to decrease the power level of signals, allowing for controlled signal strengths within the system. This helps avoid signal saturation or distortion, ensuring the proper functioning of electronic devices.

2). Signal balancing: In multi-channel fiber-optic communication systems, some channels might have varied signal strengths. Optical attenuators help to balance the power levels among different channels, preventing cross-talk or interference.

3). Dynamic range extension: Optical attenuators enable the extension of devices’ dynamic range, allowing for the accommodation of varying signal strengths.

4). Test and measurement: Attenuators are an essential tool for the calibration and testing of fiber-optic communication equipment, ensuring that the devices meet required specifications.

In summary, optical attenuators are critical in guaranteeing the smooth operation and performance of fiber-optic communications systems.


2. What are the common types of optical attenuators?
Optical attenuators come in a variety of designs, each with its specific function and application. The most common types of optical attenuators are:

1). Fixed Attenuators: These attenuators provide a predetermined level of attenuation, making them ideal for applications that require a stable and constant power reduction.

2). Variable Attenuators: These devices allow users to adjust the level of attenuation depending on the requirements of the system. This flexibility makes them suitable for various applications, including testing and maintenance scenarios.

3). In-line Attenuators: In-line attenuators are incorporated into the optical fiber path, enabling seamless attenuation along the communication line. Examples of in-line attenuators include loopback, plug-style, and bulkhead-style attenuators.

4). Optical Variable Attenuators (OVAs): OVAs utilize a combination of mechanical and electrical components to control the attenuation level dynamically. These devices are commonly used in research, development, and testing applications.

Understanding the specific characteristics and applications of each type of optical attenuator helps engineers and technicians make informed decisions when designing or maintaining fiber-optic networks.


3. How do optical attenuators work?
Optical attenuators function by absorbing, reflecting, or scattering a portion of the incoming optical signal, effectively reducing its power level. The type of attenuation method employed largely depends on the attenuator design and technology used. Some common mechanisms include:

1). Absorption: Absorptive optical attenuators use specific materials that absorb a portion of the incident light, reducing the overall signal strength. The absorbed light then dissipates as heat within the attenuator.

2). Reflection: Reflective attenuators utilize specialized coatings or surfaces to reflect the incident light back toward its source, effectively reducing the amount of light that progresses through the device.

3). Scattering: Scattering attenuators consist of materials or structures that scatter the incoming light in multiple directions, decreasing the transmission efficiency and thus the signal power.

The working principle behind an optical attenuator may vary depending on its design and application, but all attenuators aim to provide controlled power reduction to ensure smooth communication in fiber-optic networks.


4. What are the key parameters for optical attenuators?
Choosing the right optical attenuator for a specific application depends on several key parameters, including:

1). Attenuation range: This refers to the range of power reduction that an attenuator can provide. Engineers must consider the specific needs and requirements of the system to determine the appropriate attenuation range.

2). Insertion loss: Insertion loss measures the power lost when the attenuator is inserted into the system. Ideally, an optical attenuator should have low insertion loss to minimize signal degradation.

3). Return loss: Return loss refers to the proportion of reflected signal power in comparison to the incident power when the attenuator is connected to the system. A high return loss is desirable to reduce signal reflection and interference.

4). Attenuator type: As mentioned earlier, several types of optical attenuators are available, each with distinct characteristics and applications. Engineers must consider the specific requirements of a given system to select the most appropriate attenuator.

5). Wavelength range: Different optical attenuators may cover different wavelength ranges. It is crucial to select an attenuator capable of handling the required wavelength range for the fiber-optic network.

By evaluating these key parameters, engineers and technicians can make informed decisions to choose the most suitable optical attenuator for their fiber-optic communication systems.


5. What is the typical price range for optical attenuators?
The typical price range for optical attenuators depends on several factors, including:
• Type of attenuator:
Fixed attenuators: Typically the most affordable option. Prices range from $20 to $200.
Variable attenuators: More complex so generally higher priced. Range is $50 to $500 or more for precision attenuators.
Thermo-optic and MEMS attenuators: The most advanced and expensive types, ranging from $100 up to $5000 or more, depending on specifications.
• Attenuation range: Wider attenuation ranges, e.g. 50dB vs 10dB, will usually cost more.
• Connector type: Attenuators with specialty connectors like MPO tend to be priced higher than standard SC or FC connectors.
• Wavelength range: Attenuators that work across multiple wavelength bands (e.g. 850nm and 1310nm) or very high wavelengths (e.g. 1550nm) tend to cost more.
• Resolution/precision: Finer step attenuation resolution, e.g. 0.1dB vs 1dB steps, will increase the price, especially for variable attenuators.
• Brand and materials: Prices vary significantly based on the brand and materials used. High-end brands and exotic materials will naturally be priced at a premium.
• Application: Attenuators for specialized applications like telecom, military or medical use tend to be priced higher than standard commercial/industrial attenuators.
As a rough estimate, you can expect to pay:
• $20 to $200 for a basic 3-10dB fixed attenuator
• $50 to $500+ for a versatile variable optical attenuator
• $200 to $2000+ for a high-end thermo-optic or MEMS attenuator
• $500 to $5000+ for a precision attenuator with 50dB range and 0.1dB resolution.
In summary, optical attenuator pricing ranges quite broadly based on the type, features, materials and intended application. But you can typically find good quality and reasonably priced options across the range.

Optical attenuators play a critical role in optimizing the performance of optical networks. By controlling the power levels of optical signals, they ensure smooth communication and reliable data transmission. Whether in telecommunication networks or fiber optic testing, attenuators provide the necessary flexibility and precision. With the ever-increasing demand for faster and more reliable communication, the importance of optical attenuators will only continue to grow.
