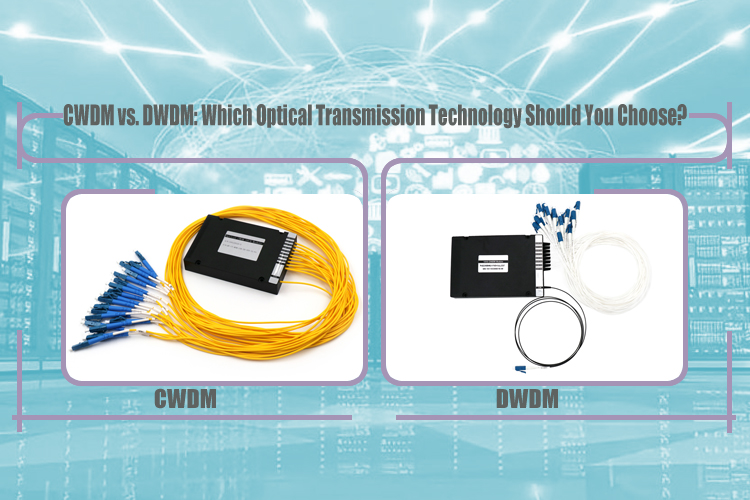

CWDM vs. DWDM: Which Optical Transmission Technology Should You Choose?
Views : 1302
Update time : 2024-04-17 09:47:27
Introduction The choice of optical transmission technology is an essential consideration when designing a network. CWDM and DWDM are two optical transmission technologies that offer various advantages and disadvantages, depending on the specific requirements of the network, including bandwidth, range, flexibility, and cost. In this article, we will explore the application and selection of CWDM and DWDM, providing a brief overview of each technology, the advantages and disadvantages of each, and typical network configurations. We will also offer insights into how to choose between CWDM and DWDM and provide some essential considerations in the selection process. What is CWDM? Definition and Explanation
Coarse Wavelength Division Multiplexing (CWDM) is an optical transmission technology that enables multiple optical signals to be transmitted over a single optical fiber by combining several wavelengths (or colors) of light into a single optical signal. Each wavelength represents a separate channel, and each channel is modulated with data for transmission. The data is encoded onto the carrier light waves, which are then transmitted through the fiber-optic cable.
Advantages and Disadvantages
CWDM is a cost-effective alternative to DWDM, as it uses low-cost passive components such as filters and multiplexers. This makes CWDM suitable for short-haul or Metro-area networks that do not require long distances.
One significant disadvantage of CWDM is its reduced capacity compared to DWDM, which limits the number of wavelengths that can be transmitted over a fiber-optic cable.
Applications
A common application of CWDM is in Metro-area networks (MANs) that cover distances of up to 80 kilometers. CWDM is also used in access networks and enterprise LANs.
Typical CWDM Network Configuration
A typical CWDM network configuration includes a series of optical multiplexers and demultiplexers that combine multiple signals onto a single fiber and separate them at the receiving end.
Selection Criteria
When selecting a CWDM system, the following criteria should be considered:
.Number of wavelengths required
.Output power requirements
.Distance requirements
.Budget
.Allowable signal loss
What is DWDM? Definition and Explanation
Dense Wavelength Division Multiplexing (DWDM) is another optical transmission technology that enables the transmission of multiple signals over a single fiber. However, DWDM can transmit hundreds of wavelengths simultaneously, significantly increasing the capacity of the fiber. Each wavelength represents a separate channel, and each channel is modulated with data for transmission.
Advantages and Disadvantages
DWDM offers much higher bandwidth and longer transmission distances than CWDM. However, the hardware costs associated with DWDM are higher, and active components such as optical amplifiers are required to maintain signal integrity over long distances.
Applications
DWDM is commonly used in long-haul telecommunications networks where high-capacity, long-distance transmission is essential.
Typical DWDM Network Configuration
A typical DWDM network configuration includes a series of optical amplifiers and multiplexers that combine multiple signals onto a single fiber and separate them at the receiving end.
Selection Criteria
When selecting a DWDM system, the following criteria should be considered:
.Number of wavelengths required
.Output power requirements
.Distance requirements
.Budget
.Allowable signal loss
Comparison between CWDM and DWDM Optical Spectrum
CWDM uses a wider wavelength range of 1270 nm to 1610 nm and wider channel spacing (up to 20 nm), while DWDM uses a narrower wavelength range of 1525 nm to 1565 nm and narrower channel spacing (down to 0.8 nm).
Distance
DWDM can transmit signals over much longer distances than CWDM, up to several hundred kilometers without requiring additional optical amplifiers.
Capacity
DWDM offers higher capacity than CWDM, with hundreds of wavelengths transmitted simultaneously over a single fiber.
Cost
CWDM is a more cost-effective option than DWDM, using low-cost passive components. In contrast, DWDM requires active components and optical amplifiers, making it more expensive.
Flexibility
CWDM is a more flexible option than DWDM, as additional wavelengths can be added to the network more easily and cost-effectively.
Selection Criteria
When selecting between CWDM and DWDM, the following criteria should be considered:
.Required distance
.Required bandwidth
.Network expansion plans
.Budget
.Future-proofing requirements
Case Study
A company that requires high-bandwidth connectivity between multiple locations within a city could opt for a CWDM network. In contrast, a company that requires high-capacity connectivity between distant locations would likely require a DWDM network.
Considerations for Choosing between CWDM and DWDM When choosing between CWDM and DWDM, the following factors should be considered: Network Requirements
Consider the bandwidth and distance requirements of the network, along with the number of channels needed, the allowable signal loss, and the required capacity.
Budget
Consider the cost of the system, including hardware, software, and maintenance. CWDM is generally more cost-effective than DWDM.
Future Expansion Plans
Consider whether the network may need to be expanded in the future and whether the selected technology can accommodate future growth without requiring significant upgrades.
Specific Application Needs
Consider whether the technology is suitable for the specific applications, including the required distance, capacity, and signal loss.
Vendor Support
Consider the availability of technical support and replacement parts from the vendor, along with warranty and maintenance agreements.
Conclusion In conclusion, selecting the right optical transmission technology is an essential consideration when designing a network. CWDM and DWDM are two optical transmission technologies that offer advantages and disadvantages depending on network requirements. When selecting between CWDM and DWDM, it is essential to consider the network requirements, budget, future expansion plans, specific application needs, and vendor support.
FAQs Q1.What is the maximum capacity of a CWDM network?
The maximum capacity of a CWDM network depends on the number of wavelengths used and the bandwidth of each wavelength. Generally, CWDM can support up to 18 channels with a total bandwidth of up to 40 Gbps.
Q2.Can CWDM and DWDM technologies be used together?
Yes, CWDM and DWDM technologies can be used together in a network where the requirements for capacity and distance vary across different parts of the network.
Q3.What is the wavelength range used in CWDM?
The wavelength range used in CWDM is between 1270 nm to 1610 nm.
Q4.How do I choose the right optical amplifier?
When choosing an optical amplifier, consider the type of amplifier, the gain, the noise figure, and the available input and output power.
Q5.What is the main difference between CWDM and DWDM?
The main difference between CWDM and DWDM is the number of wavelengths supported and the associated capacity and distance requirements. CWDM is a more cost-effective and flexible option that supports fewer wavelengths, while DWDM is a higher-capacity option that can support several hundred wavelengths over longer distances, but at a higher cost.
