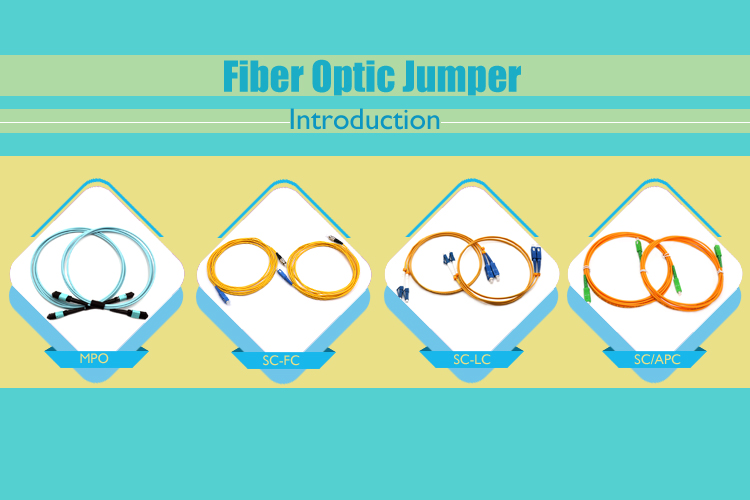

Introduction to Fiber Optic Jumper

Fiber optic jumpers play a crucial role in the world of telecommunications and networking. These small but powerful components are responsible for connecting fiber optic cables, allowing for seamless and efficient data transmission. In this article, we will explore the world of fiber optic jumpers, from their basic definition to their various types, benefits, and installation processes.

What is a Fiber Optic Jumper?
A fiber optic jumper, also known as a fiber optic patch cord, is a cable that consists of two fiber optic connectors on both ends, connected by a fiber optic cable. It is used to establish a connection between two devices or components in a fiber optic network. The connectors are designed to be compatible with specific fiber optic ports, ensuring a secure and reliable connection.

Types of Fiber Optic Jumpers
There are several types of fiber optic jumpers available on the market, each designed for specific applications and environments. Let's take a closer look at some of the commonly used types:
1.Single-mode Fiber Optic Jumper
A single-mode fiber optic jumper is designed to transmit optical signals over long distances. It uses a narrow core that allows only a single mode of light to propagate, resulting in minimal signal loss and high transmission efficiency. Single-mode jumpers are commonly used in long-haul communication systems and high-speed data networks.
2.Multimode Fiber Optic Jumper
On the other hand, a multimode fiber optic jumper is designed for shorter distances. It uses a larger core that allows multiple modes of light to propagate, making it suitable for shorter-range applications such as local area networks (LANs) and data centers.
3.Simplex Fiber Optic Jumper
A simplex fiber optic jumper consists of a single fiber optic cable with a connector on each end. It is used for applications that require a unidirectional data transmission, such as point-to-point connections.
4.Duplex Fiber Optic Jumper
A duplex fiber optic jumper consists of two fiber optic cables, each with a connector on one end. It is used for applications that require bidirectional data transmission, such as connecting network switches or routers.

Benefits of Using Fiber Optic Jumpers
Using fiber optic jumpers in your network infrastructure offers several advantages over traditional copper-based cables. Let's explore some of the key benefits:
1.High Bandwidth
Fiber optic jumpers have a much higher bandwidth compared to copper cables. They can transmit data at speeds of up to 100 Gbps and beyond, making them ideal for high-speed data transmission and demanding applications such as video streaming and cloud computing.
2.Low Signal Loss
One of the major advantages of fiber optic jumpers is their low signal loss. Unlike copper cables, which suffer from attenuation over long distances, fiber optic jumpers can transmit data over much longer distances without significant loss of signal strength. This allows for more reliable and efficient data transmission.
3.Immunity to Electromagnetic Interference
Fiber optic jumpers are immune to electromagnetic interference (EMI) and radio-frequency interference (RFI). This means they can be installed in environments with high levels of electromagnetic radiation, such as industrial settings or areas with heavy electrical equipment, without experiencing signal degradation.
4.Long Distance Capability
As mentioned earlier, fiber optic jumpers can transmit data over long distances without significant signal loss. This makes them ideal for applications that require long-range connectivity, such as telecommunications networks, internet service providers (ISPs), and long-distance data transmission.
5.Flexibility and Ease of Installation
Fiber optic jumpers are lightweight and flexible, making them easy to install and maneuver. They can be easily routed through tight spaces and around corners, reducing the complexity of cable management. Additionally, their smaller size allows for higher-density installations, maximizing the use of available space.

Choosing the Right Fiber Optic Jumper
When selecting a fiber optic jumper for your network, there are several factors to consider. Let's explore some of the key considerations:
1.Consider the Fiber Type
Fiber optic jumpers are available in single-mode and multimode variations. Consider the distance and bandwidth requirements of your application to determine the appropriate fiber type for your jumper.
2.Consider the Connector Type
There are various types of fiber optic connectors, such as LC, SC, FC, and MPO. Ensure that the connector type of your jumper matches the connector type of your network equipment for seamless compatibility.
3.Consider the Cable Length
Determine the required cable length for your jumper based on the distance between the devices or components you are connecting. It's important to avoid excessive cable length, as it can introduce signal loss.
4.Consider the Application
Different applications have different requirements. Consider the specific needs of your application, such as data transmission speed, environmental conditions, and network architecture, to choose the right fiber optic jumper.

Installing Fiber Optic Jumpers
Proper installation of fiber optic jumpers is essential to ensure optimal performance and reliability. Here are the general steps involved in installing fiber optic jumpers:
1.Preparing the Equipment
Before installation, ensure that you have the necessary tools and equipment, such as fiber optic connectors, cable cutters, and cleaning supplies. Follow safety guidelines and wear appropriate protective gear.
2.Preparing the Fiber Optic Cable
Prepare the fiber optic cable by stripping the outer jacket, exposing the individual fibers. Be careful not to damage the fibers during this process. Clean the fibers using a lint-free cloth and isopropyl alcohol to remove any dust or contaminants.
3.Connecting the Fiber Optic Jumper
Carefully align the connectors of the fiber optic jumper with the corresponding ports on the devices or components you are connecting. Insert the connectors into the ports and gently push until they click into place. Ensure a secure and snug fit.
4.Testing the Connection
Once the fiber optic jumper is installed, test the connection to ensure proper functionality. Use a fiber optic tester or an optical time-domain reflectometer (OTDR) to measure the signal strength and quality. Make any necessary adjustments or repairs if issues are detected.

Maintaining and Troubleshooting Fiber Optic Jumpers
To ensure optimal performance and longevity of your fiber optic jumpers, regular maintenance and troubleshooting are essential. Here are some key maintenance and troubleshooting practices:
1.Cleaning the Fiber Optic Connectors
Regularly clean the fiber optic connectors to remove dust, dirt, and contaminants that can degrade the signal quality. Use lint-free wipes and isopropyl alcohol to gently clean the connectors. Avoid touching the fiber ends with bare hands.
2.Inspecting for Damage
Periodically inspect the fiber optic jumpers for any signs of damage, such as bent or broken connectors, frayed cables, or discolored fibers. Replace any damaged components promptly to prevent signal loss or interruptions.
3.Troubleshooting Common Issues
If you experience issues with your fiber optic jumpers, such as signal loss, intermittent connectivity, or high error rates, perform troubleshooting steps to identify and resolve the problem. This may involve checking connections, testing with different jumpers, or consulting with a professional technician.

Conclusion
Fiber optic jumpers are essential components in modern telecommunications and networking infrastructure. Their high bandwidth, low signal loss, and immunity to electromagnetic interference make them ideal for high-speed data transmission over long distances. By choosing the right fiber optic jumper and following proper installation and maintenance practices, you can ensure reliable and efficient connectivity in your network.

FAQs
Q1.Are fiber optic jumpers the same as fiber optic cables?
No, fiber optic jumpers are a type of fiber optic cable that has connectors on both ends for easy connection between devices or components.

Q2.Can I use a single-mode fiber optic jumper for short-distance applications?
While single-mode fiber optic jumpers are primarily designed for long-distance applications, they can also be used for short-distance connections if the bandwidth and other requirements are met.

Q3.How often should I clean the fiber optic connectors?
Regular cleaning of fiber optic connectors is recommended, especially in environments with high levels of dust or contaminants. It is best to clean them whenever necessary or as part of a routine maintenance schedule.

Q4.What should I do if I encounter signal loss or connectivity issues with my fiber optic jumpers?
If you experience signal loss or connectivity issues, start by checking the connections and inspecting the jumpers for any visible damage. If the issue persists, consider consulting with a professional technician for further troubleshooting and assistance.

Q5.Can I use different types of fiber optic connectors on each end of the jumper?
It is generally recommended to use the same type of fiber optic connectors on both ends of the jumper for seamless compatibility. However, in certain cases, hybrid connectors or adapters can be used to connect different connector types.
