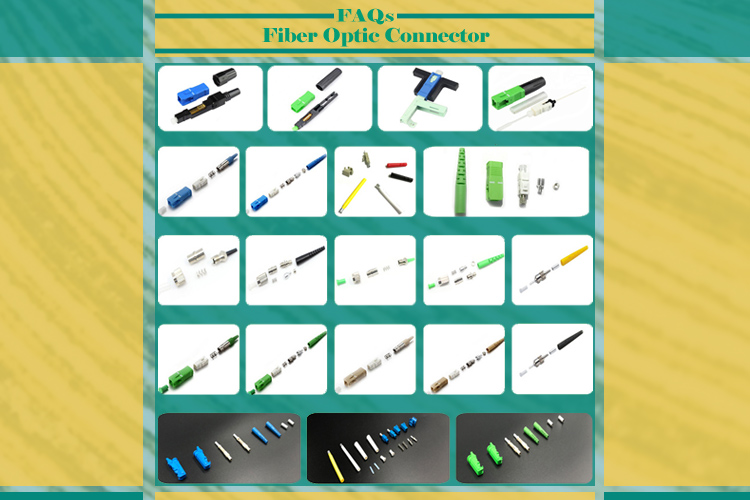

Fiber Optic Connector FAQs
Fiber Optic Connector FAQs
Fiber optic connectors offer excellent durability and reliability. They are designed to withstand harsh environmental conditions, including extreme temperatures, humidity, and vibrations. This makes them suitable for use in outdoor installations and industrial settings.
1. Which factors influence the performance of fiber optic connectors?
Several factors determine the performance of fiber optic connectors:
Attenuation: Attenuation refers to the loss of light intensity through the connector. Lower attenuation means less light is lost, so the signal can travel farther. Attenuation is measured in decibels per kilometer (dB/km). High-performance fiber optic connectors typically have attenuations of 0.5 dB or less.
Return loss: Return loss refers to the amount of light that is reflected back by the connector. Lower return loss means less light is reflected back, so more light continues through the cable. High-performance fiber optic connectors typically have return losses of -20 dB or better.
Repeatability: Repeatability means how consistently the connector can be installed and removed while maintaining the same optical performance. Better repeatability means the connector can be re-terminated more times without a noticeable increase in attenuation or return loss.
Durability: Durability refers to how well the connector can withstand environmental factors like temperature extremes, vibration, shock, and chemicals while maintaining good optical performance. More durable connectors can withstand more environmental stresses without degradation.
Geometry and polish: The geometry of the connector, including the fiber stub length and angle, as well as the quality of the fiber end-face polish, determine how much light is lost or reflected. Better geometry and polishing means less light is lost due to the connector interface.
Materials: The materials used in the connector determine factors like durability, temperature range, and chemical resistance. Materials also impact attenuation and return loss at the operating wavelengths of the fiber optic cable. Advanced plastics and ceramics are often used in high-performance connectors.
Intermateability: Intermateability refers to how well the connector physically mates with other compatible connectors. Better intermateability means the connector is less prone to issues with mating and de-mating, and has consistent performance when mated to other compatible connectors.
So in summary, low loss, low reflectance, high repeatability, strong durability, precise geometry, advanced materials, and good intermateability result in high performance fiber optic connectors. Optimizing all of these parameters is required for high-speed fiber optic interconnects.
2. Can you provide more details on the different types of fiber optic connectors?
Here are the main types of fiber optic connectors:
• LC connectors - These are small, lightweight connectors used for high-density applications like data centers. They provide good environmental protection and minimal insertion loss. They come with 2.0 mm ferrules.
• SC connectors - These are popular multi-purpose connectors used in a wide range of applications. They can withstand moderate environmental conditions. They use 2.5 mm ferrules.
• ST connectors - These connectors are durable and moisture-resistant. They are good for outdoor applications and installations. They come with 3.0 mm diameter ferrules.
• FC connectors - These are high-performance connectors used in long-distance and high-power applications. They provide maximum bandwidth and minimal signal loss. They use 2.0 mm diameter ferrules.
• MPO connectors - These are actually arrays of multiple fiber optic connectors, each with a 2.0 mm ferrule. They allow you to terminate multiple fibers at once, enabling higher fiber counts in a single patch panel. MPO connectors are often used in data centers and high-speed networks.
• MT-RJ connectors - These are symmetrical keyed connectors that provide protection against incorrect mating. They offer good fiber alignment and low loss. MT-RJ connectors use 0.75 mm diameter ferrules.
• Simplex connectors - Similar to duplex connectors but designed for single-ended terminations, allowing a fiber end-face to terminate. Often used for pigtail assemblies.
• Multi-fiber push-on (MPO) connectors - These are snap-in style connectors that latch fiber bundles into place to join multiple fibers at once. They are designed to simplify installation and minimize the chance of mis-mating.
3. How can l ensure proper cleaning and installation of fiber optic connectors?
Here are some tips for proper cleaning and installing fiber optic connectors:
• Always clean the connectors before mating. Use isopropyl alcohol and lint-free fiber cleaner or swabs to remove any dirt or debris. Never use paper towels which can leave behind small fibers.
• Inspect the connectors for any damage like cracks, chips or scratches in the ferrule or connector end-face before mating. Do not mate damaged connectors.
• Check that the connectors match in terms of connectors type, fiber type (singlemode vs multimode), bandwidth, and polarity (180° difference between transmit and receive connectors). Mating incompatible connectors can damage the fibers.
• Applyjust the right amount of connector lubricant or epoxy gel in between the connectors before mating. Too little will not seal the connection, too much can damage the fiber end-faces.
• Ensure a snug, mated connection without excess pressure. The connectors should meet together evenly without wobbling or bending sidewards.
• Use proper crimping tools and crimping techniques to securely fasten the connectors to the fiber cables. Loose crimps can wobble and damage the fiber inside.
• Cover mated connectors with protective caps or dust covers when not in use. Crimp the caps onto the connectors to prevent fiber exposure.
• Apply minimal stress to the fibers and keep them taut after installing the connectors. Sagging fibers tend to retain more bending loss.
• Fiber optic ribbons can also be used to hold fibers together for easy management and protection. Ensure ribbons do not bend the fibers excessively.
• Retest optical power/loss after installation to ensure there is no additional loss due to improper cleaning, mating or connector installation techniques.
• Provide adequate strain relief at both ends to prevent excessive stress on the connectors or pulling out the connectors from the ferrules.
• Inspect installed connectors for any defects regularly and replace damaged ones immediately.
4. What are some common applications for fiber optic connectors?
Fiber optic connectors are used in a wide range of applications where high-speed data transmission and reliable connectivity are critical. Some common applications for fiber optic connectors include:
Telecommunications: Fiber optic connectors are widely used in telecommunications networks to connect fiber optic cables to equipment such as switches, routers, and transceivers.
Data centers: Fiber optic connectors are used in data centers to connect servers, storage devices, and other equipment to the network.
Broadcast and entertainment: Fiber optic connectors are used in broadcast and entertainment applications to transmit high-quality audio and video signals over long distances.
Military and aerospace: Fiber optic connectors are used in military and aerospace applications where high-speed data transmission and reliable connectivity are critical.
Medical: Fiber optic connectors are used in medical applications such as endoscopy and laser surgery, where high-speed data transmission and reliable connectivity are essential.
Industrial: Fiber optic connectors are used in industrial applications such as factory automation and process control, where reliable connectivity is critical in harsh environments.
Security: Fiber optic connectors are used in security applications such as surveillance cameras and access control systems, where high-speed data transmission and reliable connectivity are essential.
In summary, fiber optic connectors are used in a wide range of applications where high-speed data transmission and reliable connectivity are critical.
5. What are the installation steps for fiber optic connectors?
here are the general steps for installing fiber optic connectors:
1). Strip the Fiber: The first step is to strip the fiber cable of its outer jacket and any other protective coatings to expose the fiber's bare ends. This can be done using a precision fiber stripper or by carefully scoring and cutting the jacket with a sharp knife.
2). Clean the Fiber: Once the fiber ends are exposed, they must be thoroughly cleaned to remove any oil, dirt, or debris that could interfere with the connector's performance. Use a lint-free wipe with a small amount of isopropyl alcohol to clean the fiber ends. Be sure to inspect the fiber under a microscope to ensure it is free from any contaminants.
3). Cleave the Fiber: To obtain a clean, flat fiber end-face, the fiber must be precisely cleaved using a fiber cleaver. The goal is to get a smooth, perpendicular cut without creating any cracks or chips in the fiber end-face.
4). Insert the Fiber into the Connector: Now it's time to insert the prepared fiber into the connector ferrule. Depending on the connector type, this may involve crimping, gluing, or thermal bonding the fiber into place. Be sure to follow the manufacturer's instructions carefully to avoid damaging the fiber or connector.
5). Polish the Connector: After the fiber is secured in the connector, use a polishing machine to polish the connector end-face to a smooth, low-loss finish. Different types of connectors have different polishing requirements, so be sure to consult the manufacturer's recommendations for your specific connector and polishing equipment.
6). Test the Connection: Finally, test the connection using an optical power meter and light source to ensure that the connection provides the desired level of attenuation and does not introduce any significant reflection or loss. Any defects or problems should be identified and corrected before the installation is complete.
In summary, installing fiber optic connectors requires careful attention to detail and precision throughout the entire process. By following these general steps and consulting the manufacturer's instructions, installers can ensure a high-quality, low-loss connection that meets the needs of their customers.
Fiber optic connectors are essential components in the world of fiber optic technology. They enable the seamless transmission of light signals between fiber optic cables, ensuring efficient and reliable data transfer. With their low-loss connection, durability, and compatibility with various environments, fiber optic connectors are the backbone of Optical communication networks.
