Fiber Core | Fiber Type | Count | Cable OD | reinforced | Fiber Jacket | Jacked Color | |
S1=G652D S2= G657A1 M5=50/125 M6=62.5/125 M3=OM3 M4=OM4 XX=other |

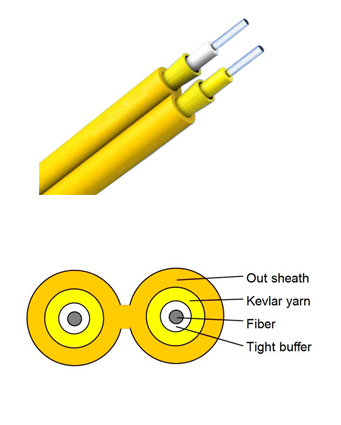

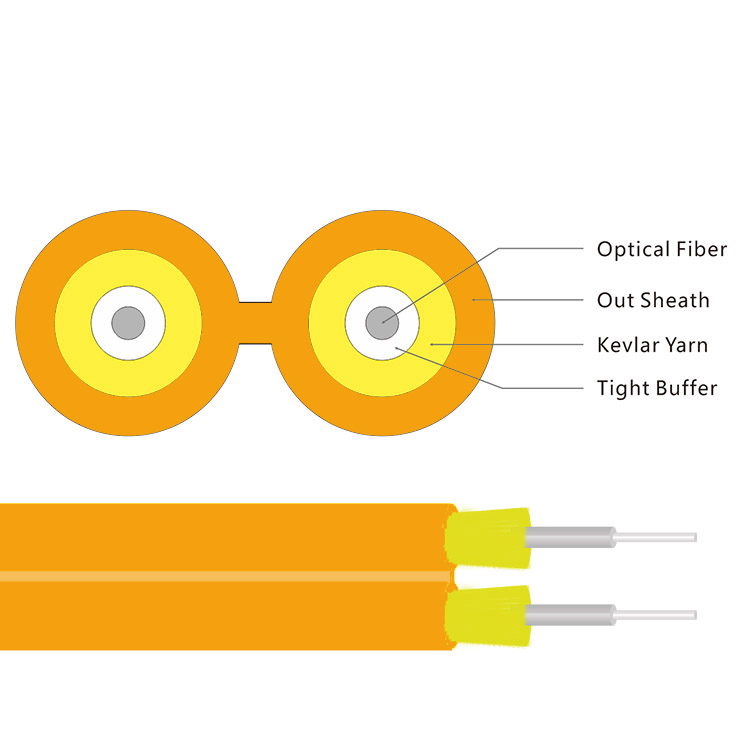

S=Simplex Z=Zipcord Duplex Y=Round Duplex F=Flat Duplex B=Breakout D=Distribution R=Ribbon A=Armored W=Waterproof X=other |
001=1 core 002=2 cores 003=3 cores 024=24 cores XXX=other |
01= 0.9mm 02=2.0mm 03=3.0mm 04=2.9*6.0mm 05=1.9*3.1mm 06=4.2*7.6mm 07=9.0mm 08=11.2mm 09=4.0*7.0mm XX=other |
1=Kevlar 2=FRP 3=Armored steel tape 4=Steel wire 5= Armored steel tape & Steel wire |
PR=PVC-OFNR PP=PVC-OFNP LH=LSZH PE=PE PU=TPU LN=Nylon HT=Hytrel xx=other |
01=Blue 02=Orange 03=Green 04=Brown 05=Slate 06=White 07=Red 08=Black 09=Yellow 10=Violet 11=Rose 12=Aqua 13=12 Color XX=Other |
Outer diameter(mm) | 1.6x3.3 | 1.8X3.7 | 2.0X4.1 | 2.8X5.7 | |
Nominal Weight(kg/km) | 5.7 | 6.7 | 8.2 | 13.2 | |
Crush Resistance Long/Short term (N/100mm) |
100 500 |
100 500 |
100 500 |
100 500 |
|
Tensile Strength(N) Long/Short term |
160 80 |
160 80 |
200 100 |
300 160 |
|
Min.Bending Radius(mm) |
Dynamic | 20H | |||
static | 10H | ||||
Temperature Range | -20℃-70℃ |
