Introduction to Fiber Optic Patch Cable

Views : 793
Update time : 2024-02-26 09:43:24

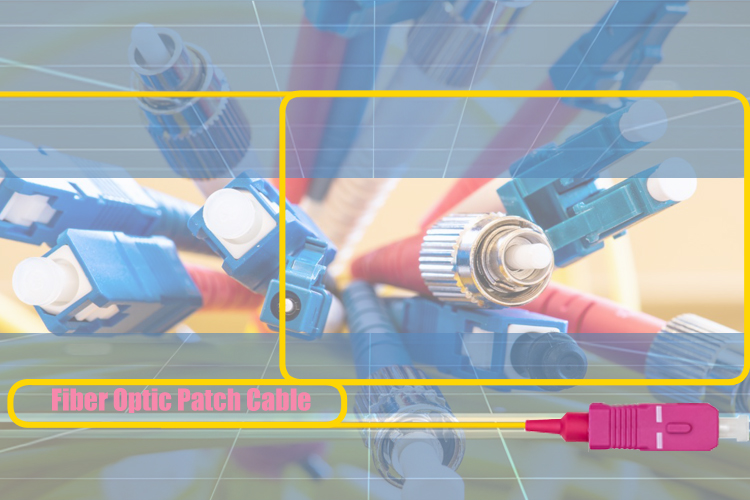

Fiber optic patch cables play a crucial role in the world of telecommunications and data transmission. They are an essential component of modern networking systems, enabling high-speed and reliable data transfer. In this article, we will explore the basics of fiber optic patch cables, their working principle, types, components, benefits, applications, and more.

What is a Fiber Optic Patch Cable?
A fiber optic patch cable, also known as a fiber optic jumper or fiber optic patch cord, is a cable that connects optical devices, such as switches, routers, and transceivers, in a fiber optic network. It consists of two fiber connectors on each end and a fiber optic cable in between. These cables are designed to transmit data using light signals through the core of the fiber.

How Does a Fiber Optic Patch Cable Work?
Fiber optic patch cables work based on the principle of total internal reflection. The core of the fiber acts as a waveguide, allowing light to travel through it by bouncing off the cladding. The light signals are transmitted through the core in the form of pulses, representing binary data. These pulses of light are transmitted at the speed of light, resulting in fast and efficient data transfer.

Types of Fiber Optic Patch Cables
There are two main types of fiber optic patch cables: single-mode and multimode.
1.Single-mode Patch Cables:
Single-mode patch cables are designed to transmit a single mode of light. They have a smaller core diameter, typically 9 microns, which allows for longer transmission distances and higher bandwidth. They are commonly used in long-distance communication applications, such as telecommunications, cable television, and internet service providers.
2.Multimode Patch Cables:
Multimode patch cables are designed to transmit multiple modes of light. They have a larger core diameter, typically 50 or 62.5 microns, which allows for shorter transmission distances but higher data rates. They are commonly used in local area networks (LANs), data centers, and short-distance communication applications.

Components of a Fiber Optic Patch Cable
A fiber optic patch cable consists of three main components: the fiber optic cable, connectors, and jacketing.
1.Fiber Optic Cable:
The fiber optic cable is the core component of a patch cable. It is made of glass or plastic fibers that transmit the light signals. The core is surrounded by a cladding layer that reflects the light back into the core, preventing signal loss. The cable is protected by a protective jacket that provides mechanical strength and protection against environmental factors.
2.Fiber Optic Connectors:
The Fiber Optic connectors are the interface between the fiber optic cable and the optical device. They allow for easy connection and disconnection of the patch cable. Common connector types include SC, LC, ST, and MPO. Each connector type has its own advantages and is used in specific applications.
3.Jacketing:
The jacketing of a fiber optic patch cable provides additional protection to the cable. It is made of a durable material, such as PVC or LSZH (Low Smoke Zero Halogen), which is resistant to abrasion, chemicals, and other external factors. The jacketing also helps in identifying the type and mode of the cable.

Benefits of Fiber Optic Patch Cables
Fiber optic patch cables offer several advantages over traditional copper cables:
1.High Bandwidth: Fiber optic cables have a much higher bandwidth capacity, allowing for faster data transmission and higher data rates.
2.Long Transmission Distances: Single-mode fiber optic cables can transmit data over longer distances without significant signal loss.
3.Immunity to Electromagnetic Interference: Fiber optic cables are not affected by electromagnetic interference, making them ideal for environments with high electrical noise.
4.Security: Fiber optic cables are difficult to tap into, providing a higher level of data security compared to copper cables.
5.Lightweight and Flexible: Fiber optic patch cables are lightweight and flexible, making them easier to install and manage in tight spaces.

Applications of Fiber Optic Patch Cables
Fiber optic patch cables are widely used in various applications, including:
1.Telecommunications: Fiber optic cables form the backbone of telecommunications networks, enabling long-distance communication.
2.Data Centers: Fiber optic patch cables are used to connect servers, switches, and storage devices in data center environments.
3.Local Area Networks (LANs): Fiber optic patch cables are used to connect network devices, such as computers, routers, and switches, in LAN environments.
4.CCTV Surveillance: Fiber optic cables are used for high-quality video transmission in CCTV surveillance systems.
5.Industrial Control Systems: Fiber optic patch cables are used in industrial automation and control systems for reliable and high-speed data transfer.

How to Choose the Right Fiber Optic Patch Cable
When selecting a fiber optic patch cable, consider the following factors:
1.Cable Type:
Choose between single-mode and multimode cables based on your transmission distance and bandwidth requirements.
2.Connector Type:
Select the appropriate connector type based on the devices you are connecting. Common connector types include SC, LC, ST, and MPO.
3.Length:
Choose the cable length that suits your installation requirements. It is advisable to leave some extra length for flexibility.
4.Environment and Installation:
Consider the environmental conditions and installation requirements of your application. Opt for cables with suitable jacketing and protection against external factors.

Proper Maintenance and Handling of Fiber Optic Patch Cables
To ensure optimal performance and longevity of fiber optic patch cables, follow these maintenance and handling practices:
1.Handle with Care: Avoid bending or twisting the cables beyond their specified bend radius. Protect the connectors from dust, dirt, and physical damage.
2.Clean Connectors: Regularly clean the connectors to remove dust and contaminants. Use lint-free wipes and isopropyl alcohol for cleaning.
3.Avoid Excessive Tension: Do not put excessive tension on the cables during installation or maintenance.
4.Avoid Extreme Temperatures: Keep the cables away from extreme temperatures, as they can cause damage to the fiber and connectors.
5.Regular Inspections: Inspect the cables for any signs of damage or wear and replace them if necessary.

Common Issues and Troubleshooting
Here are some common issues with fiber optic patch cables and possible troubleshooting steps:
1.Signal Loss or Weak Signal: Check for loose connectors or damaged fibers. Reconnect or replace the connectors if needed.
2.High Attenuation: Verify the cable length and ensure it is within the specified limits. If necessary, replace the cable with a shorter length or use an amplifier.
3.Dirty Connectors: Clean the connectors using a lint-free wipe and isopropyl alcohol. Ensure proper alignment and connection.
4.Cable Breakage: If the cable is physically damaged or broken, replace it with a new one.
5.Compatibility Issues: Ensure that the connector types and cable modes are compatible with the devices you are connecting.

Future Trends in Fiber Optic Patch Cables
The field of fiber optic patch cables is constantly evolving, and there are several future trends to look out for:
1.Higher Data Rates: With the increasing demand for faster data transmission, fiber optic patch cables will support even higher data rates.
2.Miniaturization: Smaller and more compact fiber optic connectors will be developed to accommodate tight spaces in modern devices.
3.Improved Durability: Future fiber optic patch cables will be designed to withstand harsher environments and provide enhanced durability.
4.Increased Adoption in IoT: As the Internet of Things (IoT) expands, fiber optic patch cables will play a vital role in connecting and transmitting data from various IoT devices.

Conclusion
Fiber optic patch cables are a fundamental component of modern telecommunications and data transmission systems. They offer numerous advantages over traditional copper cables, including higher bandwidth, longer transmission distances, and immunity to electromagnetic interference. By understanding the different types, components, and applications of fiber optic patch cables, you can make informed decisions when selecting and maintaining them for your networking needs.

FAQs:
Q1.What is the difference between single-mode and multimode fiber optic patch cables?
Difference between single-mode and multimode fiber optic patch cables:
1.Core Size: Single-mode fibers have a smaller core diameter (usually around 9 micrometers) compared to multimode fibers (which can range from 50 to 62.5 micrometers). This smaller core size allows single-mode fiber to carry light directly down the fiber without the light bouncing off the edges, reducing dispersion and allowing for higher bandwidth over longer distances.
2.Light Propagation: Single-mode fibers allow only one mode (or path) of light to propagate through the fiber, while multimode fibers can propagate multiple modes, hence the names single-mode and multimode.
3.Distance: Single-mode fibers are optimized for long-distance communication, often exceeding 100 kilometers, due to lower signal attenuation and dispersion. Multimode fibers are better suited for shorter distances, typically up to 500 meters for data rates of 10 Gbps or less.
4.Bandwidth: Single-mode fibers generally offer a higher bandwidth than multimode fibers because they do not suffer from modal dispersion, which can limit the bandwidth of multimode fibers.
5.Cost: Multimode fibers are typically less expensive to produce and to use because they work with less expensive light sources (LEDs or lasers) that do not have to be as precise as those required for single-mode transmission.

Q2.How do fiber optic patch cables transmit data?
Fiber optic patch cables transmit data using light pulses. LED or laser light sources convert electronic signals into light pulses that travel through the fiber optic cable. At the receiving end, photosensors convert the light pulses back into electronic signals.

Q3.What are some common connector types used in fiber optic patch cables?
Common connector types used in fiber optic patch cables:
1.LC (Lucent Connector): Small form-factor connector that uses a push-pull latching mechanism.
2.SC (Subscriber Connector or Standard Connector): A push-pull connector that is commonly used for its performance and ease of use.
3.ST (Straight Tip): A bayonet-style connector that is inserted and twisted to lock.
4.FC (Ferrule Connector): A screw-on connector that is secured with a threaded body.
5.MT-RJ (Mechanical Transfer-Registered Jack): A small form-factor connector with a similar design to an RJ45 telephone connector.
6.MTP/MPO (Multi-fiber Termination Push-on/Pull-off): A high-density connector that can support multiple fibers, typically used for high-bandwidth solutions.

Q4.Can fiber optic patch cables be used for long-distance communication?
Yes, especially single-mode fiber optic patch cables are designed for long-distance communication. They are capable of transmitting data over distances of up to 100 kilometers or more without requiring repeaters to boost the signal, making them ideal for telecommunications, cable television networks, and long-range data transfer applications.

Q5.How do I clean and maintain fiber optic patch cables?
To clean and maintain fiber optic patch cables:
1.Inspection: Before cleaning, always inspect the fiber connectors with a microscope to see if there is dirt or damage.
2.Dry Cleaning: Use a reel-based cassette cleaner or a dry, lint-free wipe to clean the end face of the fiber connector.
3.Wet Cleaning: If dry cleaning does not remove all the contaminants, use a fiber cleaning solution (usually isopropyl alcohol) applied to a lint-free wipe to clean the end face, followed by a dry wipe to remove any residue.
4.Avoid Touching the End Faces: Don't touch the end face of the connectors with your fingers as oils and dirt from your skin can contaminate the surface.
5.Protective Caps: Always keep protective caps on unused connectors to prevent contamination.
Regular Cleaning: Regularly clean the connectors to ensure optimal performance and to prevent any damage to the equipment.
6.Proper Storage: Store cables in a clean, dry place, away from potential contaminants and out of direct sunlight.
