The Ultimate Guide to Fiber Optic Splice Closure: Importance, Types, Installation and Maintenance

Views : 980
Update time : 2024-02-21 09:23:21
The Ultimate Guide to Fiber Optic Splice Closure: Importance, Types, Installation and Maintenance

Introduction to Fiber Optic Splice Closure
Fiber optic splice closure plays a crucial role in the installation and maintenance of fiber optic networks. It is an essential component that provides protection and organization for fiber optic splices, ensuring the integrity and reliability of the network. In this article, we will explore the various aspects of fiber optic splice closure, including its importance, types, components, splicing techniques, testing, maintenance, and future trends.

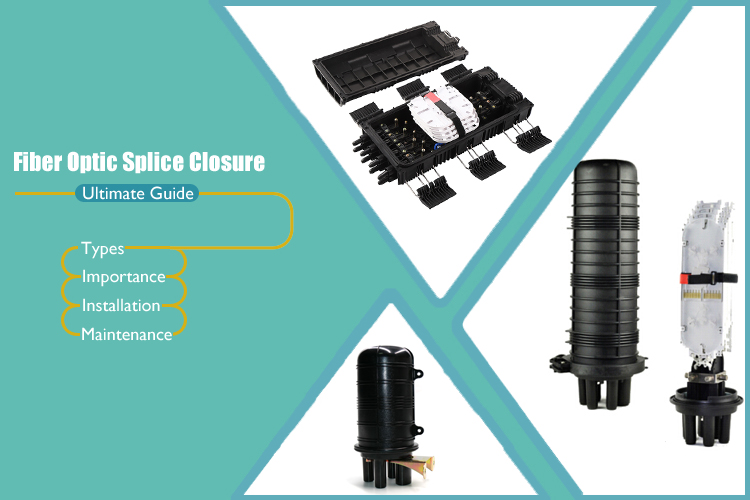

Types of Fiber Optic Splice Closure
There are several types of fiber optic splice closures available in the market, each designed for specific applications and environments. Some common types include dome splice closures, inline splice closures, and horizontal splice closures. Dome splice closures are typically used for aerial, buried, or underground installations, while inline splice closures are suitable for direct burial applications. Horizontal splice closures are commonly used in indoor or building-to-building fiber optic connections.

The Importance of Fiber Optic Splice Closure
Fiber optic splice closure is a critical element in fiber optic networks as it enables the connection and protection of fiber optic cables. It ensures that the spliced fibers are securely housed and protected from environmental factors such as moisture, dust, and temperature variations. The proper installation of splice closures prevents signal loss and maintains the overall performance of the network.

Components of Fiber Optic Splice Closure
A fiber optic splice closure consists of various components that work together to provide protection and organization for fiber optic splices. These components include the closure body, splice trays, sealing elements, cable glands, and mounting brackets. The closure body is the main housing that protects the spliced fibers, while the splice trays hold and organize the individual splices. Sealing elements ensure the closure is watertight, and cable glands provide entry points for the fiber optic cables. Mounting brackets are used to secure the closure to a structure or pole.

The Splicing Process in Fiber Optic Splice Closure
The splicing process in a fiber optic splice closure involves several steps to ensure a reliable and secure connection. Firstly, the fiber optic cables are prepared by stripping the protective coatings and cleaning the fibers. The fibers are then aligned and fused together using a fusion splicer. After fusion, the spliced fibers are protected by placing them in splice trays within the splice closure. The splice trays provide mechanical support and protect the splices from external elements.

Fiber Optic Splicing and Fusion
Fiber optic splicing involves joining two or more fiber optic cables together to create a continuous optical path. Fusion splicing is the most common method used for splicing fiber optic cables. It involves melting the ends of the fibers together using an electric arc or laser and then fusing them to form a permanent connection. Fusion splicing provides low insertion loss and high tensile strength, making it ideal for long-term and high-performance connections.

Splicing Techniques in Fiber Optic Splice Closure
There are two main splicing techniques used in fiber optic splice closure: fusion splicing and mechanical splicing. Fusion splicing, as mentioned earlier, involves melting and fusing the fibers together to create a permanent connection. On the other hand, mechanical splicing involves aligning the fibers and mechanically securing them using a splice connector or mechanical splice holder. While fusion splicing provides lower insertion loss and higher tensile strength, mechanical splicing is quicker and requires less expensive equipment.

Preparing the Fiber Optic Cables for Splicing
Before splicing the fiber optic cables, it is essential to properly prepare them to ensure a successful and reliable connection. This involves stripping the protective coatings from the fibers using specialized tools such as fiber strippers. The stripped fibers are then cleaned using lint-free wipes and isopropyl alcohol to remove any dirt or contaminants. Proper preparation of the fiber optic cables is crucial to achieve low loss and high-performance splices.

Testing and Inspection of Fiber Optic Splice Closure
After splicing the fibers in a fiber optic splice closure, it is crucial to perform testing and inspection to ensure the quality and performance of the splices. This involves using specialized equipment such as an optical time-domain reflectometer (OTDR) to measure the insertion loss and reflectance of the spliced fibers. The OTDR can also identify any faults or issues in the splices, allowing for prompt repairs or replacements. Visual inspection using a fiber microscope can also be performed to check for any physical defects or misalignments.

Maintenance and Troubleshooting of Fiber Optic Splice Closure
Regular maintenance of fiber optic splice closures is essential to prevent signal loss and maintain the overall performance of the network. This includes inspecting the closure for any physical damage, cleaning the splice trays and fibers, and checking the sealing elements for any signs of wear or deterioration. Troubleshooting of splice closures involves identifying and resolving any issues, such as fiber misalignments, excessive loss, or environmental damage. Prompt maintenance and troubleshooting can prevent network downtime and ensure reliable connectivity.

Future Trends in Fiber Optic Splice Closure
The field of fiber optic splice closure is constantly evolving, with new technologies and trends shaping its future. Some future trends include the development of smaller and more compact closures, improved sealing and protection mechanisms, and advancements in splicing techniques and equipment. Additionally, the increasing demand for high-speed and high-bandwidth networks will drive innovations in fiber optic splice closures to meet the growing connectivity needs.

Best Practices for Installing Fiber Optic Splice Closure
Proper installation of fiber optic splice closures is crucial for their optimal performance and longevity. Some best practices include selecting the appropriate closure type for the application, following manufacturer guidelines for installation, ensuring proper fiber management and organization within the closure, and using quality sealing elements and cable glands. It is also important to consider factors such as environmental conditions, accessibility, and future expansion when selecting the installation location.

Benefits of Fiber Optic Splice Closure
Fiber optic splice closures offer several benefits for fiber optic networks. These include providing reliable protection for spliced fibers, ensuring low loss and high-performance connections, withstanding harsh environmental conditions, and simplifying network maintenance and troubleshooting. Fiber optic splice closures also offer flexibility and scalability for network expansions, making them a preferred choice for various applications such as telecommunications, data centers, and industrial networks.

Comparison between Fiber Optic Splice Closure and Mechanical Splicing
While fusion splicing is the most common method used in fiber optic splice closure, mechanical splicing is another option available. Mechanical splicing offers quicker installation, lower equipment costs, and easier reworkability compared to fusion splicing. However, fusion splicing provides higher performance and reliability, especially for long-term and high-bandwidth connections. The choice between the two depends on factors such as the application requirements, budget, and the desired level of performance.

Conclusion
Fiber optic splice closure is a crucial component in fiber optic networks, providing protection, organization, and reliability for spliced fibers. It plays a vital role in ensuring low loss and high-performance connections, as well as withstanding harsh environmental conditions. Proper installation, maintenance, and testing are essential for the optimal performance and longevity of splice closures. As the demand for high-speed and high-bandwidth networks continues to grow, the future of fiber optic splice closure holds further advancements and innovations to meet the evolving connectivity needs.

FAQs
1.What is a fiber optic splice closure?
A fiber optic splice closure is a device used to protect fiber optic splices from environmental conditions and mechanical damage. It is designed to provide a secure enclosure where fiber optic cable segments are joined together, ensuring the integrity and optimal performance of the connection. The closures can be used above ground, buried, or even placed in aerial or wall mount installations, depending on their design.

2.Why is fiber optic splice closure important?
Fiber optic splice closures are important for several reasons:
.They protect the splices from water, dust, and other contaminants that could potentially damage the fibers or reduce their performance.
.They provide strain relief and physical protection against mechanical forces that might otherwise cause microbends or macrobends in the fibers.
.They help organize and manage fiber connections, making maintenance and troubleshooting easier.
.They ensure the long-term reliability and functionality of the fiber optic network by safeguarding the splices, which are critical points of potential failure.

3.What are the types of fiber optic splice closures?
There are several types of fiber optic splice closures, including:
.Horizontal: These closures are used when the cable is being run horizontally, such as along a wall or underground.
.Vertical: These closures are used when the cable is being run vertically, such as up a pole or in a manhole.
.Ribbon: These closures are used for ribbon fiber cables, which contain multiple fibers arranged in a flat ribbon.
.Gel-filled: These closures are filled with a gel that helps to prevent moisture from entering the closure and protect against corrosion.
.Direct-buried: These closures are designed to be buried directly in the ground without the need for additional protection.

4.How does fiber optic splicing work?
Fiber optic splicing involves joining two fiber optic cables together to form a continuous optical path. There are two main methods of splicing:
.Fusion splicing: This is the most common method, where the two fiber ends are precisely aligned and then welded together using an electric arc. Fusion splicing offers the lowest loss and least reflectance, as well as the strongest and most reliable joint between fibers.
.Mechanical splicing: This method aligns the fiber ends in a specially designed mechanical fixture that holds the fibers together in alignment. Mechanical splices are quicker and easier to perform than fusion splices but typically have higher loss and are less reliable.

5.What are the best practices for installing a fiber optic splice closure?
The best practices for installing a fiber optic splice closure include:
.Following the manufacturer's instructions carefully to ensure proper assembly and sealing of the closure.
.Preparing the fiber optic cables properly, which includes stripping, cleaning, and cleaving the fibers.
.Using the correct tools and equipment, such as a fusion splicer for fusion splicing or a mechanical splice kit for mechanical splicing.
.Keeping the interior of the splice closure and all fiber ends clean to prevent contamination that can increase connection loss.
.Properly managing the fiber cables within the closure to prevent bending or pinching, which can damage the fibers.
.Testing the splices with an optical time-domain reflectometer (OTDR) to ensure that they meet the required specifications.
.Adequately sealing the closure to protect against moisture and other environmental factors.
.Securely mounting the closure in its intended location, using appropriate fixtures and supports.
.Labeling the closure for future identification, and documenting the splice configuration for maintenance and troubleshooting purposes.
