Complete Guide to FBT Splitter

Views : 1319
Author : goodvin
Update time : 2023-12-14 10:17:07

This article provides a comprehensive discussion of FBT Splitter, a device used to divide light signals from one optical fibre into multiple different optical fibres. We will explain what FBT Splitter is, how it works, its benefits, available types, factors to consider when choosing, and its differences from PLC Splitter. This article aims to provide a deep understanding of FBT Splitter and assist you in selecting and using this device appropriately.

What is an FBT Splitter?

An FBT Splitter, or Fiber Optic Splitter, is a device used to divide the light signal from one optical fibre into several different optical fibres. FBT Splitter is used in optical fibre networks to split the signal from one optical fibre path into several separate optical fibre paths.

How Does FBT Splitter Work?

FBT Splitter works by using optical fibre duplication technology. A single optical fibre is divided into multiple optical fibres using a combination of optical signal duplication and light splitting. The optical signal entering the FBT Splitter is evenly divided into separate optical fibre multiplexing.

Benefits of Using FBT Splitter

Using FBT Splitter has several advantages, including:
1.Scalability: FBT Splitter allows for increasing the number of optical fibres that can be used in a network, making it easier to expand the optical fibre network.

2.Cost-Effectiveness: FBT Splitter is a more economical solution compared to using single optical fibres for each connection or device.

3.Energy Efficiency: FBT Splitter has low light leakage, reducing the power required to transmit optical signals.

4.Compatibility: FBT Splitter is compatible with various types of optical fibres and network devices, making it suitable for various network configurations.

Types of FBT Splitters

There are several types of FBT Splitters commonly used, including:

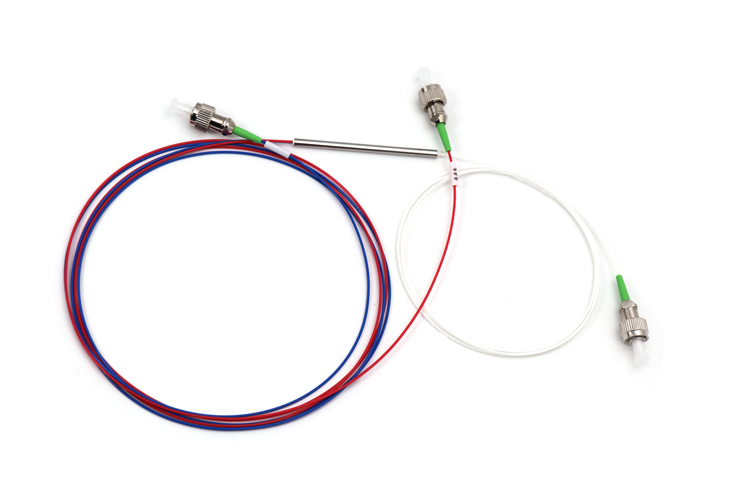

.FBT Splitter 1x2: It has one input port and two output ports, used to divide the signal from one optical fibre into two optical fibres.

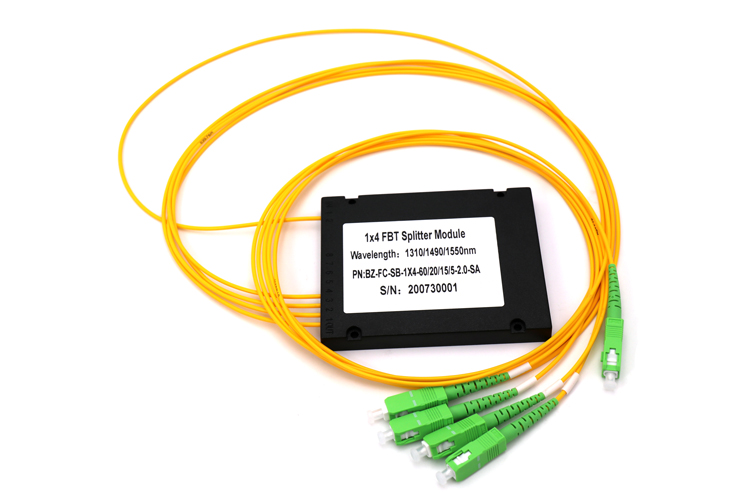

.FBT Splitter 1x4: It has one input port and four output ports, used to divide the signal from one optical fibre into four optical fibres.


.FBT Splitter 1x8: It has one input port and eight output ports, used to divide the signal from one optical fibre into eight optical fibres.

.FBT Splitter 1x16: It has one input port and sixteen output ports, used to divide the signal from one optical fibre into sixteen optical fibres.

Factors to Consider When Choosing FBT Splitters

When choosing FBT Splitters, there are several factors to consider, including:
1.Port Count: Choose an FBT Splitter with the appropriate number of ports for your network needs.

2.Insertion Loss: Consider the level of insertion loss produced by the FBT Splitter. The lower the insertion loss, the better the quality of the received signal.

3.Material Quality: Ensure that the FBT Splitter uses high-quality materials to ensure good signal quality and resistance to harsh environmental conditions.

4.Operating Temperature: Check the operational temperature that the FBT Splitter can handle. Ensure the FBT Splitter can operate within the temperature range suitable for your network environment.

5.Price: Compare the prices of FBT Splitters from various manufacturers or suppliers. Choose one that fits your budget without sacrificing quality.

Installation and Use of FBT Splitter

Installing FBT Splitter: To install the FBT Splitter, follow these steps:
1.Ensure that you have the FBT Splitter that meets your network requirements.

2.Determine the installation location of the FBT Splitter within the optical fiber network.

3.Connect the optical fibre from the input port of the FBT Splitter to the optical signal source.

4.Connect the optical fibre from the output port of the FBT Splitter to the device or network that will receive the divided optical signal.

Using FBT Splitter: Once the FBT Splitter is installed, you can use it as follows:

1.Ensure that the optical signal enters the FBT Splitter through the input port.

2.Check the optical fibre connections on the output port of the FBT Splitter to ensure that the optical signal is properly divided to each connected optical fibre.

3.Ensure that each optical fibre connected to the output port of the FBT Splitter is connected to the appropriate device or network.

Differences Between FBT Splitter and PLC Splitter

Although FBT Splitter and PLC Splitter have similar functions, there are some differences between the two. FBT Splitter uses optical signal duplication technology, while PLC Splitter uses integrated light wave technology. PLC Splitter has lower insertion loss and can divide the signal with a higher ratio compared to FBT Splitter. However, PLC Splitter is also more expensive than FBT Splitter.

Conclusion

FBT Splitter is an essential device in fiber optic networks that is used to divide light signals from one fiber optic into multiple different fiber optics. Using FBT Splitter has advantages in terms of scalability, cost-effectiveness, energy efficiency, and compatibility. There are several types of FBT Splitters that can be chosen according to network needs. When selecting an FBT Splitter, factors such as the number of ports, attenuation, material quality, operational temperature, and price should be considered. The installation and use of FBT Splitter also need to be considered by ensuring proper fiber optic connections. Although there are differences between FBT Splitter and PLC Splitter, both play an important role in fiber optic networks.

Keywords:FBT Splitter, Fiber Optic Splitter, how it works, benefits, types, selection, PLC Splitter.

FAQs
Q1.What is an FBT Splitter?
An FBT Splitter is a device used in optical fibre networks to divide the light signal from one optical fibre into several different optical fibres.

Q2.How does an FBT Splitter work?
An FBT Splitter works by using optical fibre duplication technology to divide the optical signal from one optical fibre path into several separate optical fibre paths.

Q3.What are the advantages of using an FBT Splitter?
The advantages of using an FBT Splitter include: scalability, cost-effectiveness, energy efficiency, and compatibility with various types of optical fibres and network devices.

Q4.What is the difference between an FBT Splitter and a PLC Splitter?
The difference between an FBT Splitter and a PLC Splitter lies in the technology used, attenuation level, splitting ratio, and price. PLC Splitter uses integrated waveguide technology and has a higher splitting ratio, but is more expensive than FBT Splitter.

Q5.How do I choose the right FBT Splitter for my network?
When selecting an FBT Splitter, it is important to consider factors such as the number of ports, attenuation level, material quality, operational temperature, and price. Choose an FBT Splitter that suits your network's needs and budget.
