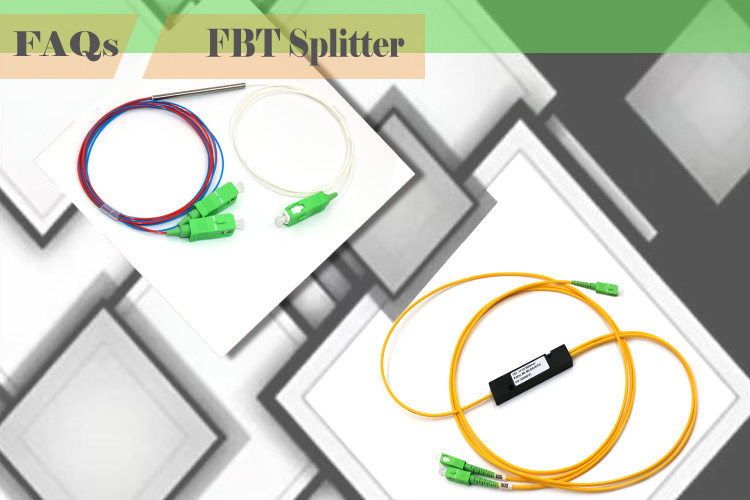

FBT Splitter FAQs
FBT Splitter FAQs
In the world of telecommunications, fiber optic networks have become the backbone for transmitting vast amounts of data at lightning-fast speeds. These networks are not only used by telecommunication companies but also by various industries such as healthcare, finance, and education. To ensure the seamless transmission of data, it is crucial to have efficient and reliable tools in place. One such tool that plays a vital role in fiber optic networks is the FBT splitter.
1. What is a FBT splitter?
FBT (Fused Biconical Taper) splitter, also known as a fiber optic splitter, is a device used to divide an optical signal into multiple paths. It is widely used in applications where one optical signal needs to be distributed to multiple destinations, such as in fiber-to-the-home (FTTH) networks, passive optical networks (PONs), and local area networks (LANs).
The FBT splitter operates on the principle of light propagation through fused biconical tapers. The device consists of a single-mode optical fiber that is tapered and fused together with other fibers. The tapering and fusion process allows the splitter to divide the input signal into multiple output signals with minimal loss and distortion.
2. What are the working principles of FBT Splitter and PLC Splitter? What are the differences between them?
The FBT(Fused Biconical Taper) splitter and PLC(Planar Lightwave Circuit) splitter are both passive devices used in optical communication networks to split a single input signal into multiple output signals. The working principle of the FBT splitter involves fusing two or more fibers together, stretching them, and tapering the fused region to create a gradually decreasing diameter. This causes the light to spread out as it travels through the taper, which splits the signal into multiple channels. In contrast, the PLC splitter uses a planar waveguide with a series of parallel waveguides that divide the input signal into multiple pathways, using the properties of light propagation in the waveguide structure.
The main differences between the two splitters are their manufacturing processes, performance characteristics, and cost. FBT splitters are typically cheaper to produce and have higher insertion losses than PLC splitters. However, FBT splitters can handle higher power levels and are more flexible in terms of splitting ratios and configurations, while PLC splitters provide better uniformity and wavelength independence.
3. What is the production process of FBT Splitter? What are the key steps in their manufacturing process?
The production process of the FBT splitter involves several key steps, including fiber preparation, taper fabrication, splitting, and packaging. The fiber preparation involves stripping, cleaning, and cleaving the fibers to prepare them for fusion. The taper fabrication step involves placing the prepared fibers side-by-side, heating and pulling them to form a tapered region, and then cutting the taper to the desired length. Splitting is achieved by fusing the tapered region with another fiber or a splitter device. Finally, the splitter is packaged with protective coating and connectorized for integration into an optical network.
4. What are the different specifications for the size and packaging of FBT Splitter? What are the differences between these specifications?
FBT splitters are available in various specifications based on their size, splitting ratio, and packaging options. The most common sizes range from 1x2 to 1x64, indicating the number of inputs and outputs. The splitting ratio can also vary, with typical ratios of 50:50, 70:30, and 80:20. Packaging options include bare fiber, fan-out, or module types. The differences in these specifications affect the insertion loss, uniformity, wavelength dependence, and compatibility with different optical fibers and connectors.
5. How should FBT Splitter be selected and deployed in different network topologies? What are the considerations?
When selecting and deploying FBT splitters in network topologies, several factors must be considered, such as the required splitting ratio, power budget, wavelength range, and network architecture. For example, in a passive optical network (PON), a 1x32 splitter is typically used to distribute signals from a central office to multiple subscribers. In contrast, in a wavelength-division multiplexing (WDM) network, multiple channels at different wavelengths can be split and combined using a combination of FBT and PLC splitters in various configurations.
6. How to test and diagnose the performance of the splitter during the use of FBT Splitter? What are the key testing indicators and methods?
Testing and diagnosing the performance of the splitter during use involves measuring key performance parameters, such as insertion loss, return loss, polarization-dependent loss, and uniformity. These tests can be conducted using specialized equipment, such as an optical time-domain reflectometer (OTDR), a light source, and a power meter. Indicators of proper splitter performance include low insertion loss, high uniformity, and wavelength independence. Any deviations from these standards could indicate an issue in the manufacturing process, installation, or maintenance of the splitter.
FBT splitters play a crucial role in ensuring efficient and reliable data transmission in fiber optic networks. Their cost-effectiveness, reliability, and various configuration options make them an essential tool for network operators and installers. By carefully selecting and deploying FBT splitters, network operators can create robust and high-performance networks that meet the increasing demands of the digital age.
