Outdoor Optical Fiber Cable Double Armoured and Double Sheathed Central Loose Tube Fiber Optic Cable GYXTW53

Outdoor Optical Fiber Cable Double Armoured and Double Sheathed Central Loose Tube Fiber Optic Cable GYXTW53

Item No.: Y-FO-FC-025

GYXTW53 armoured loose tube fiber optic Cable,
constructed with a central tube filled with water blocking
jelly giving it excellent water and moisture resistance.

INQUIRY

Description Parameters Company Profile Related product

Description:

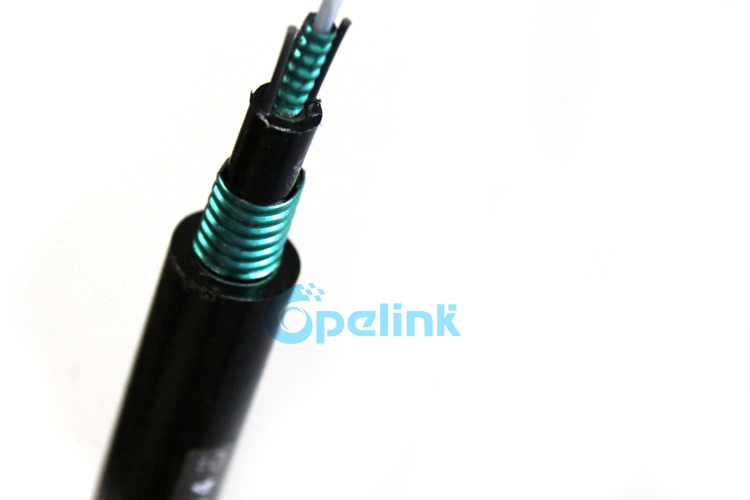

The GYXTW53 armoured loose tube fiber optic Cable, constructed with a central tube filled with water
blocking jelly giving it excellent water and moisture resistance. Two corrugated steel armouring and two
steel wires strengthening with in the inner PE sheath and an outer PE sheath give this cable excellent tensile
strength, mechanical and environmental protection.They have small diameter, light weight and installation
friendly since they come in a single tube with loose tube fiber count up to 12 fibers. Their compact construction
protects the loose tube from shrinking, the double armour makes it crush, rodent and impact resistance,
the outer PE sheath gives it ultraviolet protection.

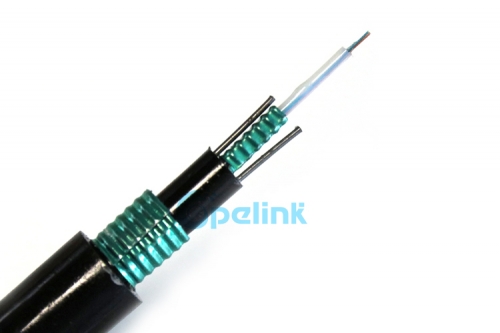

GYXTW53 Outdoor Double Armoured and Double Sheathed Central Loose Tube Fiber Optic Cable

Features：
·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Crush resistance and flexibility
·PSP enhancing moisture-proof
·Two parallel steel wires ensure tensile strength
·PE sheath gives excellent UV protection
·Small diameter, light weight and friendly installation
·Long delivery length

Application：
1. Adopted to Outdoor distribution
2. suitable for outdoor distribution through ducts, conduits or aerial pipe lines.
3. Long distance and local area network communication
4. Used outdoor cabling

Technical Parameters:

Cable Type	Fiber Count	Tubes	Fillers	Cable Diameter (mm)	Cable Weight (kg/km)	Tensile Strenth Long/Short Term(N)	Crush Resistance Long/Short Term(N/mm)	Bend Radius Static/Dynamic(mm)
GYXTW53-2-6	2-6	1	5	13.7	190	1000/3000	300/1000	10D/20D
GYXTW53-8-12	8-12	2	4	13.7	190	1000/3000	300/1000	10D/20D
GYXTW53-14-18	14-18	3	3	13.7	190	1000/3000	300/1000	10D/20D
GYXTW53-20-24	20-24	4	2	13.7	190	1000/3000	300/1000	10D/20D

Note:For more details, please contact our sales
