Optical Fiber Cable, Outdoor Armored PE Loose Tube Fiber Optic Cable GYTY53

Optical Fiber Cable, Outdoor Armored PE Loose Tube Fiber Optic Cable GYTY53

Name: Optical Fiber Cable, Outdoor Armored PE Loose Tube Fiber Optic Cable GYTY53
Brand: OPELINK
SKU: Y-FO-FC-022
Availability: InStock
Rating: 5 (1 reviews)

Item No.: Y-FO-FC-022

The armoured loose tube fiber optic cable,200/ 250μm are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene

INQUIRY

Description Parameters Company Profile Related product

Product Overview

The GYTY53 armored fiber cable is engineered for the most demanding outdoor installations. With double steel tape armor and PE inner/outer sheaths, this cable provides maximum protection for direct burial, aerial, and pipeline applications.

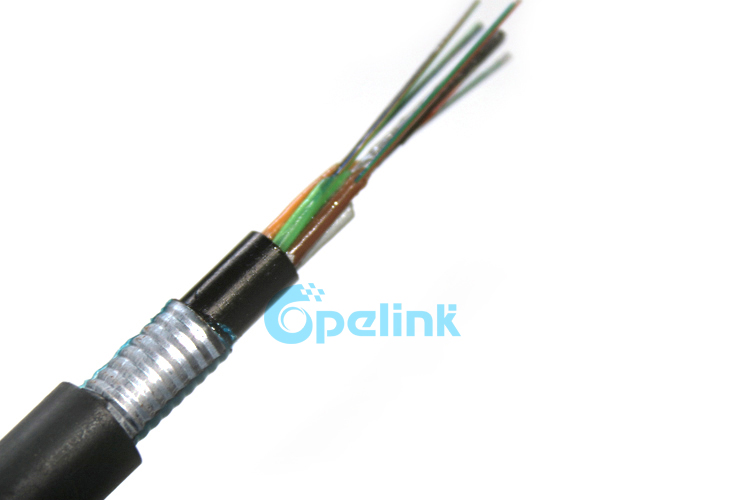

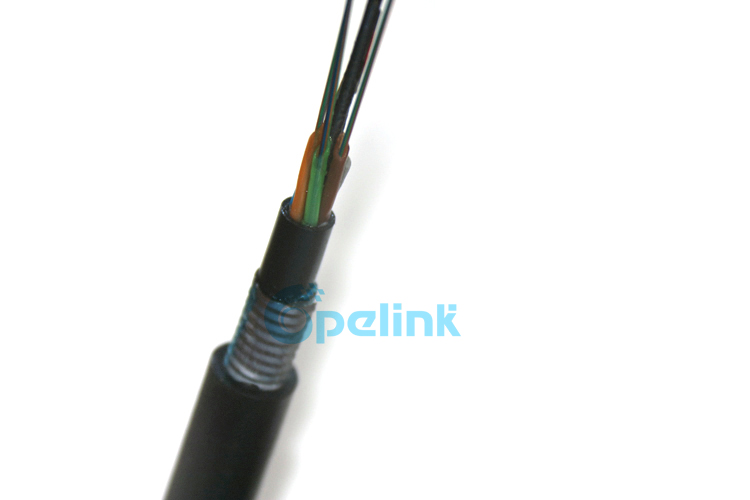

GYTY53 Outdoor Armored PE Loose Tube Fiber Optic Cable

Technical Specifications

Parameter	Specification
Fiber Count	Up to 216 cores
Fiber Type	Single-mode or Multimode
Structure	Loose tube, SZ stranded
Armor	Double steel tape
Sheath	PE inner + PE outer
Crush Resistance	≥3000N/100mm
Temperature	-40°C to +70°C
Standards	ITU-T G.652, IEC 60794

Key Applications

Direct Burial: Underground without conduit
Rocky Terrain: Mining and construction areas
River Crossings: Submarine and underwater
Railway Trackside: Heavy mechanical protection

Product Advantages

Double armor for extreme protection
Direct burial without additional protection
Up to 216 cores for high capacity
Superior crush and impact resistance

Frequently Asked Questions

Q: How deep should it be buried?
A: Minimum 60cm, 90cm in traffic areas.
Q: Is it rodent proof?
A: Double steel tape prevents rodent damage.
Q: Can it be used underwater?
A: Yes, suitable for temporary underwater use.

Technical Parameters:

Cable Type (Increased by 2 fibers)	Fiber Count	Tubes + Fillers	Fiber in Tube	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm
GYTY53 2 ~36	2 ~36	6	6	12.6	184	1000/3000	1000/3000
GYTY53 38 ~ 72	38 ~ 72	6	12	14.0	216	1000/3000	1000/3000
GYTY53 74 ~ 96	74 ~ 96	8	12	15.7	260	1000/3000	1000/3000
GYTY53 98 ~ 120	98 ~ 120	10	12	17.4	301	1000/3000	1000/3000
GYTY53 122 ~ 144	122 ~ 144	12	12	19.0	354	1000/3000	1000/3000
GYTY53 146 ~ 216	146 ~ 216	18	12	19.0	350	1000/3000	1000/3000

Note:For more details, please contact our sales
