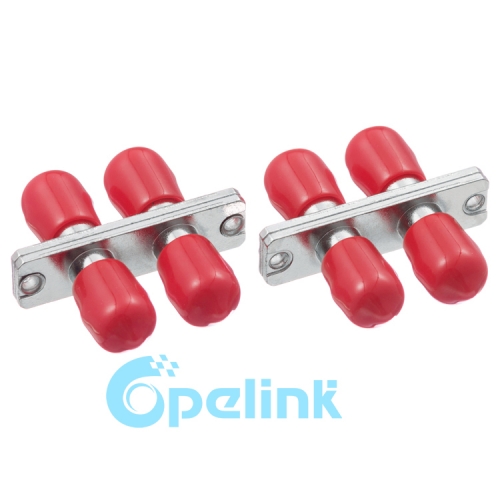

ST-ST Metal Duplex Singlemode Fiber Optic Adapter

Item No.: Y-FO-FA-047
ST-ST Metal Duplex Singlemode Fiber Optic Adapter, Professional production technology and product services, perfect product matching, high standard of parameter performance.
Description Parameters Company Profile Related Product
Description:
ST-ST Metal Duplex Singlemode Fiber optic adapter is also called fiber optic coupler. It is used to provide a cable to cable fiber
connection. People sometimes also name them to be mating sleeves and mixture adaptors. Mating sleeves means this fiber optic
adapter is used to connect the same type fiber optic connectors, while mixture adapters are the fiber optic cable adaptor types used
to connect different kinds of fiber optic connectors. We provide a complete line of adapters for fiber optic connection, like ST, SC, FC,
LC, MTRJ,MPO, MU,  E2000,style fiber optic adapters for both multimode and single-mode fiber applications.

ST-ST Metal Duplex Singlemode Fiber Optic Adapter with flange
Features:
Complies With  IECTIA/EIAJIS
Flammability: UL94 V-0 Grade
RoHS directive compliance
Sleeve materialceramic

Application
Fiber Optic Transmission Network
Cable TV network
Optical  Fiber Lan
Optical fiber testing instrument
ODFrack-mounted and wall-mounted optical fiber wiring unit


Order Information:
Type Type Fiber type Material Flange type Sleeve Application
SC
LC
FC
ST

SX=Simplex
DX=Duplex
QU=Quad
S=Single Mode
M=Multi-mode
P=Plastic PBT
M=Metal
L=Flanged
S=Flangeless
F=Flangeless with shutter
B=Blue  G=Green
E=Beige A=Aqua
M=Metal  Ni-
Plated
C- ceramic
Z=Zirconia Split

P=PC
A=APC



Specifications:
Parameters Singlemode Multimode
PC UPC APC PC
Insertion  LossdB 0.3 0.2 0.3 0.2
Return  LossdB 45 50 60 30
Interchange  abilitydB 0.2
RepeatabilitydB 0.2
Durability 1000matings
Operating Temp. -40~75
Storage Temp. -40~75
