ST-SC Singlemode Duplex Female to Male Fiber Adapter Plug-in Fiber Optic Adaptor Hybird Mating Fiber Optic Adapter

Item No.: Y-FO-FA-068
ST - SC Duplex Male to Female Hybird Mating Fiber Optic Adaptor, Professional Quality and Economic price, trustworthy!
Description Parameters Company Profile Related Product
Description:
ST-SC Singlemode Duplex fiber optic adapter/coupler male to female is also used to connect fiber optic cables together. It offers a solution for Hybird applications where the two different kinds of fiber optic connectors or cable assemblies need to be connected with each other. The main function of Hybird fiber optic adapter is for connection between various different fiber optic connectors, fiber optic patch cords, fiber optic pigtails and fiber optic equipments, different shapes, but it offers the point-to-point connection in the fiber optic network.

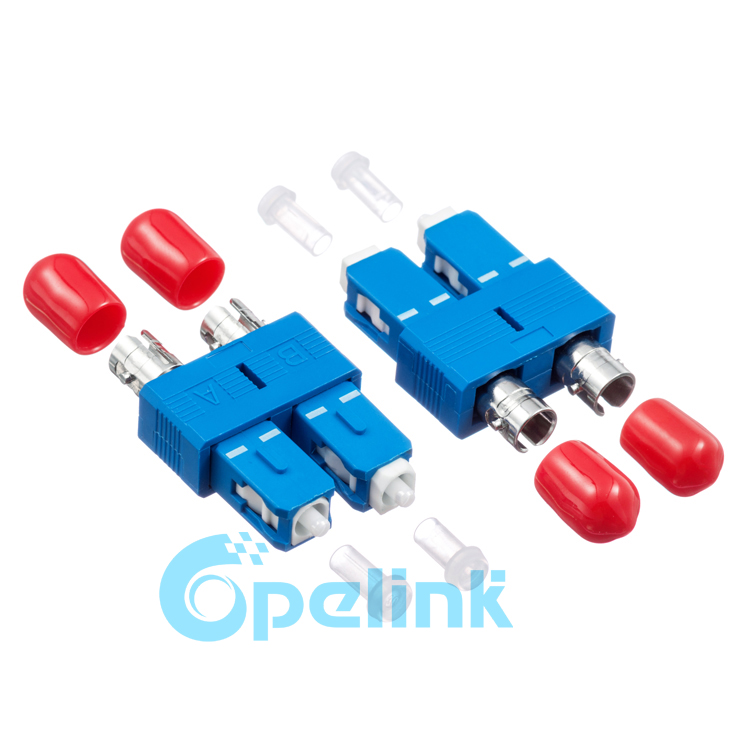

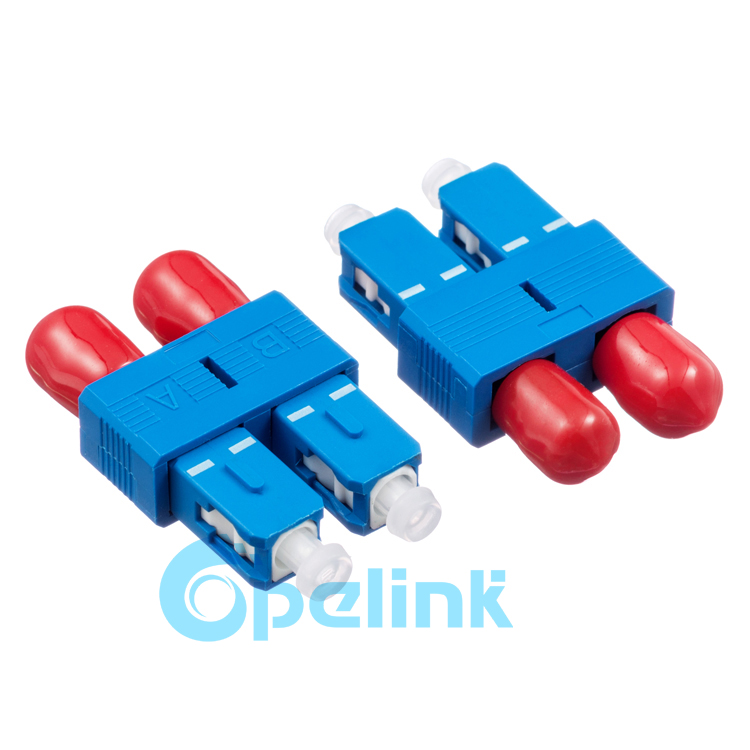

ST-SC Singlemode Duplex Female to Male Fiber Optic Adapter
Features:
Low insertion and back reflection loss, high precision alignment
Telcordia, TIA/EIA compliance
Compact design, Plastic housing
Good changeability and repeatability
Simplex, Duplex
Application
Communication Workshop
FTTH
Local Area Network
Fiber Sensor
CATV
Fiber Optical Communication System




  Specifications:
parameter Unit LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU MTRJ E2000
SM MM SM MM SM
PC UPC APC PC PC UPC PC PC APC
Insertion Loss(Typical)  dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return Loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Exchangeability dB ≤0.2 ≤0.2 ≤0.2
Repeatability dB ≤0.2 ≤0.2 ≤0.2
Durability Time >1000 >1000 >1000
Operating Temperature °C -40~75 -40~75 -40~75
Storage Temperature °C -45~85 -45~85 -45~85
Plug and Unplug force (g/f) 200—600
