Self-Supporting Aerial Optical Fiber Cable, Gyxtc8s Armored Fiber Cable, Good performance Outdoor Fiber Optic Cable

Item No.: Y-FO-FC-042
The Gyxtc8s Armored Fiber Cable, High tensile strength of stranded wires meet the requirement of self-supporting, Good mechanical and temperature performance.
Description Parameters Company Profile Related product

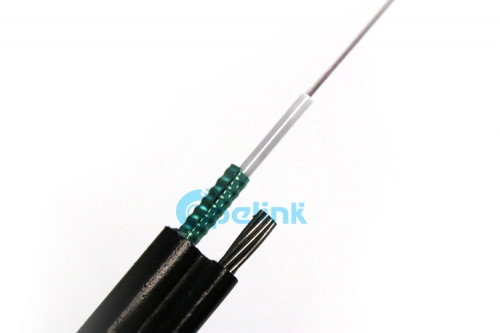

The GYXTC8S  Aerial Optical Fiber Cable,single-mode/multimode fibers are positioned in the loose tube,
which is made of high modulus plastic materials and filled with filling compound. PSP is longitudinally applied around
the loose tube, and water-blocking materials are distributed into interstices of it. Then. this part of cable accompanied
with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure
Gyxtc8s Self-Supporting Aerial Optical Fiber Cable, and it is also a cost-effective product of Opelink
High tensile strength of stranded wires meet the requirement of self-supporting;
Good mechanical and temperature performance;
High strength loose tube that is hydrolysis resistant;
Special tube filling compound ensure a critical protection of fiber;
PSP enhancing moisture-proof;
Small diameter, light weight and friendly installation;
Long delivery length.
1. Suitable for Self supporting Aerial
2. Long distance and local area network communication

Technical Parameters:
Cable Type Fiber Count Max. Fibers in Tubes Cable Weight
Cable Diameter
Tensile Strength
Long/Short Term N
Crush Resistance
Long/Short Term N/100mm
GYXTC8S 2- 8 2 - 8 8 117.0 8.1 x 16.9 2000/6000 300/1000
GYXTC8S 10-12 10 -12 12 121.0 8.3 x 17.0 2000/6000 300/1000

Note:For more details, please contact our sales
