SC/PC Fiber Fast connector, Economical Field-installable Connector, Easy-to-operate FTTH Fast Assembly Connector

Item No.: Y-FO-FF-007
Fiber Fast connectors are called field assembled connectors. Our products can be offered in both open and prefabricated types, which meet the optical and mechanical specifications of standard fiber optic connectors.
Description Parameters Company profile Related Product
Fiber Fast connector is used for field-installable optical fiber connector. It can provide Open flow and Precast type of products,
whose optical and mechanical specification meets the standard optical fiber connector. it is designed for high quality and high efficiency
for installation. the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables. Adapted
fiber pre-installed structure, and convenient for field installation.

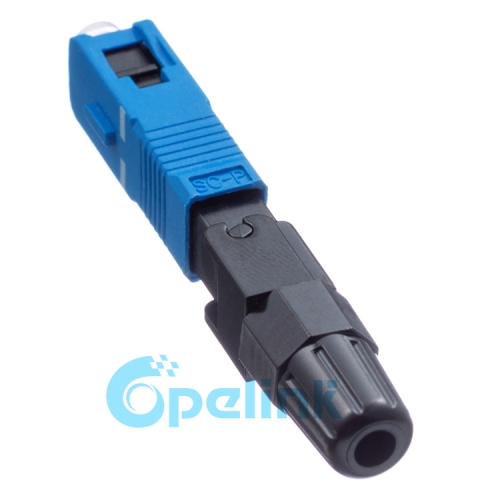

SC/PC Singlemode Easy-to-operate FTTH Fiber Fast Assembly Connector
.Easy and fast installation, 30 seconds to learn install, 90 seconds to operate in the field
.No need of polishing or adhesive, ceramic ferrule with embedded fiber stub is pre-polished
.Fiber aligned in v-groove through the ceramic ferrule
.Low-volatile reliable matching liquid preserved by side cover
.Unique bell-shaped boot maintains the mini fiber bend radius
.Precision mechanical alignment insures low insertion loss
.Pre-installed, on-site assembly without end face grinding and consideration

.Used to open the FTTH fiber terminal end.
.Fiber Optic Distribution Frame, Patch Panel, ONU
.In the box, cabinet, such as wiring into the box.
.Maintenance or emergency restoration of fiber network
.The construction of the fiber end user access and maintenance.
.Optical fiber access of mobile base station.
.For FTTH Drop Cable field termination.
.For emergency fiber path repair.
.FTTH, LAN and other fiber optic system.

Parameter  SM(9/125), MM(50/125, 62.5/125)
Fiber  cable  type 3.0x2.1mm flat,  2.0mm, 3.0mm  round Drop  Cable
Insertion  Loss ≤ 0.3dB(pc), ≤ 0.2dB(APC)
Return  Loss ≥ 50dB(PC), ≥ 55dB(APC)
Fastening Strength of Bare Fiber ≥ 5N
Tighten Strength of Coating ≥ 10N
Tensile Strength Test ≥ 30N
Tensile  strength  (20  N) IL≤ 0.2dB
Operation Time ≤ 90 seconds
Success Rate ≥ 98%
Humidity (+25+65 93 R.H.100 hours) ≤ 0.2dB
Mechanical Durability (500 times) IL ≤ 0.3dB
Drop Test (4meters concrete floor, once each direction, three times in total) IL ≤ 0.3dB
Reused Times Above 5 times
Operating  Temperature -40° C~70° C
Storage  Temperature -40° C  ~  +85° C(Circular Temperature: sustain 100 hours≤0.2dB)
For more details, please contact our sales.
