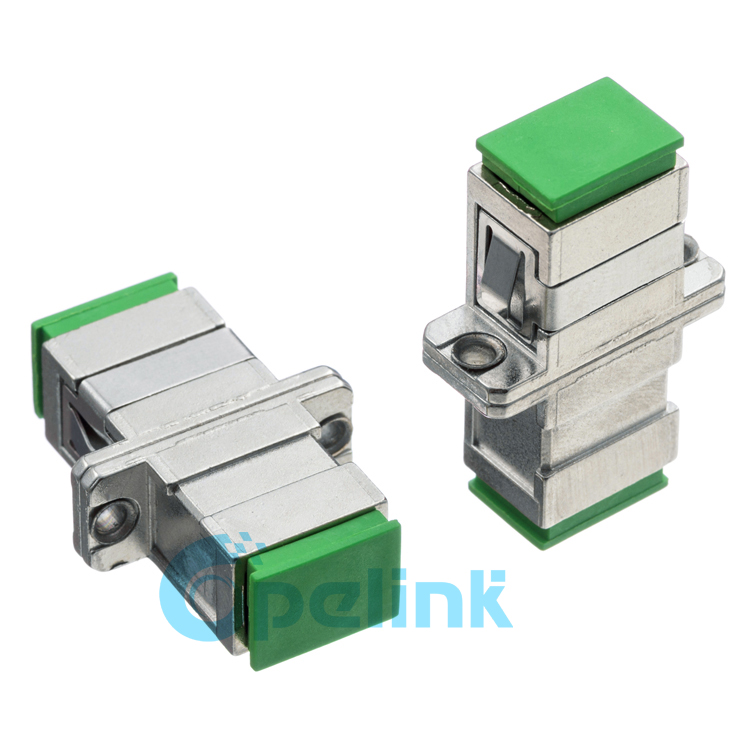

SC/APC Metal Simplex Singlemode Fiber Optic Adapter

Item No.: Y-FO-FA-042
SC/APC Singlemode Fiber Optic Adapter, Metal Housing, Well assembled, dimensions designed to meet Simplex SC/APC Adapter standards.
Description Parameters Company Profile Related Product
Description:
SC/APC Metal Simplex Singlemode Fiber optic adapter is also called fiber optic coupler. It is used to provide a cable to cable fiber connection.People sometimes also name them to be mating sleeves and mixture adaptors. Mating sleeves means this fiber optic adapter is used to connect the same type fiber optic connectors, while mixture adapters are the fiber optic cable adaptor types used to connect different kinds of fiber optic connectors. We provide a complete line of adapters for fiber optic connection, like ST, SC, FC, LC, MTRJ, MPO, MU,  E2000,style fiber optic adapters for both multimode and single-mode fiber applications.
SC/APC Simplex Singlemode Fiber Optic Adapter, Metal Housing
Features:
Complies With  IEC、TIA/EIA、JIS ;
Flammability: UL94 V-0 Grade;
RoHS directive compliance
Sleeve material:ceramic

Application:
Fiber Optic Transmission Network
Cable TV network
Optical  Fiber Lan
Optical fiber testing instrument
ODF,rack-mounted and wall-mounted optical fiber wiring unit


Specifications:
Parameters Singlemode Multimode
PC UPC APC PC
Insertion  Loss(dB) ≤0.3 ≤0.2 ≤0.3 ≤0.2
Return  Loss(dB) ≥45 ≥50 ≥60 ≥30
Interchange  ability(dB) ≤0.2
Repeatability(dB) ≤0.2
Durability >1000matings
Operating Temp.(℃) -40~75
Storage Temp. (℃) -40~75
