Outdoor Armored Optical Fiber Cable Double Jacket Fiber Optic Cable GYTA53

Item No.: Y-FO-FC-020
Outdoor Armored Optical Fiber Cable GYTA53 ,200um or 250um Bare Fibers, are positioned in a loose tube made of a
high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with
polyethylene (PE
INQUIRY
Description Parameters Company Profile Related product
Description:

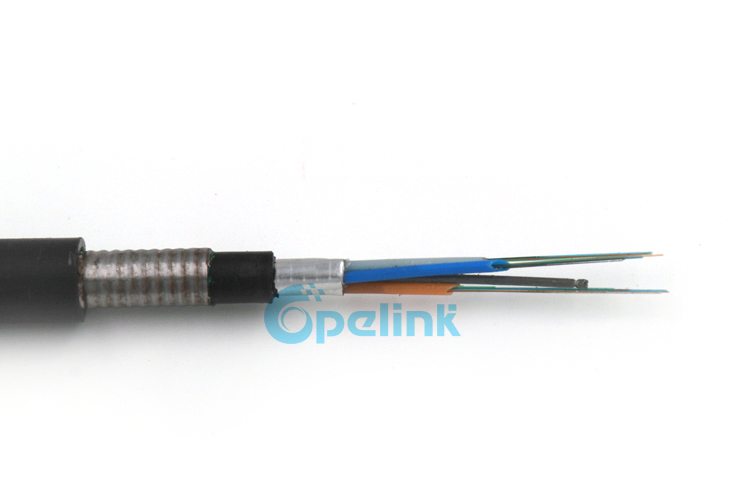

Outdoor Armored Optical Fiber Cable GYTA53 ,200um or 250um Bare Fibers, are positioned in a loose tube made of a
high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with
polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes
(and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene
Laminate (APL) is applied around the cable core,After with a PE sheath.then the PSP is longitudinally applied over the inner
sheath, the cable is completed with a PE outer sheath.

Features:
.Good mechanical and temperature performance
.High strength loose tube that is hydrolysis resistant
.Special tube filling compound ensure a critical protection of fiber
.Crush resistance and flexibility
.The following measures are taken to ensure the cable watertight:
.Steel wire used as the central strength member
.Loose tube filling compound
.APL moisture barrier
.PSP enhancing moisture-proof
.Water-blocking materia


Application:
.Long distance and local area network(LAN) communication.
.Aerial & conduit/duct application.


Tags:
Fiber Optic PLC Splitter  | Optical CWDM/DWDM/AWG  | FTTH Drop Fiber Optic Cable  | Fiber Optic PatchCord/jumper/Patch cable  |
Fiber Optic Fast Connector  | Optical Switch  | Fiber Optic Adapter  | Fiber Optic Attenuator  | Fiber Optic Cable TerminalBox |

Technical Parameters:
Cable Type Fiber Count Loose tube count Number of filled ropes Cable
Diameter
mm
Cable Weight      Kg/km Tensile Strength
Long/short term
     N
Crush Resistance   Long/short term
     N/100m
Bending Radius     Static/dynamic
     mm
GYTA-2-6 2-6 1 4 9.5 90 1000/2000 300/1000 10D/20D
GYTA-8-12 8-12 2 3 9.5 90 1000/2000 300/1000 10D/20D
GYTA-14-18 14-18 3 2 9.5 90 1000/2000 300/1000 10D/20D
GYTA-20-24 20-24 4 1 9.5 90 1000/2000 300/1000 10D/20D
GYTA-26-30 26-30 5 0 9.5 90 1000/2000 300/1000 10D/20D
GYTA-32-36 32-36 5 0 9.5 90 1000/2000 300/1000 10D/20D
GYTA-38-48 38-48 5 0 9.5 90 1000/2000 300/1000 10D/20D
GYTA-50-60 50-60 5 0 9.5 90 1000/2000 300/1000 10D/20D
GYTA-62-72 62-72 6 0 10.0 126 1750/3500 300/1000 10D/20D
GYTA-74-84 74-84 7 1 11.0 145 1750/3500 300/1000 10D/20D
GYTA-86-96 86-96 8 0 11.0 145 1750/3500 300/1000 10D/20D
GYTA-98-108 98-108 9 1 12.5 180 1750/3500 300/1000 10D/20D
GYTA-110-120 110-120 10 0 12.5 180 1750/3500 300/1000 10D/20D
GYTA-122-132 122-132 11 1 13.5 228 1750/3500 300/1000 10D/20D
GYTA-134-144 134-144 12 0 13.5 228 1750/3500 300/1000 10D/20D

Note:For more details, please contact our sales
