Optical Isolator: Single/Dual Stage Fiber Optical Isolator

Item No.: Y-FO-OI-003
We can supply a custom Optical isolator service that can combine the best features of our entire Fiber isolator products, welcome to inquire.
Description Parameters Company Profile Related Product
An optical isolator is a passive magneto-optic device that only allows light to travel in one direction. Isolators are used to protect a source
from back reflections or signals that may occur after the isolator. Back reflections can damage a laser source or cause it to mode hop,
amplitude modulate, or frequency shift. In high-power applications, back reflections can cause instabilities and power spikes.Optical isolators
are also known as optoisolators, optocouplers and photocouplers.

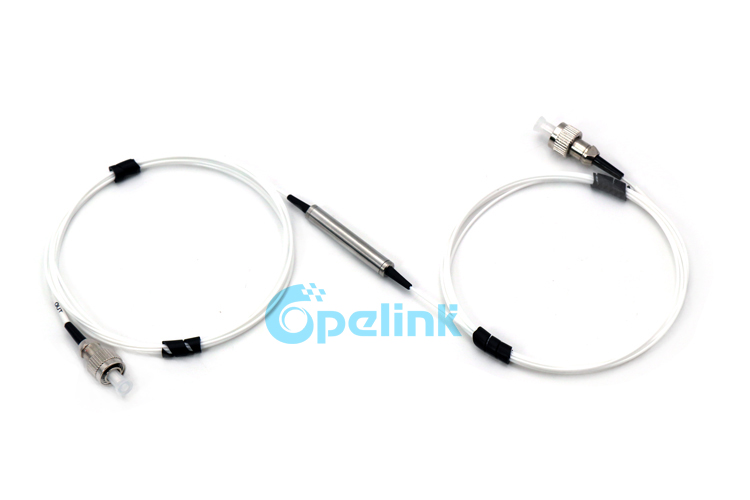

a mini type steel tube Optical Isolator with FC connector
High Isolation
Low Insertion Loss
High Return Loss
Low Polarization Sensitivity
Optical Fiber Amplifiers
CATV Fiber optic Links
Fiber optic Systems Testing
Fiber optic LAN Systems
Fiber Laser

Optical Specifications:
 Parameters Unit Single Stage Dual Stage
Operating Wavelength nm 1310,1480,1550,1600
Typical Peak Isolation dB ≥40 ≥55
Minimum Isolation dB ≥30 ≥40
Typical Insertion Loss dB ≤0.5 ≤0.6
Maximum Insertion Loss dB ≤0.6 ≤0.8
PDL dB ≤0.05 ≤0.1
PDM Ps ≤0.25 ≤0.05
Bandwidth nm ±20nm ±30nm
Return Loss dB 55 55
Maximum Power Handing mW 300
Operating Temperature 0~+70
Storage Temperature -40~+85
1.ALL specification include the effect of all states of polarization.
2.Values referenced without connectors,insertion loss for a connector-pair is 0.20dB to 0.30dB.
For more details, please contact our sales
