| Parameter |
values |
| Geometry Characteristics |
| Core Diameter[μm] |
-- |
50±2.5 |
| Core Non-Circularity[%] |
-- |
≤5.0 |
| Cladding Diameter[μm] |
-- |
125.0±1.0 |
| Cladding Non-Circularity[%] |
-- |
≤0.6 |
| Coating Diameter[μm] |
-- |
245±7 |
| Coating/Cladding Concentricity Error[μm] |
-- |
≤10.0 |
| Coating Non-Circularity[%] |
-- |
≤6.0 |
| Core/Cladding Concentricity Error[μm] |
-- |
≤1.0 |

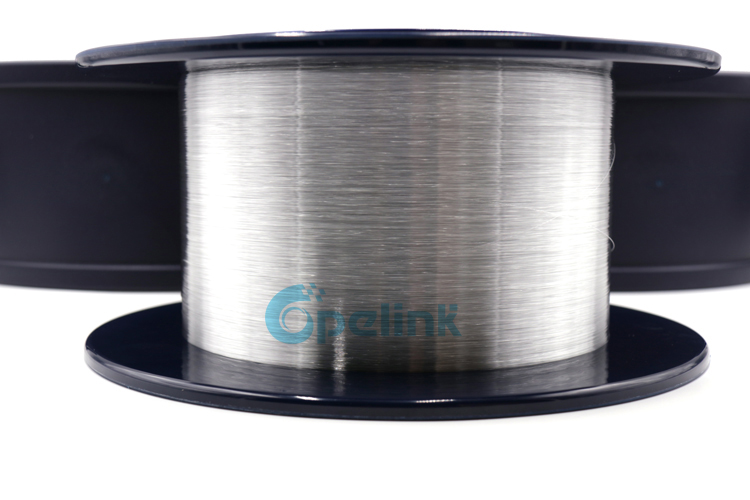

| Delivery Length[km/reel] |
-- |
up to 8.8 |
| Optical Characteristics |
| Attenuation[dB/km] |
850nm |
≤2.4 |
| |
1300nm |
≤0.6 |
| -- |
-- |
OM2+/OM3/OM4 Bend Insensitive |
| Overfilled Modal Bandwidth[MHz·km] |
850nm |
≥700/≥1500/≥3500 |
| |
1300nm |
≥500/≥500/≥500 |
| Effective Modal Bandwidth[MHz·km] |
850nm |
≥950/≥2000/≥4700 |
| Application support distance on |
-- |
-- |
| 40GBASE-SR4 / 100GBASE-SR10[m] |
850nm |
-/100/150 |
| 10GBASE-SR[m] |
850nm |
150/300/500 |
| 1000BASE-SR[m] |
850nm |
750/1000/1100 |
| DMD Specification |
IEC60793-2-10 |
| Numerical Aperture |
-- |
0.200±0.015 |
| Group Refractive Index |
850nm |
1.482 |
| |
1300nm |
1.477 |
| Zero Dispersion Wavelength，λ0[nm] |
-- |
1295-1340 |
| Zero Dispersion Slope，S0[ps/(nm2·km)] |
1295nm≤λ0≤1310nm |
≤0.105 |
| |
1310nm≤λ0≤1340nm |
≤0.000375(1590-λ0) |
| Macrobending Loss1 |
-- |
-- |
| 2 Turns @ 15 mm Radius[dB] |
850nm |
≤0.1 |
| |
1300nm |
≤0.3 |
| 2 Turns @ 7.5 mm Radius[dB] |
850nm |
≤0.2 |
| |
1300nm |
≤0.5 |
