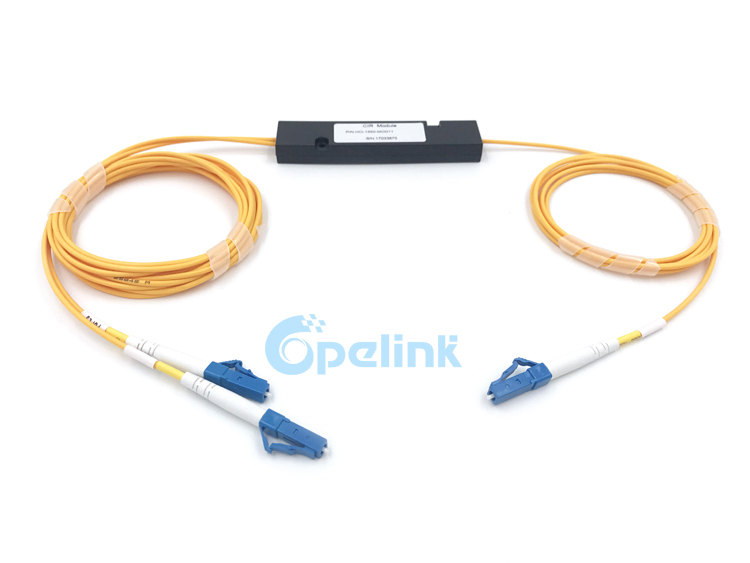

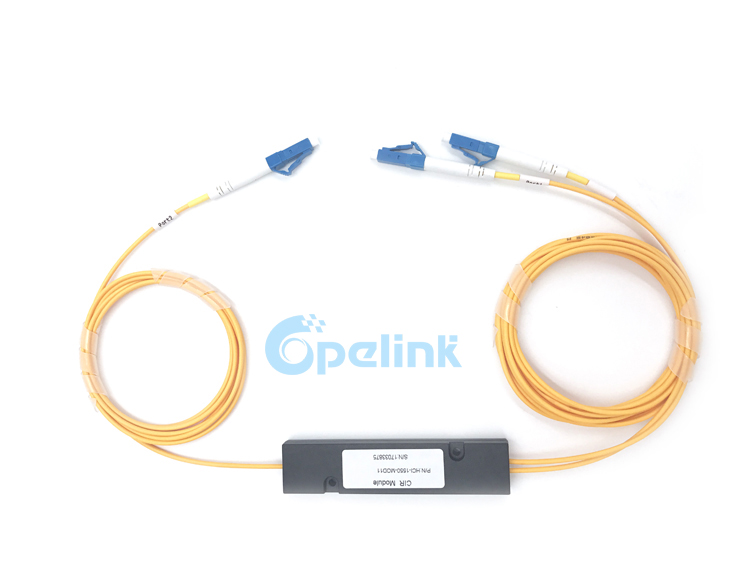

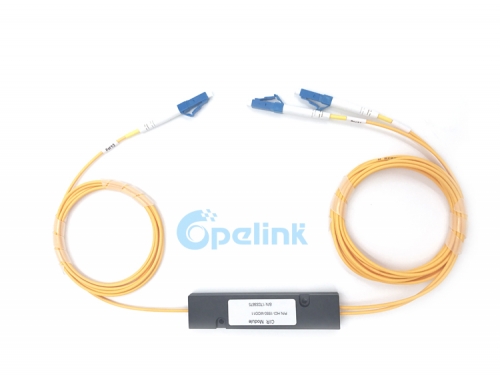

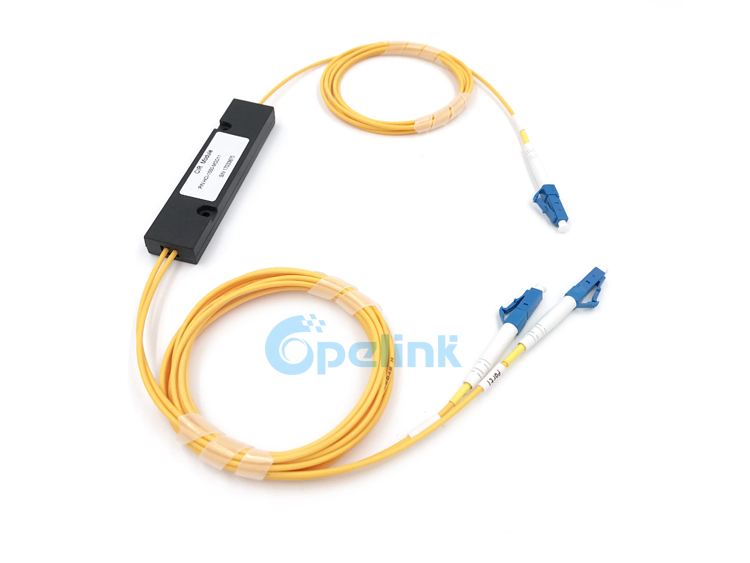

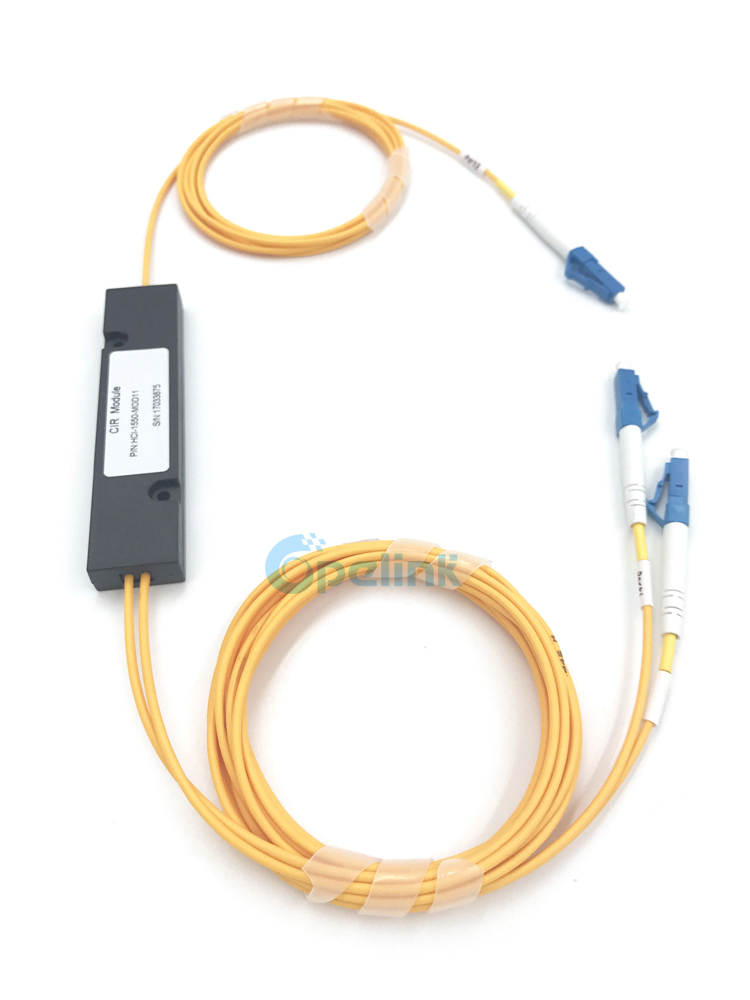

LC/PC Low PDL 3 Ports Optical Circulator For Optical EDFA

Item No.: Y-FO-OC-001
Polarization independent optical circulator is a micro-optic passive Pb-free device based on patented technology. Owning the features of low insertion loss, high isolation, high return loss, and low polarization dependent loss.
INQUIRY
Description Parameters Company Profile Related Product

Description:

Optical circulator is a special fiber optic device that is capable of separating optical power traveling in opposite

directions in one optical fiber.

It can be used to achieve bi-directional transmission over a single fiber. Because
of its high isolation between the
input and reflected optical power and its low insertion loss, optical circulator is
widely used in advanced communication
systems and fiber-optical sensor systems.


Features:
Low Insertion Loss
Wide Band High Isolation

Ultra-low PDL and PMD
Compact In-Line Package
High Stability and Reliability

Application:

Metro Area Network
Wavelength Add/Drop
Dispersion Compensation
Fiber optic instruments

DWDM OTDR System

DWDM & OADM Networks

Bi-Directional Transmission System

Fiber Frag Gratting

EDFA, optical fiber amplifiers
Dispersion compensation modules
Optical fiber communication networks




Order Information:
Type Operating Wavelength Fiber type package cable type fiber length connector (Input-Output)
3=3port
4=4port
13=1310nm
15=1550nm
16=1585nm
CL=C+L Band 1525~1610nm
S1=G652D
S2=G657A1
06=5.5x50mm
Steel Tube
04=90x20x9.5mm
Plastic Box
B=250um Bare Fiber
L=900um Loose Tube
2=2.0mm
3=3.0mm
0.5M=0.5M
1M=1M
XX=OTHER


00=None
FA=FC/APC
FU=FC/UPC
SA=SC/APC
SU=SC/UPC
ST=ST/UPC
LU=LC/UPC

Optical Specifications:
Parameter Specification
Configuration Port 1 to Port 2 to Port 3 Port 1 to Port 2 to Port 3 to Port 4
Operation Wavelength (nm) 1310±30 or 1550±30 or 1585±30 1525 to 1610 1310±30 or 1550±30
I.L (dB) Typical 0.6 1.0 0.8
Maximum 0.8 1.2 1.0
Typical Isolation (dB) 50 50 50
Minimum Isolation (dB) 40 35 40
Cross Talk (dB) ≥50 ≥50 ≥50
Polarization Dependent Loss (dB) <0.15 <0.2 <0.2
Polarization Mode Dispersion <0.1 <0.1 <0.1
Return LossdB ≥50 ≥50 ≥50
Power Handling (mW) 300 300 300
Operating Temperature (℃) -0~+70 -0~+70 -0~+70
Storage Temperature (℃) -40~+85 -40~+85 -40~+85
Note:
1.All the data above does not include connectors
2.For more details, please contact our sales
