LC-LC Plastic Square Duplex Multimode OM4 Fiber Optic Adapter

Item No.: Y-FO-FA-028
OM4 LC-LC Duplex Square Fiber Optic Adapter, Standard purple color, Plastic Housing, The design meets the standard, and the matching accuracy is high.
Description Parameters Company Profile Related Product
Description:
Fiber optic adapter is also called fiber optic coupler. It is used to provide a cable to cable fiber connection. People sometimes
also name them to be mating sleeves and mixture adaptors. Mating sleeves means this fiber optic adapter is used to connect
the same type fiber optic connectors, while mixture adapters are the fiber optic cable adaptor types used to connect different
kinds of fiber optic connectors. We provide a complete line of adapters for fiber optic connection, like ST, SC, FC, LC, MTRJ,
MPO, MU,  E2000,style fiber optic adapters for both multimode and single-mode fiber applications.

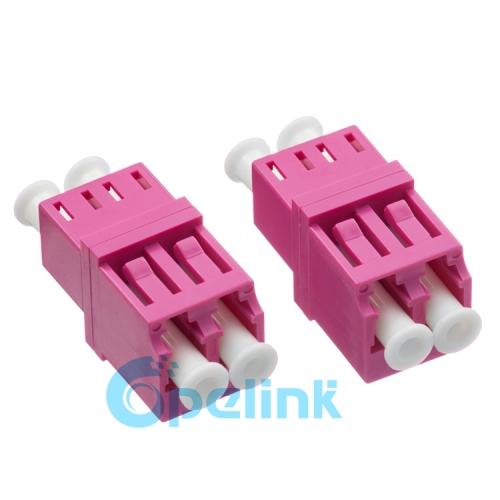

LC-LC Square Duplex Multimode OM4 Fiber Optic Adapter, purple color
Features:
Complies With  IECTIA/EIAJIS
Flammability: UL94 V-0 Grade
RoHS directive compliance
Sleeve materialceramic

Application
Fiber Optic Transmission Network
Cable TV network
Optical  Fiber Lan
Optical fiber testing instrument
ODFrack-mounted and wall-mounted optical fiber wiring unit



Order Information:
Type Type Fiber type Material Flange type Sleeve Application
SC
LC
FC
ST

SX=Simplex
DX=Duplex
QU=Quad
S=Single Mode
M=Multi-mode
P=Plastic PBT
M=Metal
L=Flanged
S=Flangeless
F=Flangeless with shutter
B=Blue  G=Green
E=Beige A=Aqua
M=Metal  Ni-
Plated
C- ceramic
Z=Zirconia Split

P=PC
A=APC


Specifications:
Parameters Singlemode Multimode
PC UPC APC PC
Insertion  LossdB 0.3 0.2 0.3 0.2
Return  LossdB 45 50 60 30
Interchange  abilitydB 0.2
RepeatabilitydB 0.2
Durability 1000matings
Operating Temp. -40~75
Storage Temp. -40~75
