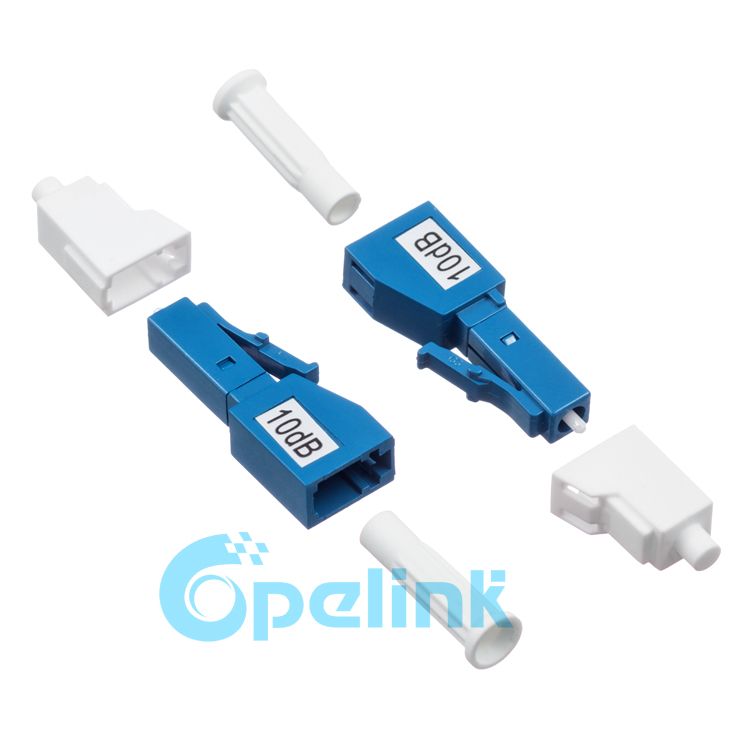

LC-LC Connector type Fiber Optic Attenuator, Plug-in Fixed Optical Attenuator without handle

Item No.: Y-FO-OA-016
LC male to LC female Fixed Fiber Optic Attenuator, Like the MU type Fiber Attenuator, it has the advantages of small size and high precision.
  • Brand Name: OPELINK
  • Place of Origin: Guangdong, China
  • Product name: Fixed Optical Attenuator
  • Low Price: 0.50 USD
  • Description Parameters Company profile Related Product
    LC-LC Fixed fiber optic attenuators are used in the fiber optic links to reduce the optical power at a certain level.Commonly used fiber optic attenuators
    are the female to male type, which is also called a plug fiber attenuator. They are with ceramic ferrules and there are various types to fit
    different kinds of fiber optic connectors. Fixed value fiber optic attenuators can reduce the optical light power at a fixed level,Variable fiber
    optic attenuators are with adjustable attenuation range. There are also attenuation fiber optic patch cables available, their function is same
    as attenuators and are used inline.

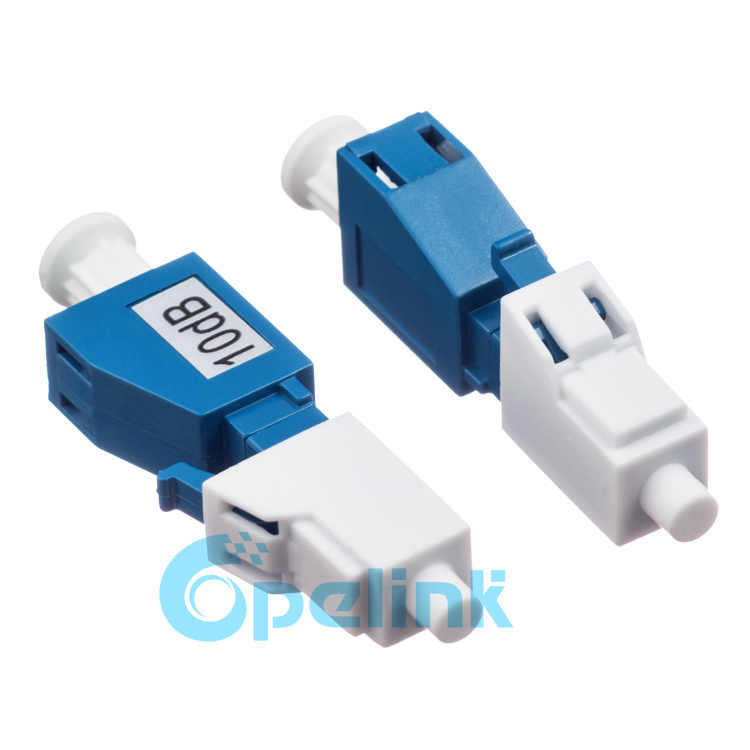

    LC male to LC female singlemode Fixed Fiber Optic Attenuator with blue housing
    Environmentally stable
    High performance
    Broadband coverage
    Complied with Telcordia (GR-910-CORE and GR-1221-CORE)

    Power management in optical networks
    Wavelength division multiplexing(WDM) system channel balancing
    Erbium Doped Fiber Amplifiers (EDFA)
    Optical add-drop multiplexers(OADM)
    Receiver protection
    Test equipment
    compensation of different connector attenuation

    Connector Type FC,SC,ST,LC,MU,Hybrid,etc.
    Attenuation Value 1dB ~ 30dB
    Model Fixed, In-line, Variable,Adapter (Female to Female), Connector (Male to Female)
    Operating Wavelength SM:1240 ~ 1620nm (Dual 1310/1550nm) MM:850/1300nm
    Return Loss UPC >55dB,APC >60dB
    Attenuation Tolerance +/-0.5 dB for 1 to 5dB attenuation
    +/-10% for 6 to 30dB attenuation
    Maximum Optical Input Power: 1000mW(SM);200mW(MM)
    Polarization Dependent Loss: ≤0.2dB
    Exchangeability: ≤0.2dB
    Repeatability: ≤0.2dB
    Durability:≤0.2dB Typical 1000 matings
    Operating Temperature Range: -40 ºCto 75ºC
    Storage Temperature Range: -40ºC to 85ºC
    Humidity: 95%RH
