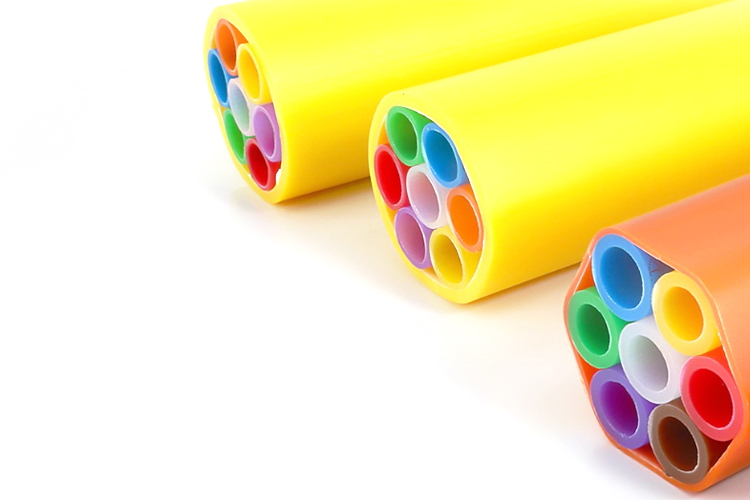

HDPE Direct Buried Microduct, cabling Installation Micro Duct for Fiber Optic Cable

Item No.: Y-FO-FC-067
Microducts for Fiber optic cable cabling are made of HDPE raw materials and have a long service life. Microduct products are most suitable for indoor infrastructure or outdoor optical cable cabling.
Description Parameters Company Profile Related product
Description:
Microducts for Fiber optic cable cabling are made of HDPE raw materials and have a long service life. Microduct products are most suitable for indoor infrastructure or outdoor optical cable cabling. All of these products can be customized to meet customer needs. Material, color, inner layer, diameter and purpose; All of these provide customers with a variety of products and are free to decide the most appropriate solution.





Features:
.A group of HDPE MicroDuct for Fiber Optic appications.
.Produce HDPE Pipes from high density Polyethylene fiber optic applications and bundled by external jacket with various colors or any other color required by specific project

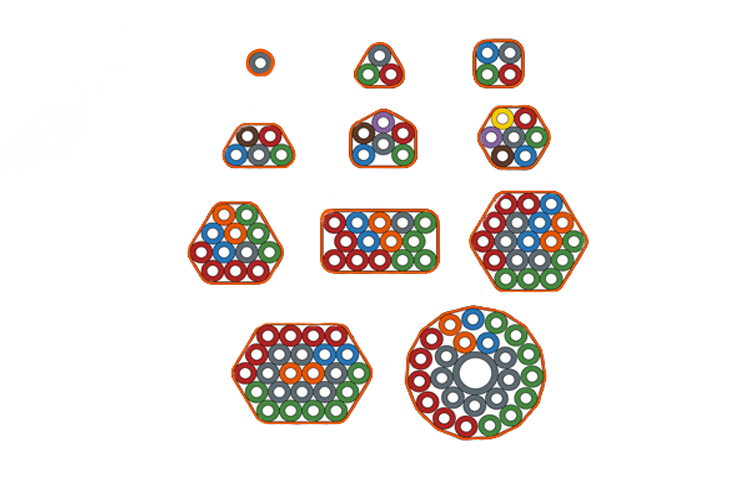

.Available in various configurations depending on the specific project application.
.Available with various wall thicknesses as required by specific project.



Application:
Direct Buried HDPE Microduct for Optical Fiber Cable



Technical Parameters:
5/3.5mm Series Microduct:
5/3.5mm O.D. (mm) Max. Tensile Strength (N) Weight (kg/km) Min. Bend Radius (mm) Crush (N)
1 way 11.8 1000 96 120 2000
2 ways 11.8*16.8 1400 140 160 2000
4 ways 18.9 2000 196 220 2000
7 ways 21.8 2600 255 300 2000
12 ways 27.8 3800 365 380 2000
19 ways 31.8 4800 475 500 2000
24 ways 36.8 6000 610 600 2000

10/8mm Series Microduct:
10/8mm O.D. (mm) Max. Tensile Strength (N) Weight (kg/km) Min. Bend Radius (mm) Crush (N)
1 way 16.8 1800 165 210 2000
2 ways 16.8*26.8 2800 258 260 2000
4 ways 30.8 4000 396 500 2000
7 ways 36.8 5500 545 640 2000

12/10mm Series Microduct:
12/10mm O.D. (mm) Max. Tensile Strength (N) Weight (kg/km) Min. Bend Radius (mm) Crush (N)
1 way 18.8 2000 190 240 2000
2 ways 18.8*30.8 3000 302 240 2000
4 ways 35.8 4800 467 540 2000
7 ways 42.8 6300 642 750 2000

Note:For more details, please contact our sales
