Diamond Polishing Film-1 Um for Use in Fiber Optic (Ferrule) Grinding and Polishing

Item No.: Y-FO-LF-008
Polishing films are polishing materials with ultra-precision flexibility. They are made with diamond powders evenly
coated on the surface of flexible substrate by adhesives and are often used for lapping and precision polishing of
optical fiber pins
Description

Description:
Polishing films are polishing materials with ultra-precision flexibility.

They are made with diamond powders evenlycoated on the surface of flexible substrate by adhesives and are often used for
lapping and precision polishing of optical fiber pins, semiconducting materials, metal rollers, etc.

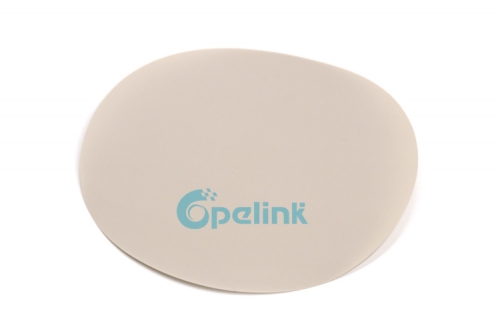

1um Fiber optic Lapping Film
Features:
Evenly-sprayed particles on coated surfaces.
Submicron powder particles make high polishing accuracy.
Positioned lapping & polishing to save abrasive materials.
Fine curved surface polishing effects because of flexible substrate.
Suitable for polishing with dry, water or oil.

Applications:
Optical fibers and connectors;
flat-panel display;
Optical lens, crystals, LED;
Motor shafts and steering devices;
Metal rollers & shafts;
Magnetic head, HDD;
Semiconducting materials (gallium arsenide, indium phosphide, etc.)

Specification:
5"(127mm) Disc    other size can be customized
Particle Size:0.5µm, 1µm, 3µm , 6µm , 9µm, 30um
This Diamond lapping film is utilized for high precision coating method when dealing with fiber optic polishing operations.
The diamond articles are evenly spread on a 3 mil PET packing. The high hardness ceramic ferrule grinding process can
effectively remove marks and blemishes from ferrules.
