Description:

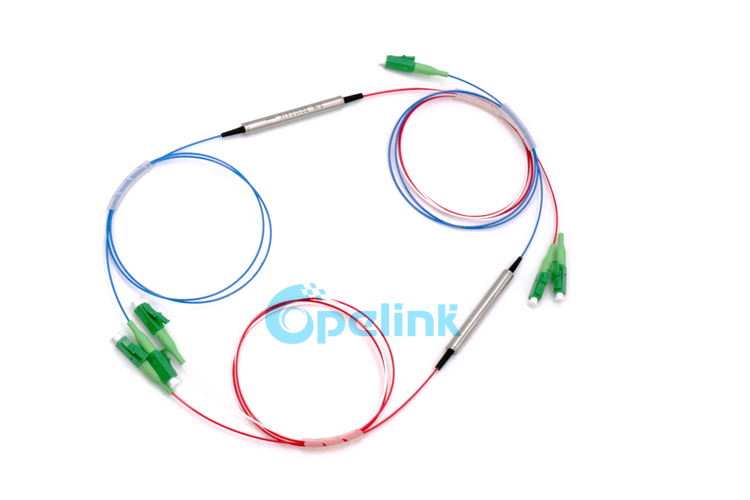

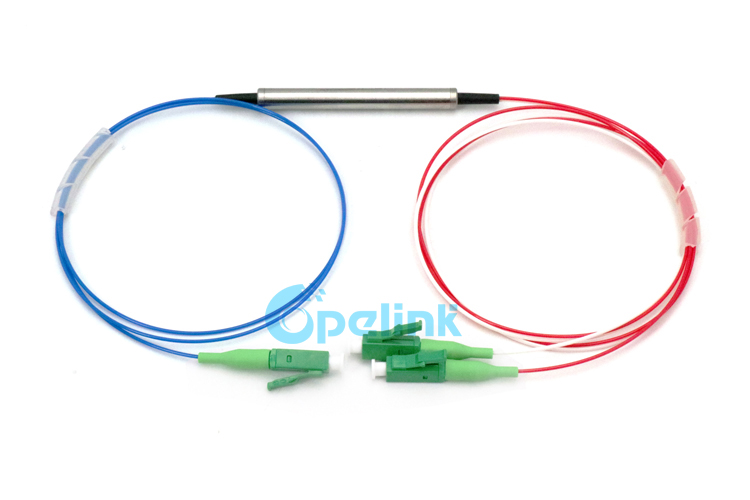

Fiber optic circulator is a special fiber optic device that is capable of separating optical power traveling in opposite
directions in one optical fiber. It can be used to achieve bi-directional transmission over a single fiber. Because
of its high isolation between the input and reflected optical power and its low insertion loss, optical circulator is
widely used in advanced communication systems and fiber-optical sensor systems.
| Type | Operating Wavelength | Fiber type | package | cable type | fiber length | connector （Input-Output） |
| 3=3port 4=4port |
13=1310nm 15=1550nm 16=1585nm CL=C+L Band 1525~1610nm |
S1=G652D S2=G657A1 |
06=5.5x50mm Steel Tube 04=90x20x9.5mm Plastic Box |
B=250um Bare Fiber L=900um Loose Tube 2=2.0mm 3=3.0mm |
0.5M=0.5M 1M=1M XX=OTHER |
00=None FA=FC/APC FU=FC/UPC SA=SC/APC SU=SC/UPC ST=ST/UPC LU=LC/UPC |
| Parameter | Specification | |||
| Configuration | Port 1 to Port 2 to Port 3 | Port 1 to Port 2 to Port 3 to Port 4 | ||
| Operation Wavelength (nm) | 1310±30 or 1550±30 or 1585±30 | 1525 to 1610 | 1310±30 or 1550±30 | |
| I.L (dB) | Typical | 0.6 | 1.0 | 0.8 |
| Maximum | 0.8 | 1.2 | 1.0 | |
| Typical Isolation (dB) | 50 | 50 | 50 | |
| Minimum Isolation (dB) | 40 | 35 | 40 | |
| Cross Talk (dB) | ≥50 | ≥50 | ≥50 | |
| Polarization Dependent Loss (dB) | <0.15 | <0.2 | <0.2 | |
| Polarization Mode Dispersion | <0.1 | <0.1 | <0.1 | |
| Return Loss（dB） | ≥50 | ≥50 | ≥50 | |
| Power Handling (mW) | 300 | 300 | 300 | |
| Operating Temperature (℃) | -0~+70 | -0~+70 | -0~+70 | |
| Storage Temperature (℃) | -40~+85 | -40~+85 | -40~+85 | |
