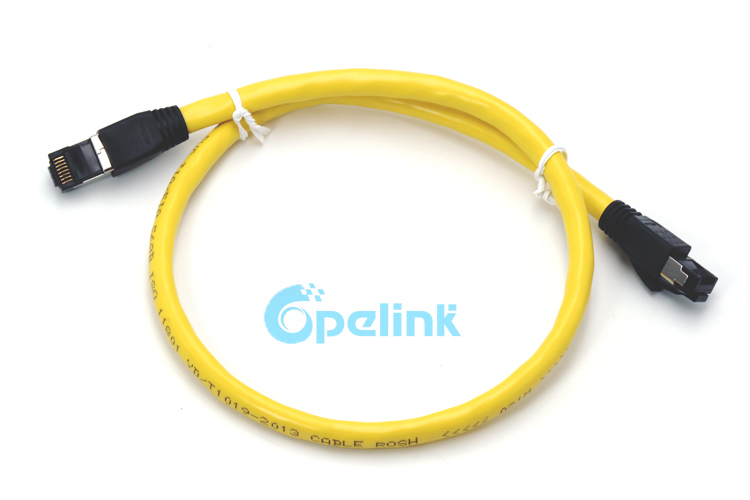

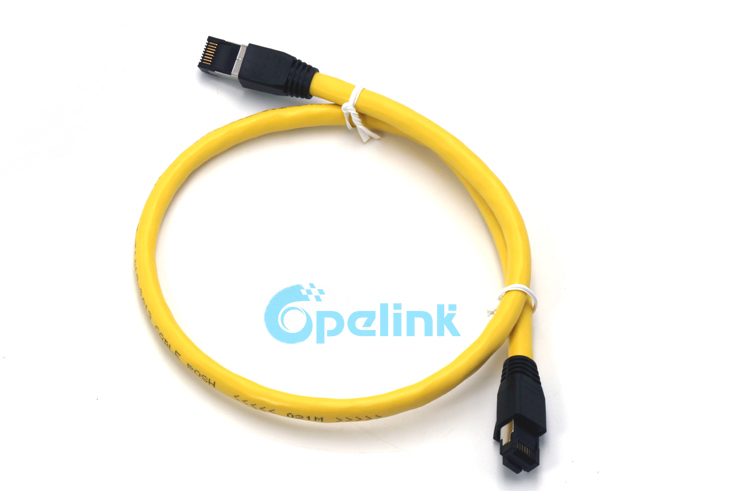

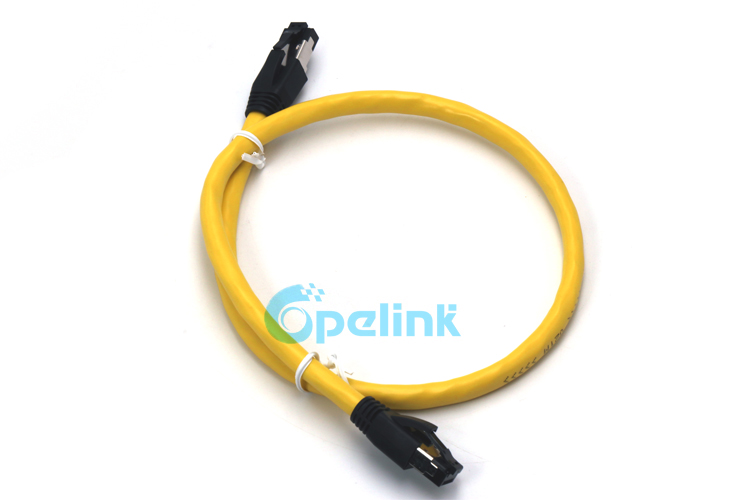

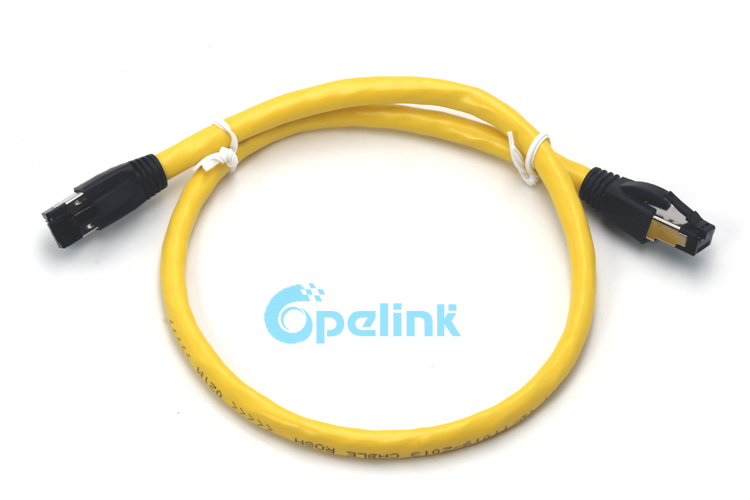

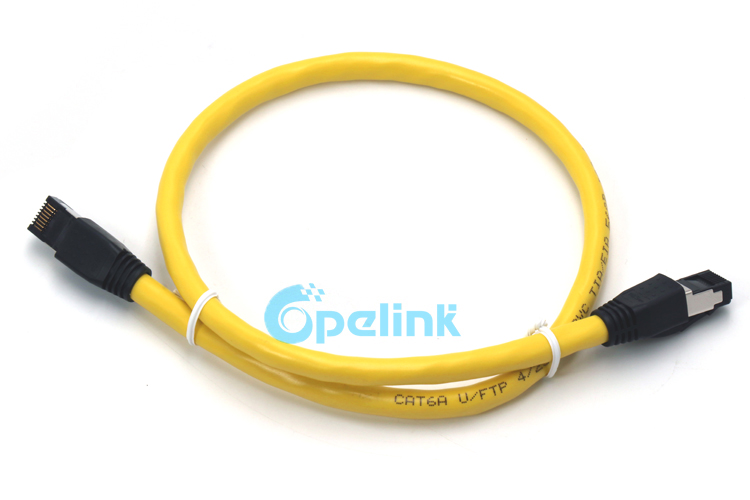

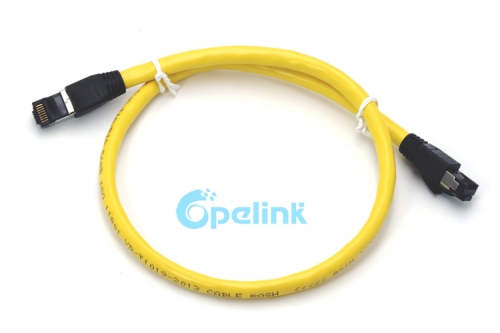

CAT6A FTP patch cord, High Speed Cat6a ftp Network Patch Cable

CAT6A FTP patch cord, High Speed Cat6a ftp Network Patch Cable

Name: CAT6A FTP patch cord, High Speed Cat6a ftp Network Patch Cable
Brand: OPELINK
SKU: CAT6A-FTP-01
Availability: InStock
Rating: 5 (1 reviews)

Item No.: CAT6A-FTP-01

CAT6A FTP Network Patch Cable supports up to 500MHz and speeds up to 10Gbps over 100 meters.100% copper for consistent, complies with ANSI/TIA-568-D Category 6 requirements.

INQUIRY

Description

The Shielded Cat6a patch cable is ideal for use with 10GBase-T ports and equipment, such as network adapters, hubs, switches, routers, DSL/cable modems and patch panels, and will protect a high speed 10 Gigabit network connection from noise and electromagnetic interference. For voice/data/video distribution, this cable will handle bandwidth-intensive applications and drastically reduces both impedance and structural return loss (SRL). Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements.

Product Details

Cable Type	Cat6a FTP	Shielding Type	Shielded (FTP)
Cable Jacket	LSZH/PVC	Length	Customization
Data Rate Support	10GBase-T	Maximum (Tested) Frequency	550MHz
Conductor Type	Pure Bare Copper	Connectors	RJ45 (Male)
Max Transmission Distance	100m	Wire Scheme	T568B, Straight
Operating Temperature	-20 to +75°C (-4 to 167°F)	Installation Temperature	-10 to +50°C (14 to 122°F)

Product Features
.Exceed ANSI/TIA-568-D.2 Category 6A and ISO 11801 Class E Standards
.Up to 550MHz with 10G-T Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)
.FTP Cable Minimizes EMI and RFI Interference
.Performance Tested with Fluke and Wired T568B
.Strain Relief and a Flexible Boot Simplify Moves, Additions and Changes
.Use in Patch Panel or Equipment Connections in Enterprise Networks and Data Center
.Support Current and Future Category 6a/6/5e/5 Applications

CAT6A FTP patch cord, High Speed Cat6a ftp Network Patch Cable
