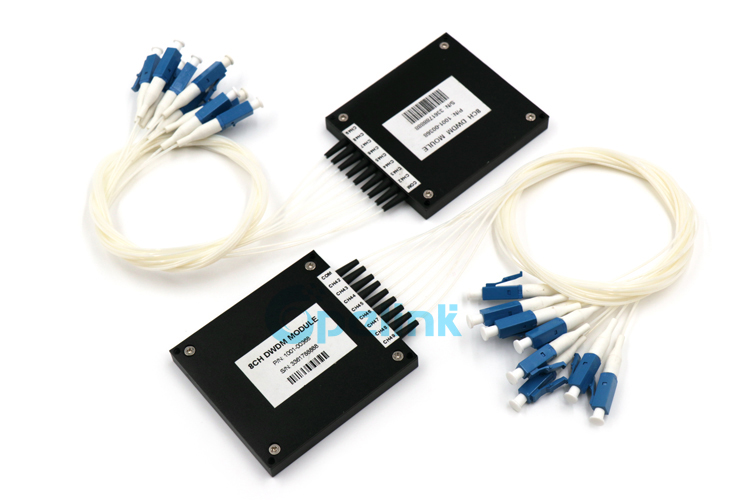

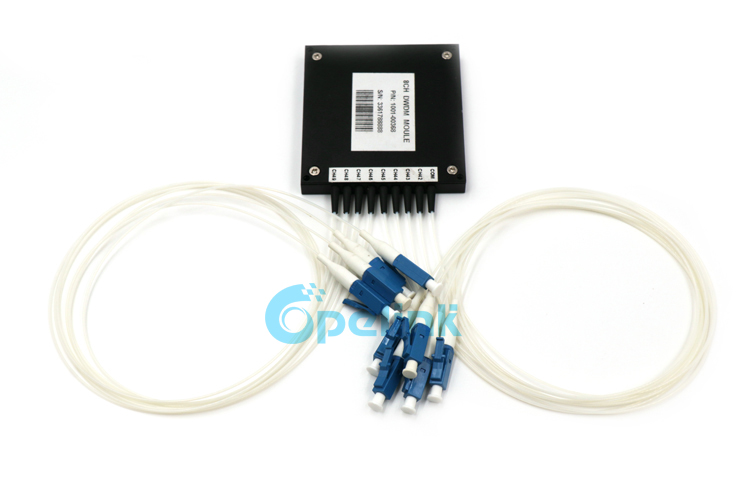

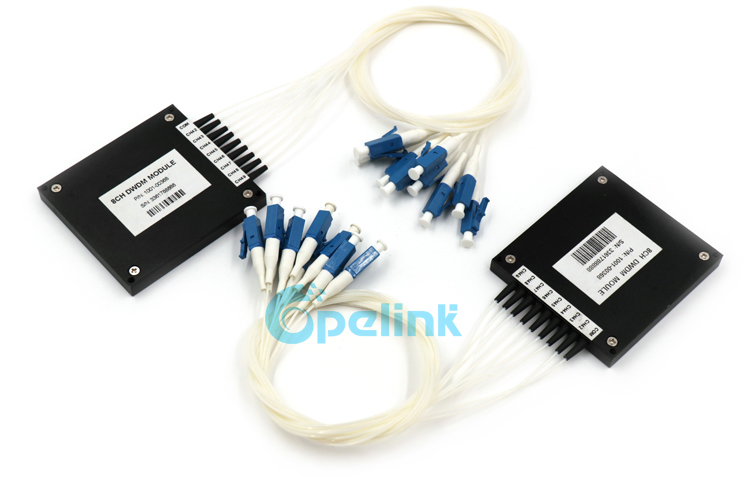

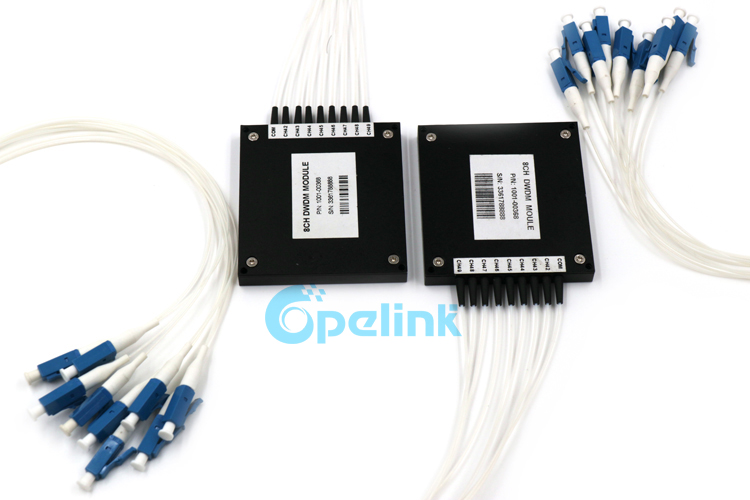

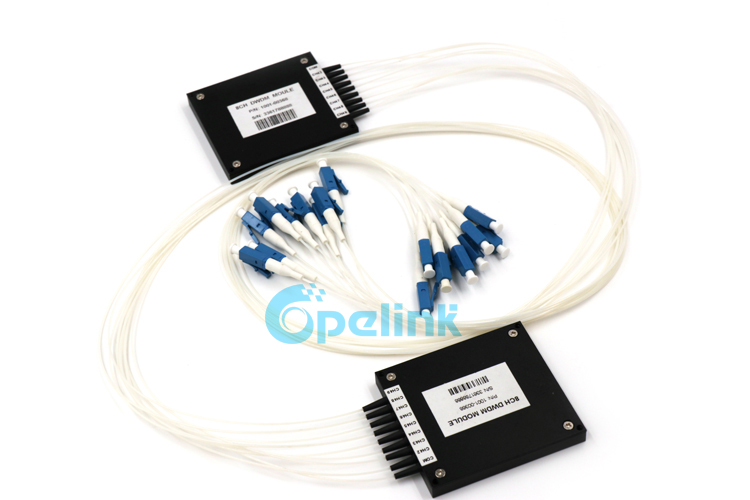

8CH MDWDM Module, 0.9mm LC/PC Metal Box Mux/Demux Optical Mini DWDM

Item No.: Y-FO-WD-020
MDWDM as called MINI DWDM, it is a Technology That Puts Data Different Sources Together on an Optical Fiber,with Each Signal Carried at the Same Time on Its Own Separate Light Wavelength
Description Parameters Company Profile Related Product
Description:
MDWDM(Dense Wavelength Division Multiplexing)is a Technology That Puts Data Different Sources Together on an Optical Fiber,with Each Signal
Carried at the Same Time on Its Own Separate Light Wavelength

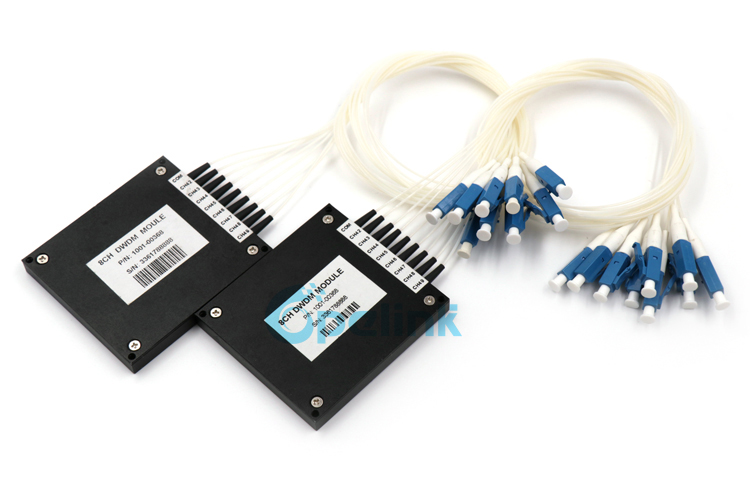

8CH MDWDM Module, LC/PC Metal Box Mux/Demux Mini DWDM
Features:
Low insertion loss, low PDL
High  Isolation
Compact  Design
Good channel-to-channel uniformity
High Reliability and Stability
Application:
Channel Add/Drop
DWDM Network
Wavelength Routing
CATV Fiber Optical System

Optical Specifications:
Parameter Value
Channels Number 2 4 8 16 32 40
Central Wavelength(nm) ITU-T Grid
Channel Spacing(GHZ 100/200
Bandwidth(nm) ITU-T ±0.11/ ITU-T ±0.25
I.L(dB) Typ. 1.2 1.6 2.2 3.2 3.8 5.2
MAX. 1.4 1.8 2.8 5.0 5.6 6.0
Ripple(dB) ≤0.5
PDL(dB) ≤0.10 ≤0.15 ≤0.20 ≤0.25 ≤0.30 ≤0.30
Isolation(dB) Adjacent Channel ≥25
Non-adjacent Channel ≥45
Directivity(dB) ≥50
R.L(dB) ≥45
Operating Temperature(℃) -5~+75

Storage Temperature(℃)
-40~85
Note: All the data above does not include connectors
