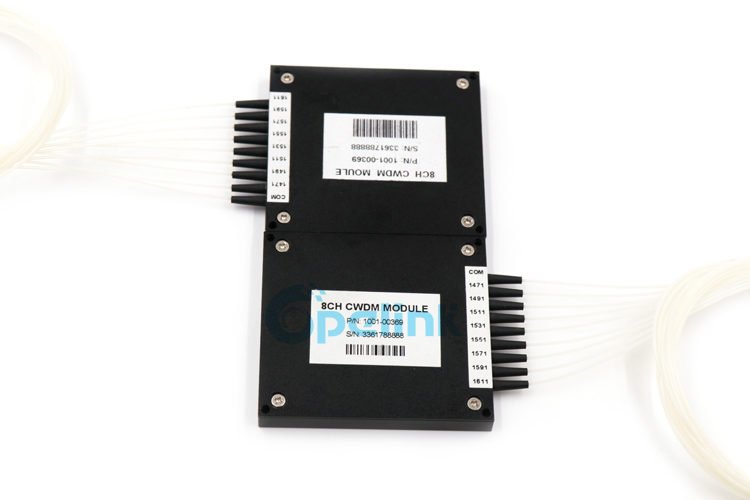

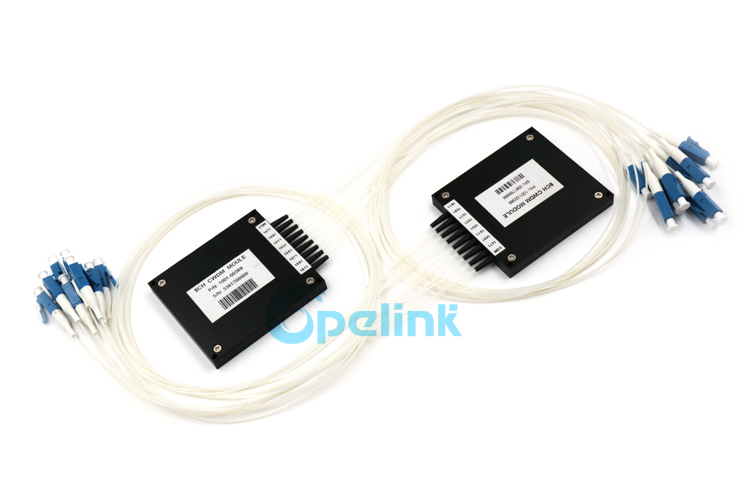

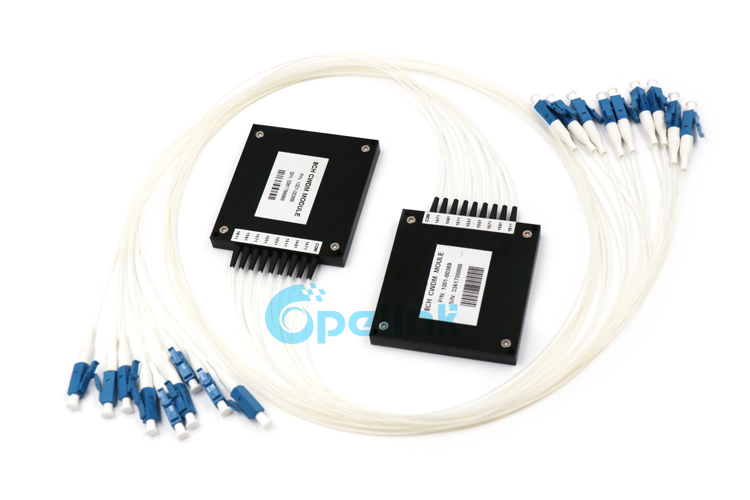

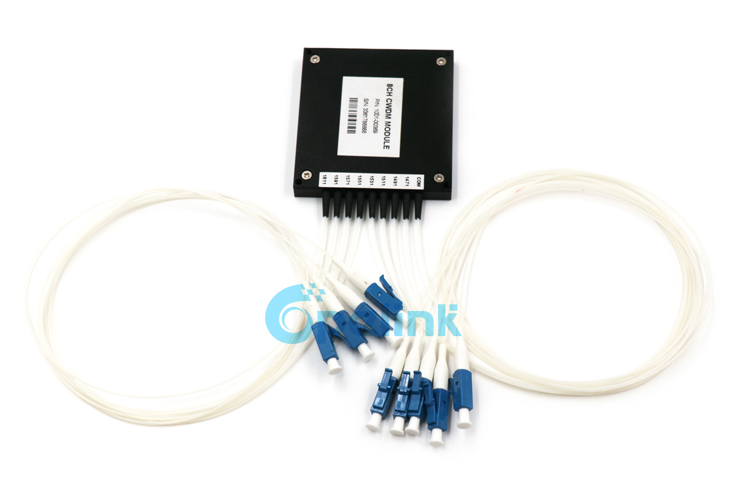

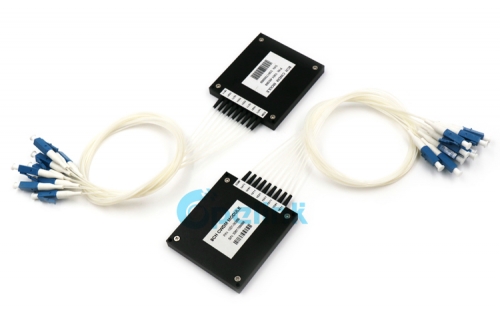

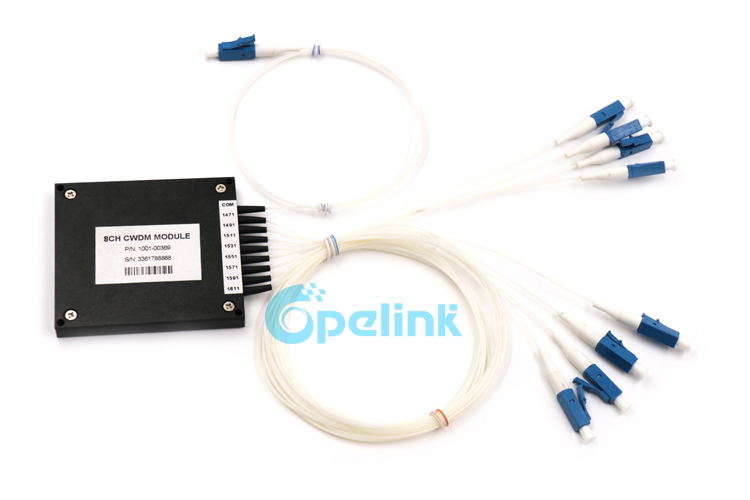

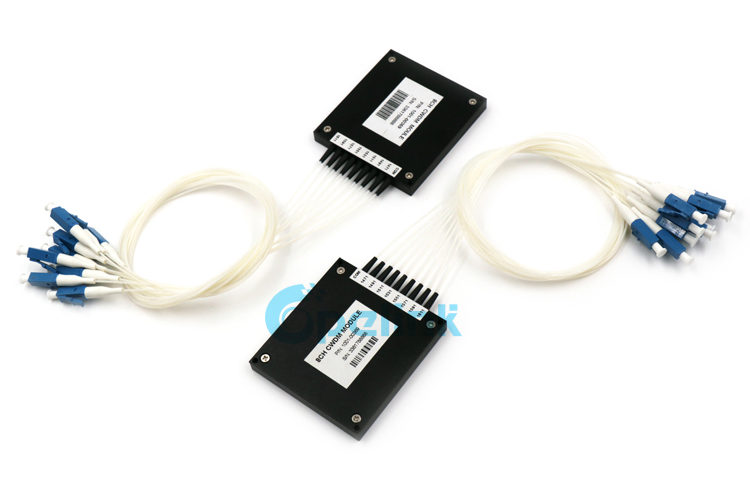

8CH MCWDM Module, 0.9mm LC/PC Metal Box Mux/Demux Optical Mini CWDM

Item No.: Y-FO-WD-021
MCWDM as called MINI CWDM, CWDM Utilizes Thin Film Coating Technology and Proprietary Design of Non-flux Metal Bonding Micro Optics Packaging.
  • Brand Name: OPELINK
  • Place of Origin: Guangdong, China
  • Product name: MCWDM Module
  • Low Price: 126.34 USD
  • Description Parameters Company Profile Related Product
    Description:
    Coarse Wavelength Division Multiplexer (CWDM) Utilizes Thin Film Coating Technology and Proprietary Design of
    Non-flux Metal Bonding Micro Optics Packaging.
    The CWDM MUX + DEMUX over dual fiber is a universal device capable of coming up to 18 optical signals into a fiber
    pair. It can support up to 18 CWDM wavelengths between ITU-T G.694.2 1270 nm to 1610 nm in 20 nm increments or
    ITU-T G.652 1270 nm and 1290 nm

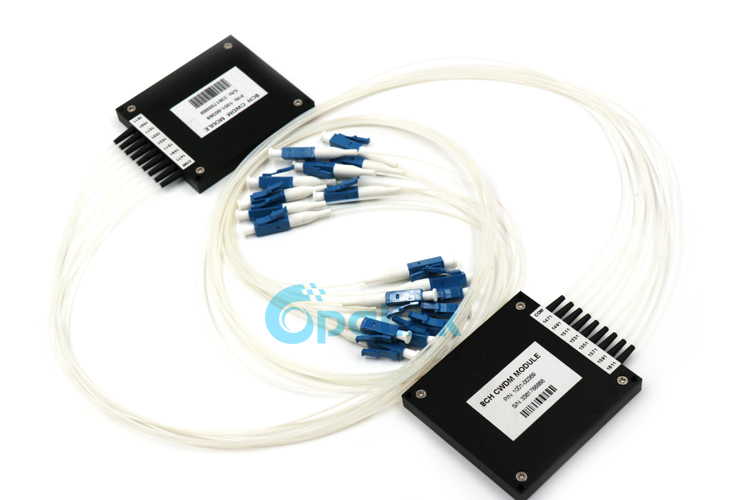

    8CH MCWDM Module, LC/PC Metal Box Optical Mini CWDM
    Features:
    Low insertion loss, low PDL
    High  Isolation
    Compact  Design
    Good channel-to-channel uniformity
    High Reliability and Stability
    Compliance with Telcordia GR-1221/1209

    Application:
    CWDM System
    PON NET Works
    CATV LINKS


    Optical Specifications:
    Parameter Value
    Channels Number 2 4 8 16 18
    Central Wavelength(nm) ITU-T Grid
    Bandwidth(@0.5dB Pass band)(nm) ITU-T ±6.5
    Channel Pass band(nm) 20
    I.L(dB) Typ. 1.2 1.6 2.2 3.2 3.8
    MAX. 1.4 1.8 2.8 5.0 5.6
    Ripple(dB) ≤0.3
    PDL(dB) ≤0.10 ≤0.15 ≤0.20 ≤0.25 ≤0.30
    Isolation(dB) Adjacent Channel ≥30
    Non-adjacent Channel ≥45
    Directivity(dB) ≥50
    R.L(dB) ≥45
    Operating Temperature(℃) -5~+75
    Storage Temperature(℃) -40~85
    Note: All the data above does not include connectors
