6CH Optical DWDM Module, 0.9mm LC/PC ABS BOX DWDM Mux / Demux Module with Express port

Item No.: Y-FO-WD-053
6CH Optical DWDM Module, Mux Demux DWDM Module with Express port, Standardized and large-scale production, high reliability and stability.
Description Parameters Company Profile Related Product
Description:
DWDM(Dense Wavelength Division Multiplexing)is a Technology That Puts Data Different Sources Together on an Optical Fiber,with Each Signal
Carried at the Same Time on Its Own Separate Light Wavelength

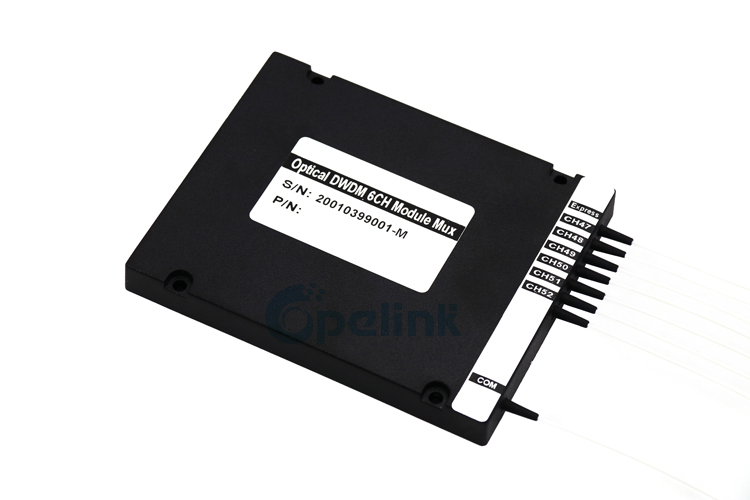

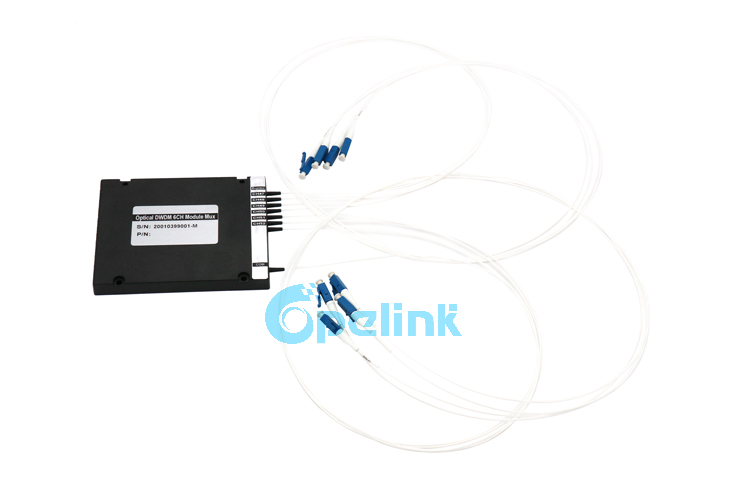

6CH LC/PC ABS BOX Optical DWDM Module, Mux / Demux Module with Express port
Features:
Low insertion loss, low PDL
High  Isolation
Compact  Design
Good channel-to-channel uniformity
High Reliability and Stability
Application:
Channel Add/Drop
DWDM Network
Wavelength Routing
CATV Fiber Optical System

Order Information:
Type Channel Passband Upgrade Port Port First
Channel
Pigtail Fiber Length Connector
(Input-Output)
Package
M=Mux
D=Demux
M+D=Mux+ Demux

1=100GHz
2=200GHz

U= Yes
0= No
1002=1X2   1004=1X4
1008=1X8
1016=1X16
XX=other
C21
C22
C23
(Refer to ITU Channel Table)
L=900um loose  tube
2=2.0mm
3=3.0mm
B= baare fiber
A= Adaptor
S1=G652D
S2=G657A1
X= other
0.5M=0.5M
1M=1M
X=other
SU=SC/UPC
SA=SC/APC
FU=FC/UPC
 FA=FC/APC
ST=ST/UPC
LA=LC/APC
LU=LC/UPC
 00=NONE
XX= Other
01,02,03,
04,05

H,L,U,G,X

 Packing Information:
1CH 2/4CH 8CH 16/18/40/48CH
05        01/L/G/U 02/L/G/U 03/L/H/G/U
04

 Package Dimension:
No. Dimension No. Dimension
05 Φ5.5×L38 Stainless steel tube 02 120× 80× 18 Plastic box
04 90 X 20 X 9.5 Plastic box L 150 × 115 × 18 Aluminum box
01 100 × 80 × 10  Plastic box W 150X65X16
H 150 × 115 × 18 Plastic box Y 127X70X11
B Φ5.0×L38 Stainless steel tube U 19’’x=1,2,3,4 U rack mount
G LGX box : 1G, 2G, 3G, 4G X Customized package
03 141× 115 × 18 Plastic box


Optical Specifications:
Parameter Value
Channels Number 2 4 8 16 32 40
Central Wavelength(nm) ITU-T Grid
Channel Spacing(GHZ 100/200
Bandwidth(nm) ITU-T ±0.11/ ITU-T ±0.25
I.L(dB) Typ. 1.2 1.6 2.2 3.2 3.8 5.2
MAX. 1.4 1.8 2.8 5.0 5.6 6.0
Ripple(dB) ≤0.5
PDL(dB) ≤0.10 ≤0.15 ≤0.20 ≤0.25 ≤0.30 ≤0.30
Isolation(dB) Adjacent Channel ≥25
Non-adjacent Channel ≥45
Directivity(dB) ≥50
R.L(dB) ≥45
Operating Temperature(℃) -5~+75

Storage Temperature(℃)
-40~85
Note: All the data above does not include connectors
