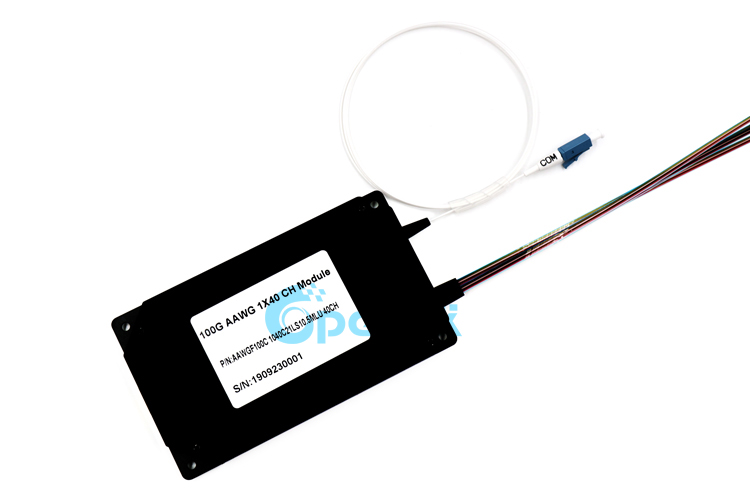

40CH 100G AAWG Module , Guassian AAWG , Flat-top Athermal AWG Standard Metal Box For DWDM Networks

Item No.: Y-FO-WD-002
Opelink Athermal AWG DWDM module is made using silicon planar technic.It adopts non-hear sensitive structure eliminating the need for chip temperture control. This product is of compact design, low insertion loss, low PDL, and high channel isolation.
Product parameters
Brand Name: OPELINK
Place of Origin: Guangdong, China
Product name: AAWG
Low Price: 350.0 USD
INQUIRY
Description Parameters Company Profile Related Product
Description:
Athermal AWG (Athermal Arrayed Waveguide Grating) Mux/DeMux Modules are part of a series of high performance products
based on silica-on-silicon planar technology.

It operates at 50GHz or 100GHz channel spacing ITU Grid DWDM wavelengths from 1526nm to 1565nm. The AAWG DWDM
can be used
 to replace the filter-type DWDM for cases where no power is available.




Features
Compact Package
Multi-channel Number

MUX/DEMUX Functionality
Telcordia GR-1209/1221 compliant
Athermal Design, Electrical Power is Not Required
Low Insertion Loss,Low PDL,High Channel Isolation

Applications
PON Networks
DWDM Transmission

Metro Area Networks
Long-haul Networks

Building Blocks for VMUX
Building Blocks for ROADM


Order Information

Filter Mode Channel Spacing Operating Band Channel Number First Channel Common Length Ribbon Fiber Length Connector Type
F=Flat-top
G=Gaussian
B=Broad Gaussian
100=100GHz
50=50 GHz
C=C Band
L=L Band
CL=C&L Band
X=Others
1016=
16 channel

1032=
32 Channels
1040=
40 Channels
1048=
48 Channels
XX=Others
C21=C21
C
22=C22
L71=L71
 …

(Refer to ITU Channel Table)
0.5M=0.5M
1M=1M
XX=OTHER

0.5M=0.5M
1M=1M
XX=OTHER

FU=FC/UPC
FA=FC/APC
SU=SC/UPC
SA=SC/APC
ST=ST/UPC
LU=LC/UPC
LA=LC/APC
00=None
X=Others














Specifications:
Parameters AAWG DWDM MUX/DEMUX
Channel Space (GHz) 50GHz 100GHz
Pass Band Type Flat-top Gaussian Flat-top
Central Wavelength ITU-T Grid
Grade Typ Min Typ Min Typ Min
Channel Number 80/96 32/40/48
Wavelength Accuracy (nm) ±0.04 ±0.05
Pass Band @1dB (nm) >0.2 >0.2 >0.4
Pass Band @3dB (nm) >0.4 >0.4 >0.6
Insertion Loss (dB) <7.0 <6.0 <4.0 <3.5 <6.5 <5.0
Adjacent Crosstalk (dB) >26 >26 >23
Non-Adjacent Crosstalk (dB) >26
Total Crosstalk (dB) >20 >21
Return Loss (dB) >40
Ripple (dB) <1.5 <0.5
Uniformity (dB) <1.5
Polarization Dependent Loss (dB) <0.7 <0.6 <0.5 <0.4
Polarization Mode Dispersion (ps) <0.5
Chromatic Dispersion (ps/nm) ±30 ±20
Operating Temperature (℃) -575
Storage Temperature (℃) -4085
Note:
1.All the data above does not include connectors.
2.For more details, please contact our sales.
