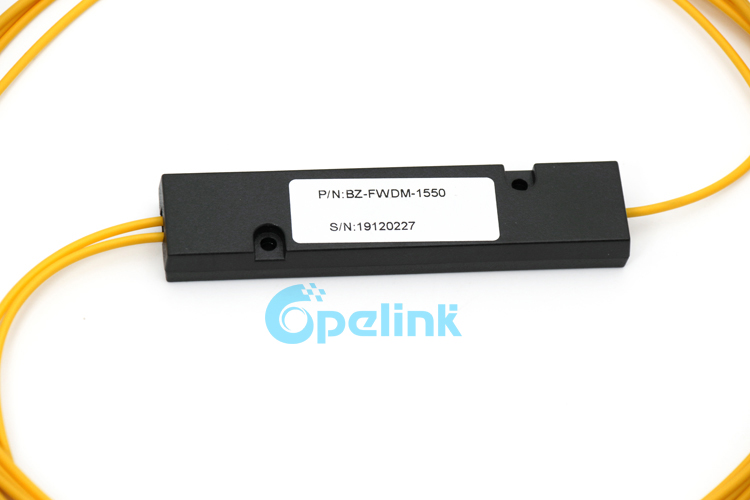

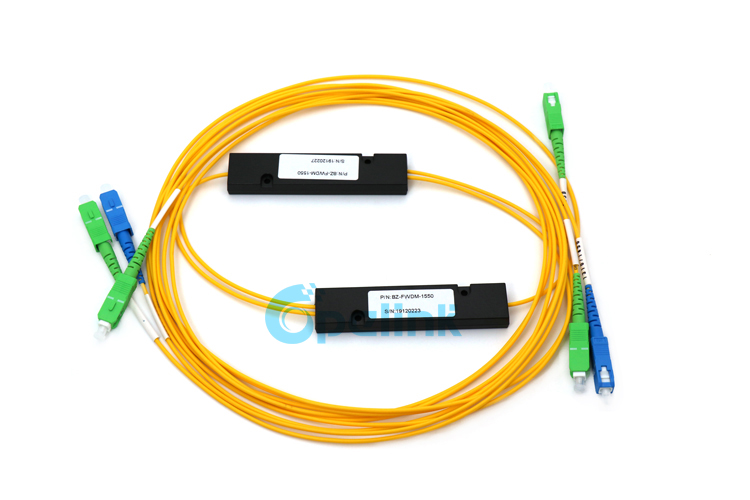

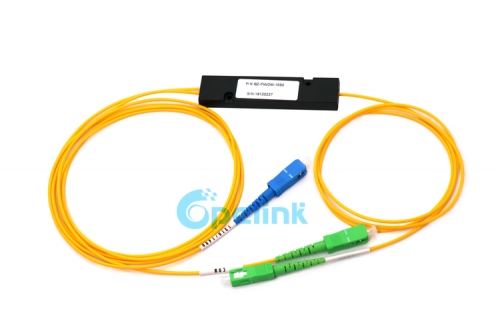

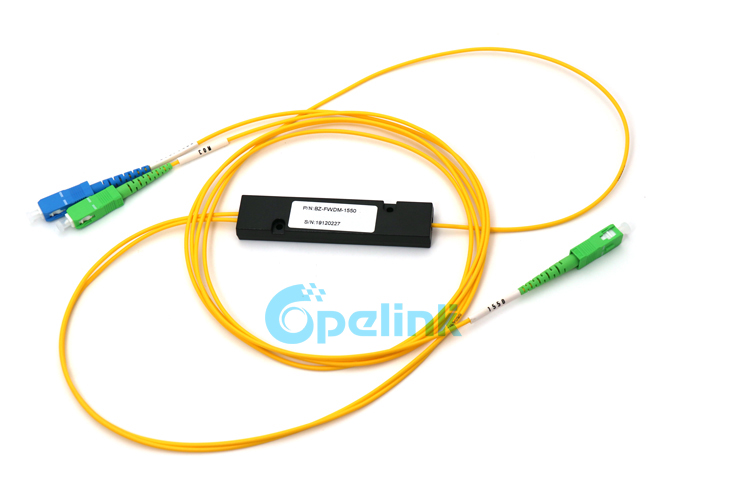

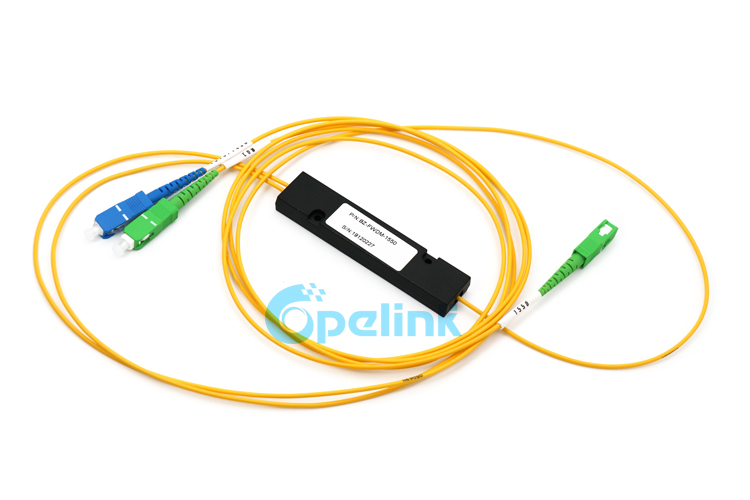

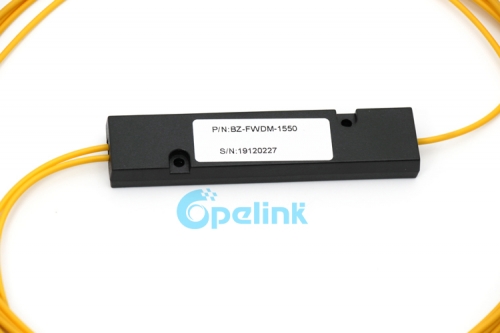

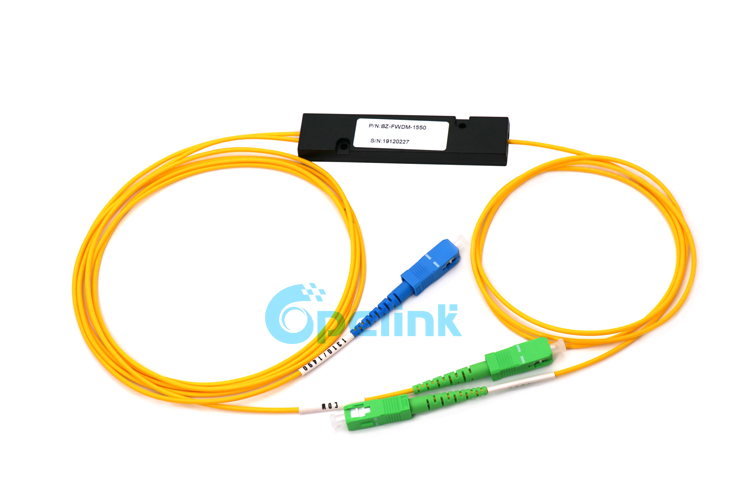

3 Port Filter Type WDM, 2.0mm LC/PC ABS BOX Optical Fwdm ,1550nm Wavelength

Item No.: Y-FO-WD-009
FWDM is a kind of WDM multiplexer based on the Thin Film Filter (TFF) technology. The FWDM combines or separates light at different wavelengths in a wide wavelength range and is extensively used in EDFA, amplifiers, and WDM optical networks
INQUIRY
Description Parameters Company Profile Related Product
Description:
Filter-based Wavelength Division Multiplexer (FWDM) is a kind of WDM multiplexer based on the Thin Film Filter (TFF) technology.

The FWDM combines or separates light at different wavelengths in a wide wavelength range and is extensively used in EDFA, Raman
amplifiers, and WDM optical networks.



Features:
Low Insertion loss
High Channel Isolation
Low Polarization Dependent Loss
Application:
Fiber Amplifier
CATV Fiber Optic Links
Long-hual,Metro,Access and FTTx
Order Information:
Product Type Fiber Type Package Dimension Pigtail Type Pigtail Length Connector
T5R34=T1550R1310/1490
T4R35=T1490R1310/1550
T3R45=T1310R1490/1550
T34R5=T1310/1490R1550

S1=G652D
S2=G657A1
05=5.5x38mm
Steel tube
04=90x20x9.5mm
Plastic Box
B=250um
Bare Fiber
L=900um
Loose Tube
2=2.0mm
3=3.0mm
A=Adapter
05M=0.5M
10M=10M
X=Others
FU=FC/UPC
FA=FC/APC
SU=SC/UPC
SA=SC/APC
ST=ST/PC
LU=LC/UPC
LA=LC/APC
00=None
X=Others


Tags:
Fiber Optic PLC Splitter  | Optical CWDM/DWDM/AWG  | FTTH Drop Fiber Optic Cable  | Fiber Optic PatchCord/jumper/Patch cable  |
Fiber Optic Fast Connector  | Optical Switch  | Fiber Optic Adapter  | Fiber Optic Attenuator  | Fiber Optic Cable TerminalBox |

Optical Specifications:
 Parameter  FWDM T4/R35  FWDM T5/R34  FWDM T3/R45  FWDM T34/R5
 Pass Band Wavelength Range (nm)±10  1480~1500  1540~1560  1260~1360  1260~1360 & 1480~1500
 Reflection Band 1 Wavelength Range(nm)±10  1260~1360  1260~1360  1480~1500  1540~1560
 Reflection Band 2 Wavelength Range (nm)±10  1540~1560  1480~1500  1540~1560
 Insertion Loss(dB)  Reflect Channel  ≤0.6
 Pass Channel  ≤0.8
 Insertion Loss Variation(dB)  <0.3
 Isolation(dB)  Pass Channel  >15
 Reflect Channel  >30
 Inertion Loss Temperature Sensitivity(dB/ºC)  <0.005
 Polarization Dependent Loss(dB)  <0.1
 Polarization Mode Dispersion(ps)  <0.1
 Directivity(dB)  >50
 Return Loss(dB)  >50
 Maximum Power Handling(mW)  500
 Opterating Temperature(ºC)  -20~+70
 Storage Temperature(ºC)  -40~+85
1.Above specifications are for devices without connector.
2.For more details, please contact our sales.
