2X9 SC/APC Plastic ABS Box Fiber Optic PLC Splitter

Item No.: Y-FO-FS-008
Fiber optic PLC Splitter is called Optical Splitter. Our PLC Splitter has wide operating wavelength range and good channel-to channel uniformity, and is widely used in GPON Net, FTTH Net.
  • Brand Name: OPELINK
  • Place of Origin: Guangdong, China
  • Product name: Fiber Optic PLC Splitter
  • Low Price: 7.60 USD
  • Description Parameters Company Profile Related Product
    Description:
    Fiber Optic PLC Splitter is Based on the Planar Waveguide Technology. It Provides a Low Cost Power Distribution Solution with
    Small Form Factor and High Reliability, wide operating wavelength range and good channel-to channel uniformity,
    and is widely used in PON net

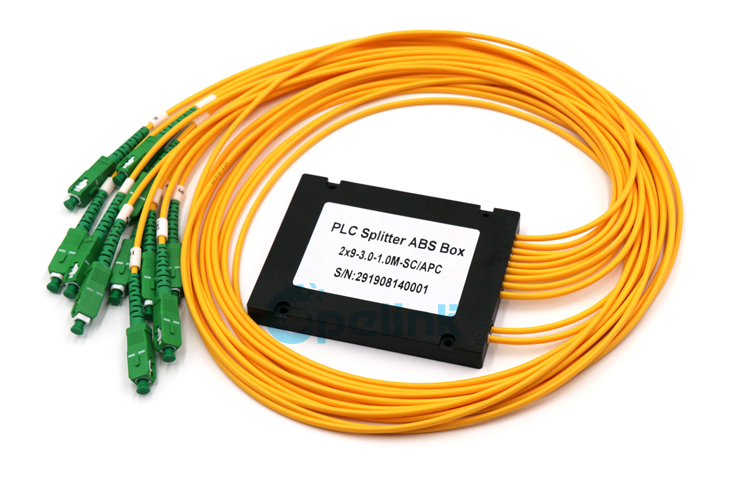

    This is a 2X9 Fiber Optic PLC Splitter product sold by OPELINK. The ABS BOX package ensures the safety of the PLC Splitter, and the SC/APC SM Pigtail provides excellent transmission performance
    Features:
    Low Insertion loss
    Low PDL
    High Return Loss
    Uniform Power Splitting
    Compact Design
    Wide Operating Wavelength
    Wide Operating Temperature
    Excellent Environmental & Mechanical Stability
    Qualified Under Telcordia GR-1221 and GR-1209


    Applications:

    FTTx (FTTB, FTTH, FTTC)
    Passive Optical Networks (PON)
    Local Area Networks (LAN)
    CATV Systems
    Test Equipments


    Ordering Information:
    Structure Package
    Type
    Pigtail In Pigtail Out Connector Fiber Core Pigtail Length Package
    1002=1X2  1004=1X4 1032=1X32
    1064=1x64
    2002=2X2  2004=2X4
    2008=2X8  2032=2X32
    2064=2X64
    xxxx=other
    M= Miniature Package
    B= Box package
    R= Rack Mount
    P= Blade Package
    B=250um bare  fiber
    L=900um loose  tube
    2=2.0mm
    3=3.0mm
    A=Adaptor
    XX= other
    B=250um bare  fiber
    L=900um loose  tube
    2=2.0mm
    3=3.0mm
    A=Adaptor
    XX= other
    SU=SC/UPC   SA=SC/APC
    FU=FC/UPC    FA=FC/APC
    ST=ST/UPC    LA=LC/APC
    LU=LC/UPC    00=NONE
    XX=other
    S1=G652D
    S2= G657A1
    M5=50/125
    M6=62.5/125
    M3=OM3
    M4=OM4
    XX=other

    0.5M=0.5M
    10M=10M
    XXX=other

    S1,S2...S12
    01,02,03,04
    U,G,X
    Package Size:
    Plastic Box package/mm Miniature Package/mm Blade Package/mm Rack Mount/mm
    01=100X80X9            02=120X80X18
    03=140X114X18         04=90x20x9.5
    XX= other
    S1=40X4X4
    S2=45X4X4
    S3=45X4.5X4
    S4=50x7x4
    S5=60X7X4
    S6=60X12X4
    S7=65X7X4
    S8=80X12X4
    S9=80X20X6
    S10=90x20x6
    S11=100x40x6
    S12=55x7x4
    21=130X100X25            24=130X100X206
    22=130X100X50            25=130X100X284
    23=130X100X102          26=130X100X76
    XX= other
    XU=19 Rack Mount (X=1,2,3,4,)
    31=R Type Mount Box
    32=Wall-Mount Type
    33=ODF Type
    XX= other


    Specifications:
     Parameter  Value
     Product Type  1×2/2x2  1×4/2x4  1×8/2x8  1×16/2x16  1×32/2x32  1×64/2x64  1×128/2x128
     Wavelength(nm)  1260~1650
     I.L(dB)  Typ.  3.6/4.2  7.1/7.2  10.4/10.6  13.6/13.8  17.2/17.5  20.1/20.5  25.0/25.2
     Max.  4.3/4.5  7.4/7.6  10.7/11.0  14.0/14.8  18.0/18.0  21.5/21.5  25.8/25.8
     Uniformity(Max.)(dB)  0.5/0.8  0.8/1.0  1.0/1.2  1.4/1.5  1.6/1.8  2.0/2.5  2.6/3.0
     PDL(Max.)(dB)  0.2/0.2  0.3/0.3  0.3/0.3  0.3/0.3  0.3/03  0.5/0.5  0.8/1.0
     TDL(Max.)(dB)  0.5
     R.L(dB)  ≥50(APC)/≥50(UPC)
     Directivity(dB)  ≥55
     Operating & Storage
     Temperature
     -40~+85

     Note:

     1. All the data above does not include connectors.
     2. UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.

     3. For more details, please contact our sales
