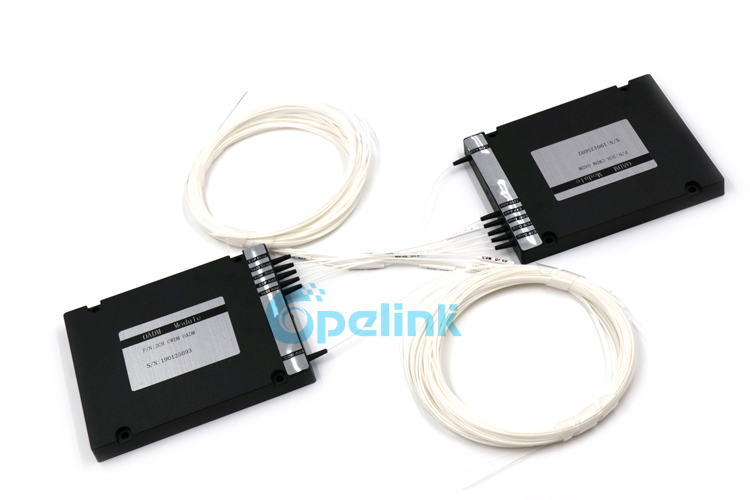

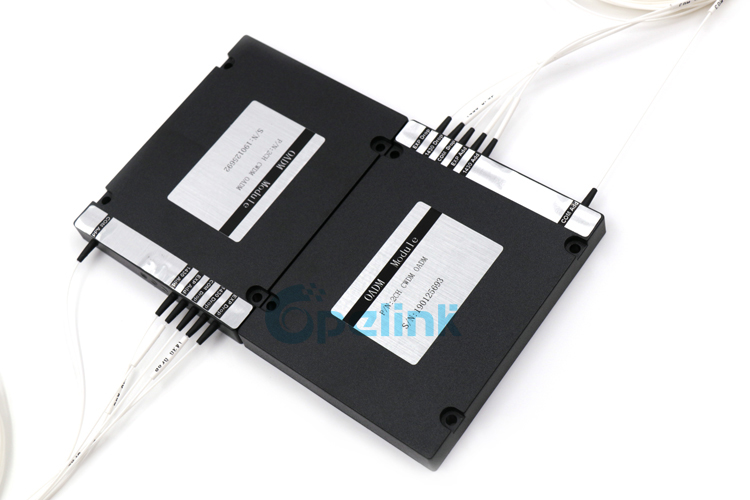

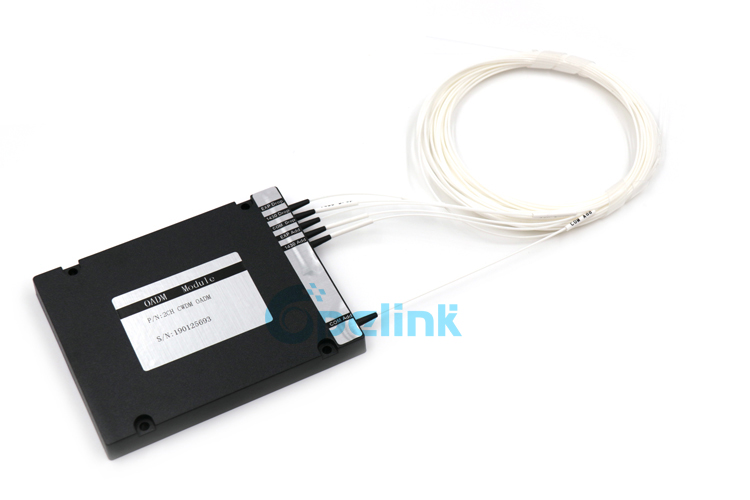

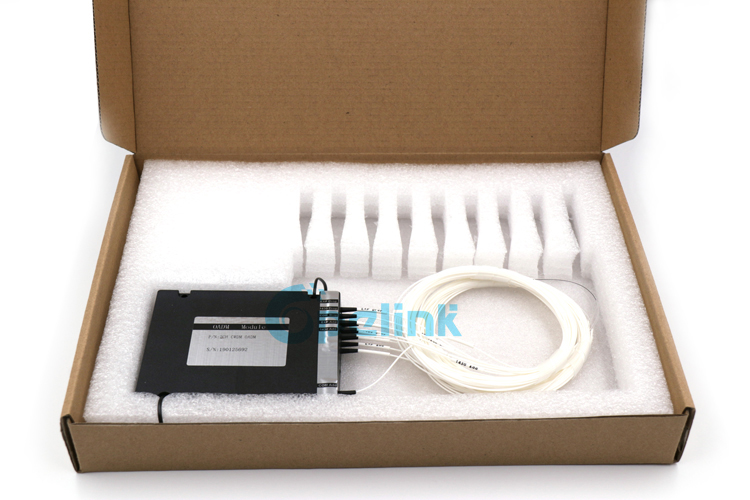

2CH Optical CWDM OADM Module without Connector

Item No.: Y-FO-WD-023
CWDM OADM is designed to optically add/drop one or multiple CWDM channels into one or two fibers.
INQUIRY
Description Parameters Company Profile Related Product
Description:
CWDM OADM is designed to optically add/drop one or multiple CWDM channels into one or two fibers.  CWDM OADM Modules includes
1CH CWDM OADM, 2CH CWDM OADM, 4CH CWDM OADM, 8CH CWDM OADM, 16CH CWDM OADM. Available in Plastic ABS box,
19" Rack Mount or LGX module package. Whether your network has 1 or 2 cores of fiber, redundant network, ring or linear network design etc.

Features:
Low insertion loss, low PD
High  Isolation
Compact  Design
Good channel-to-channel uniformity
High Reliability and Stability


Application:
Line Monitoring
WDM Network
Telecommunication
Cellular Application
Fiber Optical amplifier



Optical Specifications:
Parameter 4 Channel 8 Channel 16 Channel
Channel Wavelengthnm 1260~1620
Channel Spacingnm 20
Channel Passband (@-0.5dB bandwidth)(nm) ±6.5
Insertion LossdB ≤1.5 ≤2.5 ≤3.5
Channel UniformitydB ≤0.6 ≤1.0 ≤1.5
Channel RippledB <0.3
IsolationdB Adjacent >30
Non-adjacent >40
Insertion Loss Temperature Sensitivity(dB/℃) <0.005
Wavelength Temperature Shifting(nm/℃) <0.002
Polarization Dependent LossdB <0.1
Polarization Mode Dispersionps <0.1
DirectivitydB 50
Return LossdB >45
Maximum Power HandlingmW 300
Operating Temperature(℃) -5~+75
Storage Temperature(℃) -40~+85
Note:For more details, please contact our sales
